SL-4U-GH510M-WB This item is no longer available.

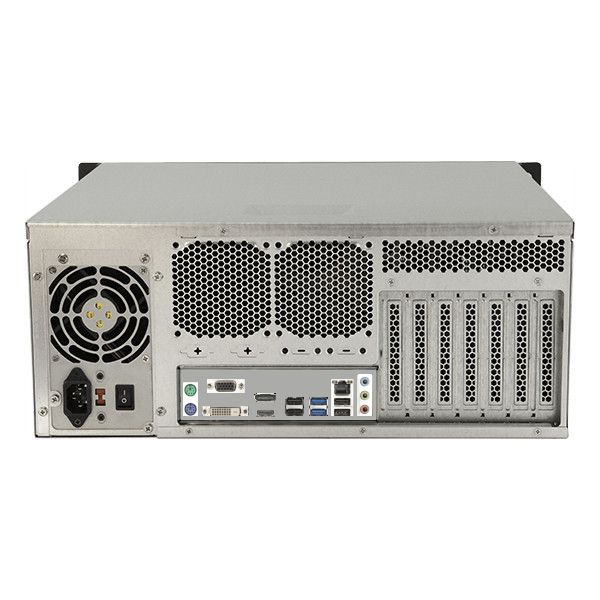

4U Rack Mount Industrial PC - Rackmount featuring Intel H510 Chipset, 10th/11th Gen Core i7/i5/i3 (LGA1200), 1x 1GbE (10/100/1000) LAN, 1x Serial, Up to 64GB RAM, 8x USB 2.0 Ports ( 4 Rear, 4 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear ), 3x Expansion Slots.
Type:
- 4U Rack Mount Industrial PC
- Depth: 17.50", Max Card Depth: 12.28 inches"
Motherboard:
- Featuring Intel H510 Chipset and 10th/11th Gen Core i7/i5/i3 (LGA1200) processor
- Full Height Slots:
1 - PCIe x16
2 - PCIe x1 - LAN: 1x Ports (1GbE (10/100/1000))
- Video: HDMI + DisplayPort + VGA + DVI-D
- Audio: Realtek® Audio CODEC
- Ports:
8x USB 2.0 Ports ( 4 Rear, 4 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear )
1x COM Port (RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Processor: G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W)
- Memory: 8GB DDR4 3200MHz RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 400W Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MicroATX
- Supported CPU
- Number of Processors: 1
- Processor Type: 10th/11th Gen Core i7/i5/i3 (LGA1200)
- Chipset
- Chipset: Intel H510 Chipset
- Memory
- Memory Type: DDR4 2666MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 64GB
- On Board Audio
- Audio Type: Realtek® Audio CODEC
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: HDMI + DisplayPort + VGA + DVI-D
- VGA Port Out: 1
- DVI-D Out: 1
- Display Port Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 1
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Realtek® RTL8118
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 4
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 1
- PCI Express x1 Slots On Motherboard: 2
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 1
- M.2 Slot #1 Specs
- M.2 SATA SSD
- PCIe Signal
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- Rear IO
- PS/2 Mouse on IO
- PS/2 Keyboard on IO
- USB 2.0 Ports (on IO): 4
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 4
- USB 3.2 Gen 1 Ports (on Headers): 2
- Serial (via Headers): 1
- FAN Connectors: 3
- Audio on Headers
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- Windows 10 IoT Value 2019 LTSC
- Windows 10 IoT Ent 2019 LTSC
- Windows 11 Home (64 Bit)
- Windows 11 Pro (64 Bit)
- Windows 11 Pro for WS (64 Bit)
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Other Features:
Expansion Slots
1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conforms to PCI Express 4.0 standard.)PCIe Gen 4 supported by Intel 11th Gen only.
2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 3.0 standard.)The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1
slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only.* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 4U Rackmount
- Front Changeable Air Filter
- Color: Black & Silver
- Material: Metal/Steel
- Material Thickness: 1.20mm
- Motherboard Compatibility: ATX
- Redundant Power Supply Capable
- Slide Rails: Optional
- Expansion
- Full Height Slots: 7
- Max Card Depth: 12.28 inches"
- External 5.25" Bays: 3
- Internal 3.5" Bays: 4
- External 3.5" Bays: 2
- Serial Port Punchouts: 2
- Front Ports
- USB 3.2 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 3
- Included Fans: 1
- Physical
- Depth: 17.50"
- Depth (Inches): 17.5
- Width: 16.90"
- Height: 7"
- Shipping Box - Depth: 23"
- Shipping Box - Width: 22"
- Shipping Box - Height: 12"
- Shipping Weight: 28lbs
- Compliance of Component
- RoHS
- Other Features
- Chassis Warranty: 1 Year
