SL-4U-MCX-C602SRE-WB-PCIX-1 This item is no longer available.
4U Rack Mount Industrial PC - Rackmount featuring Intel C602 Chipset, Xeon E5-2600v2 (LGA2011, 'Ivy Bridge EP'), 2x 1GbE (10/100/1000) LAN, 2x Serial, Up to 512GB RAM, 8x USB 2.0 Ports ( 2 Front, 2 Rear, 4 Internal Headers ), 6x Expansion Slots.
Type:
- 4U Rack Mount Industrial PC
- Depth: 17.50", Max Card Depth: 12.28 inches"
Motherboard:
- Featuring Intel C602 Chipset and Xeon E5-2600v2 (LGA2011, 'Ivy Bridge EP') processor
- Full Height Slots:
1 - PCIe x16
1 - PCIe x8
1 - PCIe x4
3 - PCIe x - LAN: 2x Ports (1GbE (10/100/1000))
- RAID: 0,1,5,10
- Video: VGA
- Audio: No Onboard Audio
- Ports:
8x USB 2.0 Ports ( 2 Front, 2 Rear, 4 Internal Headers )
2x COM Ports (1 RS232 Rear, 1 RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)
Also Included:
- Processor: E5-2603 v2 - 1.80GHz Intel Xeon Quad Core Processor - 10MB Cache (80W)
- Memory: 2 x 4GB DDR3 1600MHz ECC Registered RAM
- Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
- Power Supply: 400W Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty

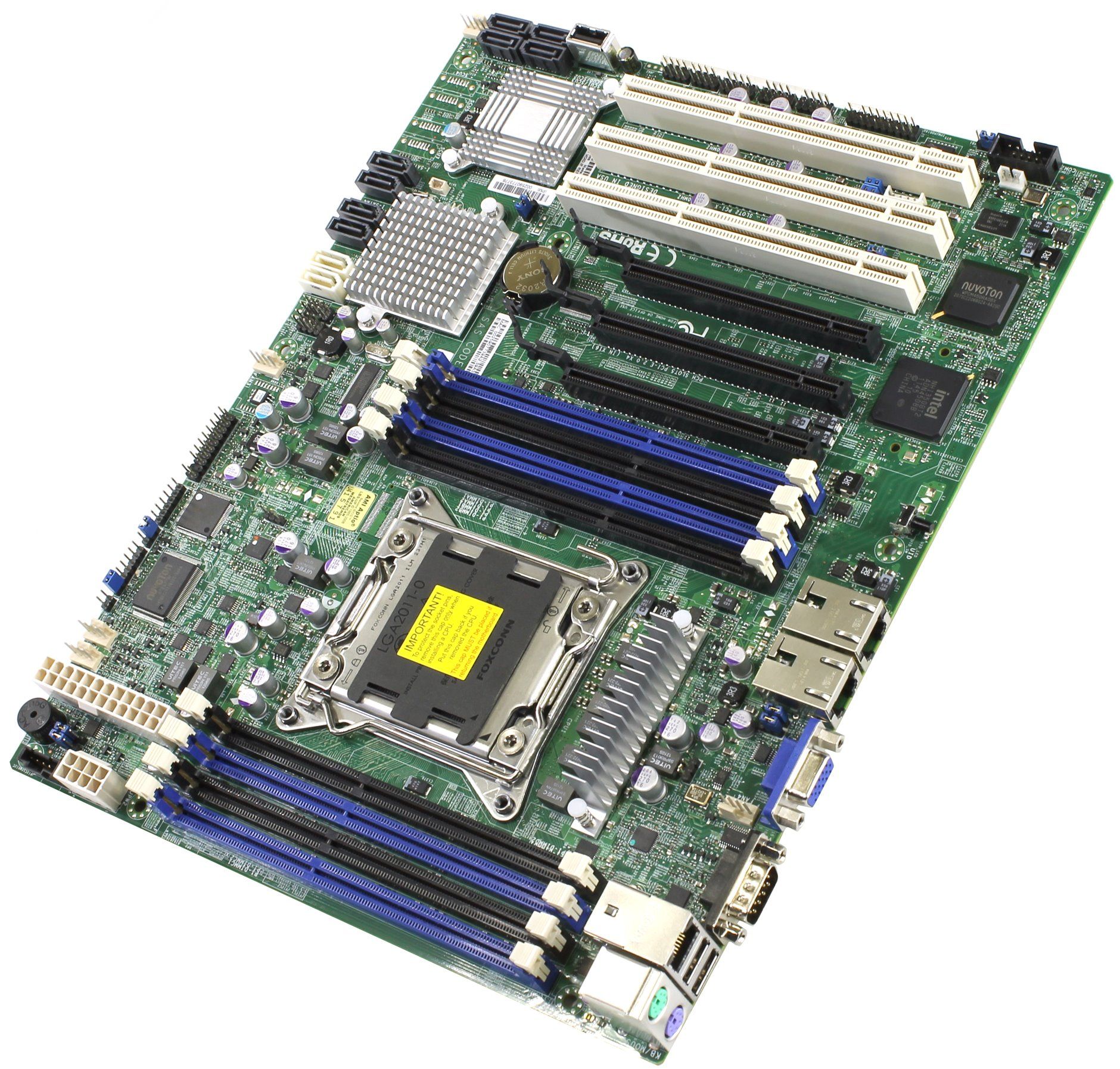

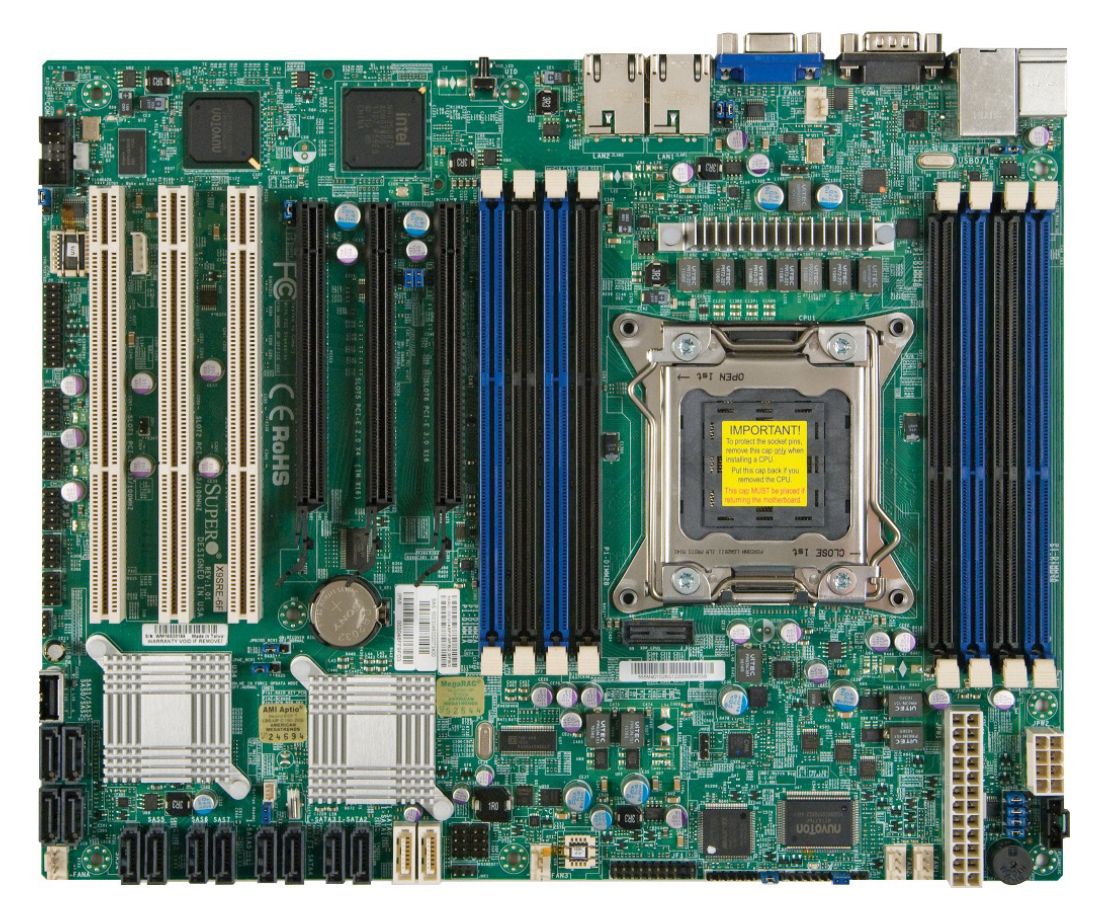

MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: ATX
- Supported CPU
- Number of Processors: 1
- Processor Type: Xeon E5-2600v2 (LGA2011, 'Ivy Bridge EP')
- Chipset
- Chipset: Intel C602 Chipset
- Memory
- Memory Type: DDR3 1600MHz ECCR
- Memory Type: ECC Registered
- DIMMS: 8
- Maximum Memory: 512GB
- On Board Audio
- Audio Type: No Onboard Audio
- On Board Video
- Video Chipset: Matrox G200eW
- Video on IO: VGA
- VGA Port Out: 1
- LAN
- LAN Ports: 2
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Intel® i350
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA II Ports (3GB): 8
- SATA III Ports (6GB): 2
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 1
- PCI Express x8 Slots On Motherboard: 1
- PCI Express x4 Slots On Motherboard: 1
- PCI-X Slots: 3

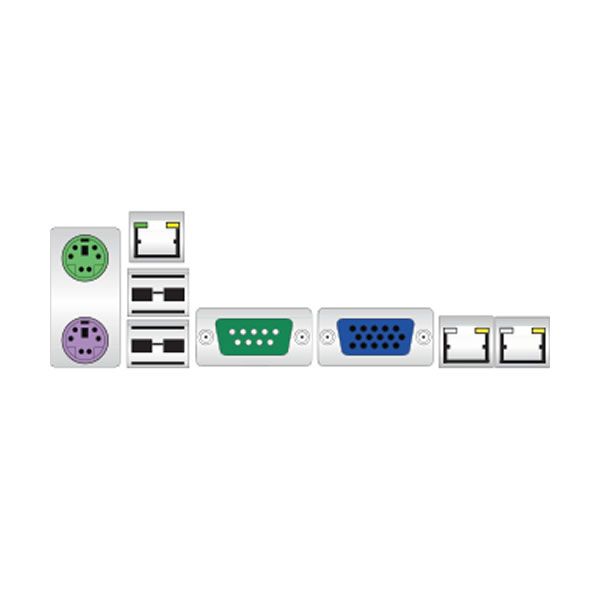

- Rear IO
- PS/2 Mouse on IO
- PS/2 Keyboard on IO
- USB 2.0 Ports (on IO): 2
- Serial (Rear IO): 1
- Headers
- USB 2.0 Ports (on Headers): 6
- USB 2.0 Ports (Type A): 1
- Serial (via Headers): 1
- FAN Connectors: 5
- DOM
- Chassis Intrusion
- TPM Support: Via 1.2 Header
- Management Features
- NMI
- Watch Dog
- Environmental
- Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
- High Humidity: 90%
- Low Humidity: 8%
- Operating System Support
- Windows 7 Ultimate (64-bit)
- Windows 7 Pro (32-bit)
- Windows 7 Pro (64-bit)
- Windows 7 Pro (FES) 64-Bit
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows 8.1 (32-bit)
- Windows 8.1 (64-bit)
- Windows 8.1 Pro (32-bit)
- Windows 8.1 Pro (64-bit)
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 IoT Ent
- Windows Server 2012
- RED HAT Enterprise LINUX SERVER STANDARD
- LINUX Ubuntu Desktop
- LINUX Ubuntu Workstation
- Ubuntu Server Edition
- Compliance of Component
- RoHS
- Other Features
- Other Features:
- 1 PCI-E 3.0 x16 slot
- 1 PCI-E 3.0 x8 (in x16) slot
- 1 PCI-E 2.0 x4 (in x16) slot
- 3 PCI-X 64bit 133/100 slots
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 4U Rackmount
- Front Changeable Air Filter
- Color: Black & Silver
- Material: Metal/Steel
- Material Thickness: 1.20mm
- Motherboard Compatibility: ATX
- Redundant Power Supply Capable
- Slide Rails: Optional
- Expansion
- Full Height Slots: 7
- Max Card Depth: 12.28 inches"
- External 5.25" Bays: 3
- Internal 3.5" Bays: 4
- External 3.5" Bays: 2
- Serial Port Punchouts: 2
- Front Ports
- USB 2.0 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 3
- Included Fans: 1
- Physical
- Depth: 17.50"
- Depth (Inches): 17.5
- Width: 16.90"
- Height: 7"
- Shipping Box - Depth: 23"
- Shipping Box - Width: 22"
- Shipping Box - Height: 12"
- Shipping Weight: 28lbs
- Compliance of Component
- RoHS
- Other Features
- Chassis Warranty: 1 Year
