SL-5U-W790SAGE-ST

Name: SL-5U-W790SAGE-ST
SKU: SL-5U-W790SAGE-ST

5U Rack Mount Workstation - Rackmount featuring Intel W790 Chipset, Intel® Socket LGA4677 for Xeon® W-3400 Series, 2x 10GbE + 10GbE + IPMI LAN, 1x Serial, Up to 2048GB RAM, 6x USB 2.0 Ports ( 2 Rear, 4 Internal Headers ), 2x USB 3.2 Gen 1 Ports ( 2 Front ), 4x USB 3.2 Gen 2 Ports ( 4 Rear ), 2x USB 3.2 Gen 2 Type-C Ports ( 1 Rear, 1 Internal Headers ), 7x Expansion Slots.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

5U Rack Mount Workstation
Depth: 20.87", Max Card Depth: Length: 455mm (without installing front fans and radiators)"

Motherboard:

Featuring Intel W790 Chipset and Intel® Socket LGA4677 for Xeon® W-3400 Series processor
Full Height Slots:
7 - PCIe x16
LAN: 2x Ports (10GbE + 10GbE + IPMI)
RAID: 0,1,5,10 and NVMe 0,1,5 RAID Intel VROC
Video: VGA
Audio: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
Ports:
6x USB 2.0 Ports ( 2 Rear, 4 Internal Headers )
2x USB 3.2 Gen 1 Ports ( 2 Front )
4x USB 3.2 Gen 2 Ports ( 4 Rear )
2x USB 3.2 Gen 2 Type-C Ports ( 1 Rear, 1 Internal Headers )
1x COM Port (RS232 Internal Headers)
See specifications for more ports
Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF)

Also Included:

Processor: Intel Xeon W3-2425 W-2400 Series CPU (6 Core) - 3.0 GHz (Up to 4.4GHz) - 15MB Cache (156W)
Memory: 4 x 16GB DDR5 4800MHz ECC Registered RAM
Hard Drive: 1TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO
Power Supply: 850W ATX12V / EPS12V Full Modular Power Supply - 80+ Gold Certified
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Technical Specifications

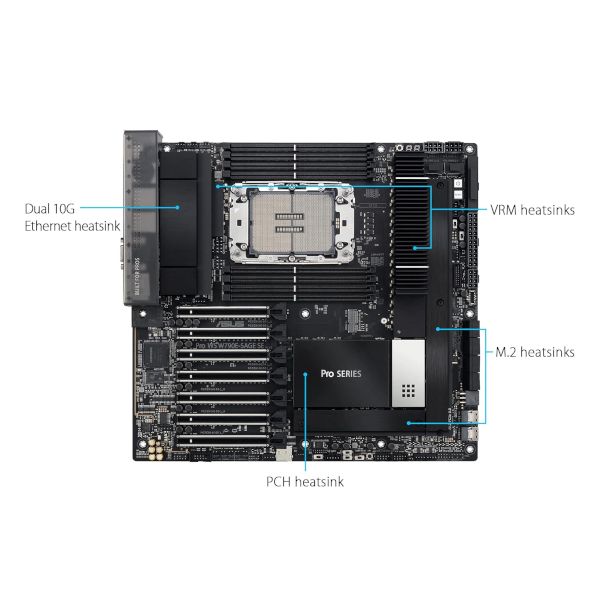

MotherBoard Specifications:

Motherboard Model
Motherboard Type: SSI EEB
Supported CPU
Number of Processors: 1
Processor Type: Intel® Socket LGA4677 for Xeon® W-3400 Series
Chipset
Chipset: Intel W790 Chipset
Memory
Memory Type: DDR5 4800MHz ECCR
Memory Type: ECC Registered
DIMMS: 8
Maximum Memory: 2048GB
On Board Audio
Audio Type: 8-Channel High Definition Audio CODEC Realtek® ALC S1220A
On Board Video
Video Chipset: ASPEED AST2600 BMC
Video on IO: VGA
VGA Port Out: 1
LAN
LAN Ports: 2
LAN Type: 10GbE + 10GbE + IPMI
LAN Chipset: Intel® 10Gb Ethernet
Second LAN Chipset: Intel® 10Gb Ethernet
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 8
RAID
RAID Type: Hardware RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 7
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 3
M.2 Slot #1 Specs
PCIe Signal
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
22110 - 22 mm x 110 mm.
M.2 Slot #2 Specs
PCIe Signal
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
22110 - 22 mm x 110 mm.
M.2 Slot #3 Specs
PCIe Signal
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
22110 - 22 mm x 110 mm.

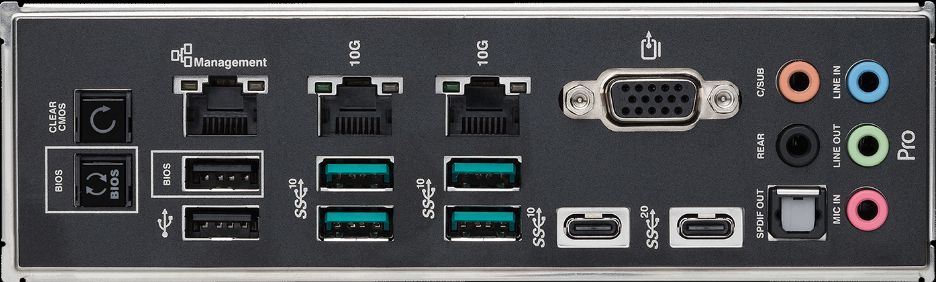

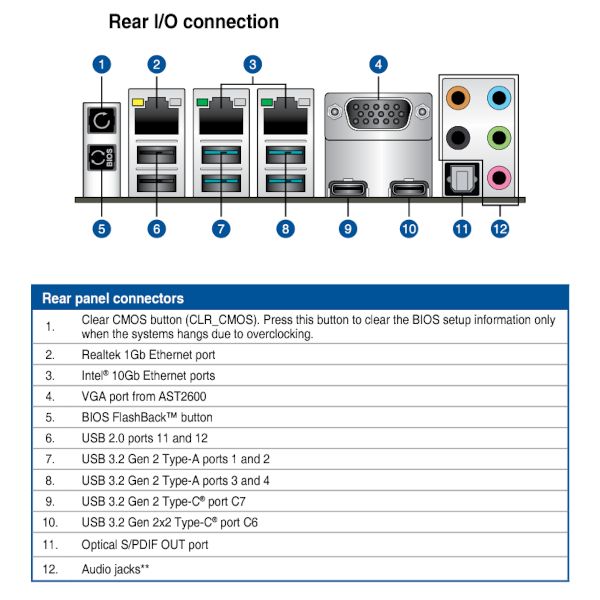

Rear IO
USB 2.0 Ports (on IO): 2
USB 3.2 Gen 2 Type A Ports (on IO): 4
USB 3.2 Gen 2 Type C Ports (on I/O): 1
USB 3.2 Gen 2x2 Type C Ports (on I/O): 1
SPDIF Connector: 1
Audio on IO
Headers
USB 2.0 Ports (on Headers): 4
USB 3.2 Gen 1 Ports (on Headers): 2
USB 3.2 Gen 2 Type-C (on Headers): 1
Serial (via Headers): 1
FAN Connectors: 7
Chassis Intrusion
TPM Support: Via 2.0 Header
Management Features
Watch Dog
Environmental
Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF )
High Humidity: 85%
Low Humidity: 10%
Operating System Support
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows 11 IoT 2024 LTSC High End
Compliance of Component
CE
RoHS
FCC
Other Features
Other Features:
Intel® Xeon^® W-3400 Series Processors*
7 x PCIe 5.0 slot(s) (Seven at x16/x16/x16/x16/x16/x8/x16)**
Intel® Xeon^® W-2400 Series Processors*
4 x PCIe 5.0 slot(s) (Four at x16/x16/x16/x16)**
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** Please refer to the block diagrams in the Appendix for more details.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Total supports 3 x M.2 slots, 2 x SlimSAS slots and 8 x SATA 6Gb/s ports*
Intel^® Xeon^® W-3400 Series Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)***
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)***
Intel^® W790 Chipet**
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
SlimSAS_1 port supports PCIe 4.0 x4 mode NVMe device
SlimSAS_2 port supports PCIe 4.0 x4 mode NVMe device
8 x SATA 6Gb/s ports
* Supports Intel^® Virtual RAID on CPU (Intel^® VROC) and Intel Volume Management Device (Intel^®VMD)
** Intel^® VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC_HW_Key is purchased separately.
*** M.2_1 and M.2_2 slots will be disabled once an Intel® Xeon^® W-2400 Series Processor is installed.

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year

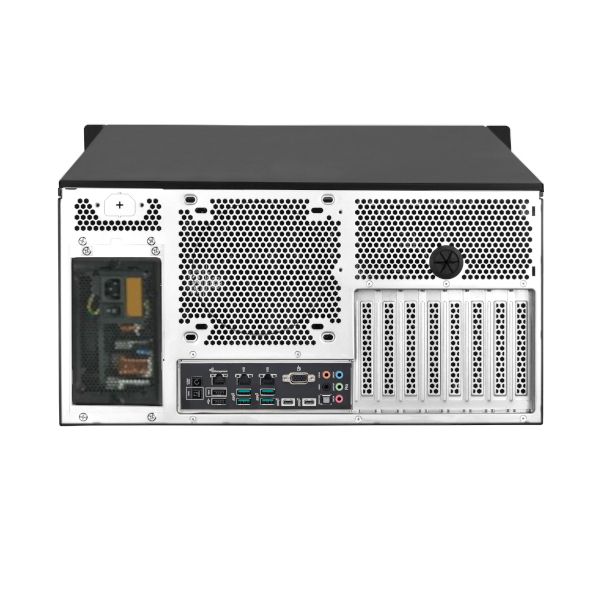

Chassis Specifications:

General
Form Factor: 5U Rackmount
Color: Black
Material: Metal/Steel
Material Thickness: 1mm
Motherboard Compatibility: SSI EEB
Redundant Power Supply Capable
Slide Rails: Optional
Expansion
Full Height Slots: 8
Max Card Depth: Length: 455mm (without installing front fans and radiators)"
Internal 3.5" Bays: 4
Internal 2.5" Bays: 4
Front Ports
USB 3.2 Ports (Front): 2
USB Type-C (Front): 1
Cooling System
Maximum Fan Count: 6
Included Fans: 3
Physical
Depth: 20.87"
Width: 17.30"
Height: 8.66"
Shipping Weight: 71lbs
Other Features
Features:
Expansion card
Length: 455mm (without installing front fans and radiators)
Width w/ expansion card retainer: 157mm
Width w/o expansion card retainer: 198mm

Limitation of CPU cooler
Height w/ expansion card retainer: 181mm
Height w/o expansion card retainer: 192mm

Limitation of PSU
160mm~190mm
(Removal of 3.5" drive cage eliminates PSU depth limitation)

Dimension
Incl. rear fan cage: 440mm (W) x 220mm (H) x 530mm (D), 51.3 liters
Excl. rear fan cage: 440mm (W) x 220mm (H) x 485mm (D), 46.95 liters
Incl. rear fan cage: 17.3" (W), 8.66" (H), 20.87" (D)
Excl. rear fan cage: 17.3" (W), 8.66" (H), 19.1" (D)
Chassis Warranty: 1 Year
