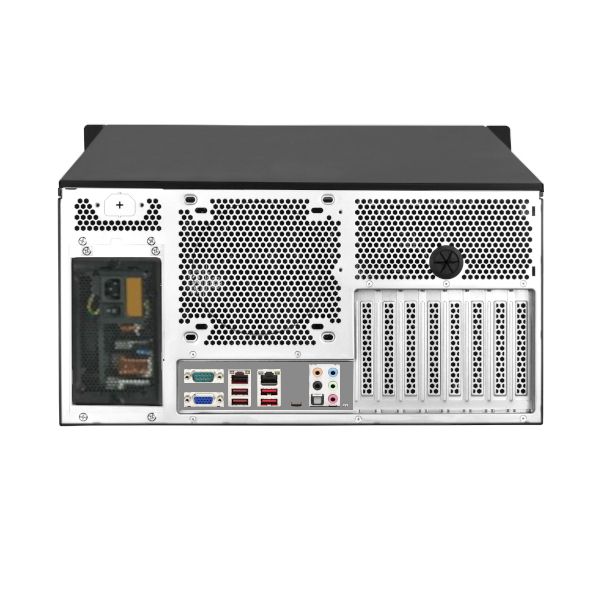

SL-5U-W790SRA-ST

Name: SL-5U-W790SRA-ST
SKU: SL-5U-W790SRA-ST

5U Rack Mount Workstation - Rackmount featuring Intel W790 Chipset, Intel® Socket LGA4677 for Xeon® W-3400 Series, 2x 1GbE + 10GbE LAN, 1x Serial, Up to 1500GB RAM, 2x USB 2.0 Ports ( 2 Internal Headers ), 2x USB 3.2 Gen 1 Ports ( 2 Front ), 4x USB 3.2 Gen 2 Ports ( 4 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers ), 4x Expansion Slots.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

5U Rack Mount Workstation
Depth: 20.87", Max Card Depth: Length: 455mm (without installing front fans and radiators)"

Motherboard:

Featuring Intel W790 Chipset and Intel® Socket LGA4677 for Xeon® W-3400 Series processor
Full Height Slots:
3 - PCIe x16
1 - PCIe x4
LAN: 2x Ports (1GbE + 10GbE)
RAID: 0,1,5,10 and NVMe 0,1 RAID Intel VROC
Video: VGA
Audio: Realtek ALC888S HD Audio
Ports:
2x USB 2.0 Ports ( 2 Internal Headers )
2x USB 3.2 Gen 1 Ports ( 2 Front )
4x USB 3.2 Gen 2 Ports ( 4 Rear )
1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers )
1x COM Port (RS232 Rear)
See specifications for more ports
Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

Processor: Intel Xeon W3-2425 W-2400 Series CPU (6 Core) - 3.0 GHz (Up to 4.4GHz) - 15MB Cache (156W)
Memory: 4 x 16GB DDR5 4800MHz ECC Registered RAM
Hard Drive: 1TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO
Add-In Graphic Card: NVIDIA Quadro T400 4GB 64-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 3 x Mini DisplayPort 1.4 - No Win 7 Support!
Power Supply: 850W ATX12V / EPS12V Full Modular Power Supply - 80+ Gold Certified
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: SSI CEB
Supported CPU
Number of Processors: 1
Processor Type: Intel® Socket LGA4677 for Xeon® W-3400 Series
Chipset
Chipset: Intel W790 Chipset
Memory
Memory Type: DDR5 4800MHz ECCR
Memory Type: ECC Unbuffered
DIMMS: 8
Maximum Memory: 1500GB
On Board Audio
Audio Type: Realtek ALC888S HD Audio
On Board Video
Video Chipset: ASPEED AST2600 BMC
Video on IO: VGA
VGA Port Out: 1
LAN
LAN Ports: 2
LAN Type: 1GbE + 10GbE
LAN Chipset: Intel® i210AT
Second LAN Chipset: Marvell AQC113 10Gbe
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 6
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 3
PCI Express x4 Slots On Motherboard: 1
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
PCIe Signal
22110 - 22 mm x 110 mm.
2280 - 22 mm x 80 mm.
M.2 Slot #2 Specs
PCIe Signal
2280 - 22 mm x 80 mm.
22110 - 22 mm x 110 mm.
Rear IO
USB 3.2 Gen 2 Type A Ports (on IO): 4
USB 3.2 Gen 2x2 Type C Ports (on I/O): 1
Serial (Rear IO): 1
SPDIF Connector: 1
Audio on IO
Headers
USB 2.0 Ports (on Headers): 2
USB 3.2 Gen 1 Ports (on Headers): 2
USB 3.2 Gen 2 Type-C (on Headers): 1
FAN Connectors: 5
Chassis Intrusion
TPM Support: Via 2.0 Header
Management Features
Watch Dog
Environmental
Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
High Humidity: 85%
Low Humidity: 10%
Operating System Support
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
Windows 10 IoT 2021 LTSC High End
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows 11 IoT 2024 LTSC High End
RED HAT Enterprise LINUX WORKSTATION STANDARD
RED HAT Enterprise LINUX SERVER BASIC
RED HAT Enterprise LINUX SERVER STANDARD
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
CE
RoHS
FCC
Other Features
Other Features:
PCIe
1 PCIe 4.0 x4,
3 PCIe 5.0 x16

M.2
M.2 Interface: 2 PCIe 5.0 x4, RAID 0 & 1
Form Factor: 22110, 2280
Key: M-Key

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year

Chassis Specifications:

General
Form Factor: 5U Rackmount
Color: Black
Material: Metal/Steel
Material Thickness: 1mm
Motherboard Compatibility: SSI EEB
Redundant Power Supply Capable
Slide Rails: Optional
Expansion
Full Height Slots: 8
Max Card Depth: Length: 455mm (without installing front fans and radiators)"
Internal 3.5" Bays: 4
Internal 2.5" Bays: 4
Front Ports
USB 3.2 Ports (Front): 2
USB Type-C (Front): 1
Cooling System
Maximum Fan Count: 6
Included Fans: 3
Physical
Depth: 20.87"
Width: 17.30"
Height: 8.66"
Shipping Weight: 71lbs
Other Features
Features:
Expansion card
Length: 455mm (without installing front fans and radiators)
Width w/ expansion card retainer: 157mm
Width w/o expansion card retainer: 198mm

Limitation of CPU cooler
Height w/ expansion card retainer: 181mm
Height w/o expansion card retainer: 192mm

Limitation of PSU
160mm~190mm
(Removal of 3.5" drive cage eliminates PSU depth limitation)

Dimension
Incl. rear fan cage: 440mm (W) x 220mm (H) x 530mm (D), 51.3 liters
Excl. rear fan cage: 440mm (W) x 220mm (H) x 485mm (D), 46.95 liters
Incl. rear fan cage: 17.3" (W), 8.66" (H), 20.87" (D)
Excl. rear fan cage: 17.3" (W), 8.66" (H), 19.1" (D)
Chassis Warranty: 1 Year
