SL-1U-AQ670M-LG

Name: SL-1U-AQ670M-LG
SKU: SL-1U-AQ670M-LG

1U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q1 2025) with Intel Q670 Chipset, 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron®, 1x 1GbE (10/100/1000) LAN, 2x Serial, Up to 128GB RAM, 6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 Internal Headers ), 2x USB 3.2 Gen 1 Ports ( 2 Internal Headers ), 4x USB 3.2 Gen 2 Ports ( 4 Rear ), Power Supply 200W ATX12V Power Supply.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

1U Rack Mount Industrial PC
Depth: 14", Max Card Depth: 12.28"

Motherboard:

Featuring Intel Q670 Chipset and 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® processor
Long Production Cycle Motherboard (Through Q1 2025)
Full Height Slots:
LAN: 1x Ports (1GbE (10/100/1000))
RAID: 0,1,5,10 and NVMe 0,1,5
Video: DisplayPort + DisplayPort + HDMI
Audio: 7.1 HD Audio
Ports:
6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 Internal Headers )
2x USB 3.2 Gen 1 Ports ( 2 Internal Headers )
4x USB 3.2 Gen 2 Ports ( 4 Rear )
2x COM Ports (RS232 Internal Headers)
1x Parallel Port (Headers)
See specifications for more ports
Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF)

Also Included:

Processor: G7400- 3.70GHz Intel Pentium Gold CPU - Dual Core, 6MB Cache, UHD Graphics 710 (Base 46W) (ERM)
Memory: 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM
Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
Power Supply: 200W ATX12V Power Supply
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Memory

x 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $35.00

x 16GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $69.00

x 32GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $129.00

CD/DVD/OpticalDrive

None show Included

Slim SATA DVDRW Drive show $53.00

External USB DVD ReWriteable Drive show $51.00

Removable Drive Bay

None show Included

Removable M.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack Enclosure for PCIe Expansion Slot show $160.00

Additional Hard Drives

250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980 show $83.00 each

500GB NVMe SSD M.2 3.1GB/2.6GB - Samsung 980 show $105.00 each

1TB PCIe 5.0 NVMe SSD M.2 5,000/4,200MB/s - Samsung 990 EVO show $111.00 each

2TB PCIe 5.0 NVMe SSD M.2 5,000/4,200MB/s - Samsung 990 EVO show $172.00 each

1TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $161.00 each

2TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $215.00 each

4TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $401.00 each

4TB SSD M.2 NVMe SSD - 7300MB/6600MB - WD Black show $424.00 each

240GB SATA 3 2.5" SSD - 500/350MB Read/Write or greater. show $48.00 each

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $75.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $91.00 each

1TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $170.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $240.00 each

4TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $402.00 each

1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue show $88.00 each

2.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series show $170.00 each

4.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E8 Series show $218.00 each

8.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS 7E8 Series show $323.00 each

12.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $428.00 each

14.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $435.00 each

16.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $480.00 each

18.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $660.00 each

2.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $122.00 each

4.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $153.00 each

4.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $136.00 each

6.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $182.00 each

Raid Controller

Configure NVMe RAID 0 (Striping) - REQUIRES 2 M.2 NVMe DRIVES OF SAME MODEL AND SIZE and M.2 Adapter. show $0.00 each

Configure NVMe RAID 1 (Mirroring) - REQUIRES 2 M.2 NVMe DRIVES OF SAME MODEL AND SIZE and M.2 Adapter show $0.00 each

Configure RAID 5 (Striping w/ Distributed Parity) - REQUIRES 3 M.2 NVMe DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 0 (Striping) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 1 (Mirroring) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 5 (Striping w/ Distributed Parity) - REQUIRES 3 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 10 (Striping across Mirrors) - REQUIRES 4 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Cable

Add 2 USB 2.0 Ports via connections from onboard header. show $14.00 each

Add 2 USB 3.0 Ports to System via internal cable show $40.00 each

Add 1 16in DB25 Parallel Female to IDC 25 Pin Header Slot Plate show $8.00 each

3 ft HDMI® to DVI-D Cable - M/M show $8.00 each

6 ft HDMI® to DVI-D Cable - M/M show $10.00 each

10 ft Gold Plated DisplayPort to HDMI® Cable show $26.00 each

Riser Card

Optional Riser Card Not Selected - Riser Required when selecting optional plug-in board(s) show $0.00

Riser Card - 1 Slot: PCIe x16 w/ extender show $52.00

Plug-In Boards

M.2 NVMe Adapter - M.2 NVMe PCI-e M-key To PCI-e 3.0 x4 Card. Requires a PCIe x4 slot. show $19.00 each

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile show $43.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP mode - 1-Port, Full Height show $61.00 each

4-Port USB 3.2 Gen 1 PCIe Card - PCIe x1, Full-Height Only show $30.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $85.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

Add-In Graphic Card

None show Included

NVIDIA Quadro T400 4GB 64-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 3 x Mini DisplayPort 1.4 - No Win 7 Support! show $196.00

NVIDIA Quadro T1000 4GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - No Win 7 Support! show $464.00

NVIDIA Quadro T1000 8GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - No Win 7 Support! show $500.00

NVIDIA RTX A400 4GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $210.00

NVIDIA RTX A1000 8GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $540.00

Networking

PCIe x1 - 10/100/1000Mbps Single Port Network Adapter w/ Realtek RTL8111 - Full Height or Low Profile show $36.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $250.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $243.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $109.00 each

PCIe x4 - 10/100/1000/2500Mbps Single Port Network Adapter, 2.5GBASE-T/NBASE-T - Full Height or Low Pr show $46.00 each

PCIe x4 - 100/1000/2500/5000Mbps Single Port Network Adapter - Full Height or Low Profile show $120.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $284.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $712.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $857.00 each

Monitors

None show Included

1U Rackmount 17" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits racks 18.5" - 27.6" DeepSpecial Order Item, Delivery approximately 3 weeks. show $952.00

1U Rackmount 17" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB KVM - Fits Racks 24" - 33" Deep show $1,482.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and touchpad (HDMI input show $1,058.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and trackball (HDMI inpu show $1,112.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touchpad, and 8-port KVM (Cables not included) show $1,589.00

1U Rackmount 19" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits 23.6"- 32.6" Deep Racks show $1,047.00

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" - 33" Deep Racks show $1,578.00

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $24.00 each

Wireless Keyboard/Mouse show $49.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $118.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $97.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $178.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $138.00 each

1U Keyboard/Touchpad rackmount drawer - Fits 19" Deep Racks (Mount in the Front Only), USB-Connection. show $249.00 each

1U Short Depth Rackmount keyboard drawer w/ touchpad and latching drawer. 15.7" depth. show $369.00 each

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth. show $423.00 each

External Power

None show Included

Uninterruptable Power Supply - 550VA 300W Standby - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop/Wall Mount show $125.00

Uninterruptable Power Supply - 750VA 450W Standby - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop / Wall Mount show $145.00

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & Serial ports show $595.00

Tripp Lite Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outlets show $95.00

Mounting Option

None show Included

Rack rail kit for 1U Mini case. Designed for racks 19" to 33" in depth (note that at minimum depth of 19" rail sticks out of back by 6") show $63.00

* Required Fields

Technical Specifications

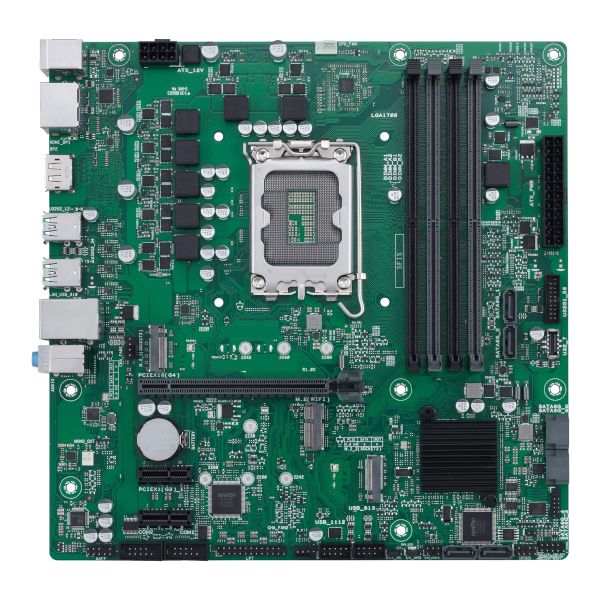

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MicroATX
Long Production Cycle
Long Life: YES
EOL Date: Q1 2025
Supported CPU
Number of Processors: 1
Processor Type: 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
Chipset
Chipset: Intel Q670 Chipset
Memory
Memory Type: DDR5 4800MHz
Memory Type: Non-ECC
DIMMS: 4
Maximum Memory: 128GB
On Board Audio
Audio Type: 7.1 HD Audio
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: DisplayPort + DisplayPort + HDMI
Display Port Out: 2
HDMI Out: 1
LAN
LAN Ports: 1
LAN Type: 1GbE (10/100/1000)
LAN Chipset: Intel® GbE LAN chip
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 6
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
PCIe Signal
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
M.2 Slot #2 Specs
PCIe Signal
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.

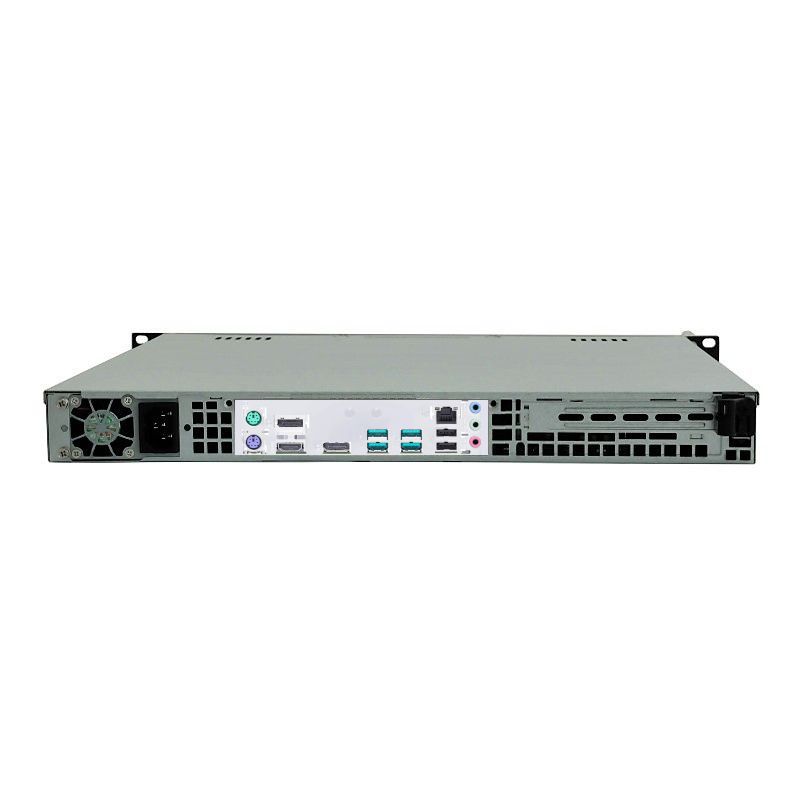

Rear IO
PS/2 Mouse on IO
PS/2 Keyboard on IO
USB 2.0 Ports (on IO): 2
USB 3.2 Gen 2 Type A Ports (on IO): 4
Audio on IO
Headers
USB 2.0 Ports (on Headers): 4
USB 3.2 Gen 1 Ports (on Headers): 2
Serial (via Headers): 2
Parallel Ports: 1
FAN Connectors: 3
Audio on Headers
Chassis Intrusion
Environmental
Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF )
High Humidity: 95%
Low Humidity: 20%
Operating System Support
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
Windows 10 IoT 2021 LTSC Value
Windows 10 IoT 2021 LTSC High End
Windows 11 Home (64 Bit)
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows 11 IoT 2024 LTSC Value
Windows 11 IoT 2024 LTSC High End
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
RoHS
FCC
Other Features
Features:
Expansion Slots

Intel^® 13^th & 12^th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

Intel^® Q670 Chipset

2 x PCIe 3.0 x1 slots

Storage

Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel^® 13^th & 12^th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Intel^® 12th Gen processors support PCIe 4.0 x4 mode

Intel^® Q670 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)

6 x SATA 6Gb/s ports

* Intel^® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.

** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year
