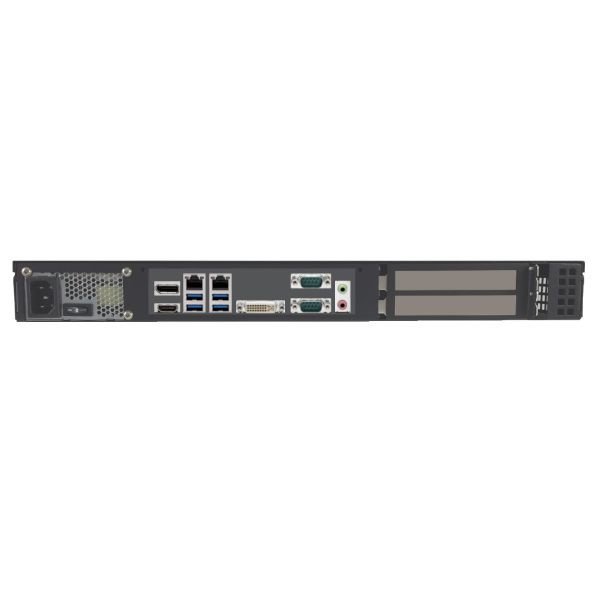

SL-1U-Q170-RD

1U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q4 2025) with Intel Q170 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 2x 1GbE + 1GbE LAN, 2x Serial, Up to 32GB RAM, 4x USB 2.0 Ports ( 2 Front, 2 Internal Headers ), 6x USB 3.2 Gen 1 Ports ( 4 Rear, 2 Internal Headers ), .


Front Available 5.25" Drive Bay, Upgradable Removable Drive Cage, Only 10.2" Deep!

Type:

  • 1U Rack Mount Industrial PC
  • Depth: 10.19"

Motherboard:

  • Featuring Intel Q170 Chipset and 7th and 6th Gen Core i7/i5/i3 (LGA1151) processor
  • Long Production Cycle Motherboard (Through Q4 2025)
  • LAN: 2x Ports (1GbE + 1GbE)
  • RAID: 0,1,5,10
  • Video: DVI-I + HDMI + DisplayPort
  • Audio: 7.1 Channel HD Audio by Realtek® ALC888S
  • Ports:
    4x USB 2.0 Ports ( 2 Front, 2 Internal Headers )
    6x USB 3.2 Gen 1 Ports ( 4 Rear, 2 Internal Headers )
    2x COM Ports (RS232 Rear)
    See specifications for more ports
  • Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

  • Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
  • Memory: 8GB DDR4 2666MHz SODIMM RAM
  • Removable Drive Bay: 2 x 2.5" 5mm-9.5mm HDD/SSD in 5.25" Hot Swap Mobile Rack Cage with Fixed 3.5" Drive/Device Bay.
  • Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
  • Power Supply: 150W 1U Flex ATX Power Supply
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty
Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.
