SL-2U-AB760M-WD

Name: SL-2U-AB760M-WD
SKU: SL-2U-AB760M-WD

2U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q4 2024) with Intel B760 Chipset, 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron®, 1x 1GbE (10/100/1000) LAN, 2x Serial, Up to 128GB RAM, 6x USB 2.0 Ports ( 2 Rear, 4 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear ), 3x Expansion Slots.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

2U Rack Mount Industrial PC
Depth: 18", Max Card Depth: 12.25", Locking Front Bezel

Motherboard:

Featuring Intel B760 Chipset and 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® processor
Long Production Cycle Motherboard (Through Q4 2024)
Low Profile Slots:
1 - PCIe x16
2 - PCIe x1
LAN: 1x Ports (1GbE (10/100/1000))
RAID: 0,1,5,10
Video: VGA + DisplayPort + HDMI
Audio: Realtek® Audio CODEC
Ports:
6x USB 2.0 Ports ( 2 Rear, 4 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear )
2x COM Ports (RS232 Internal Headers)
1x Parallel Port (Headers)
See specifications for more ports
Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF)

Also Included:

Processor: G7400- 3.70GHz Intel Pentium Gold CPU - Dual Core, 6MB Cache, UHD Graphics 710 (Base 46W) (ERM)
Memory: 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM
Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
Power Supply: 400W Power Supply
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Memory

x 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $35.00

x 16GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $69.00

x 32GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $129.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

5.25" CD/DVD Burner show $31.00

5.25" Blu-Ray 16x Readable & ReWriteable Drive show $148.00

Removable Drive Bay

1x 3.5" Hard Drive Aluminum Removable Bay (Require a 5.25" external bay) show $53.00 each

Replacement Caddy for SL-HDD-MR-SATA-MIL HDD Rack show $33.00 each

Add an Enterprise 2 x 2.5" SATA Hard Drive or SSD Mobile Rack with Full Metal Construction with Lock - show $102.00 each

Replacement Tray for SL-HDD-MR-1FDD-2SSD..7-9.5mm Height, show $48.00 each

4 x 2.5" 5mm-15mm HDD/SSD in 5.25" Hot Swap Rugged Full Metal Cage show $208.00 each

4 x 2.5" 5mm-15mm HDD/SSD in 5.25" Hot Swap Rugged Full Metal Cage with Locks. show $280.00 each

Removable M.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack Enclosure for PCIe Expansion Slot show $160.00 each

Additional Hard Drives

250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980 show $83.00 each

500GB NVMe SSD M.2 3.1GB/2.6GB - Samsung 980 show $105.00 each

1TB PCIe 5.0 NVMe SSD M.2 5,000/4,200MB/s - Samsung 990 EVO show $111.00 each

2TB PCIe 5.0 NVMe SSD M.2 5,000/4,200MB/s - Samsung 990 EVO show $172.00 each

1TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $161.00 each

2TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $215.00 each

4TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $401.00 each

4TB SSD M.2 NVMe SSD - 7300MB/6600MB - WD Black show $424.00 each

240GB SATA 3 2.5" SSD - 500/350MB Read/Write or greater. show $48.00 each

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $75.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $91.00 each

1TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $170.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $240.00 each

4TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $402.00 each

1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue show $88.00 each

2.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series show $170.00 each

4.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E8 Series show $218.00 each

8.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS 7E8 Series show $323.00 each

12.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $428.00 each

14.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $435.00 each

16.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $480.00 each

18.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $660.00 each

2.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $122.00 each

4.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $153.00 each

4.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $136.00 each

6.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $182.00 each

Raid Controller

Configure RAID 0 (Striping) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 1 (Mirroring) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 5 (Striping w/ Distributed Parity) - REQUIRES 3 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 10 (Striping across Mirrors) - REQUIRES 4 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Cable

Add 1 DB9 Serial Port 9-pin Serial to 10-pin Header 16" show $7.00 each

Add 2 USB 2.0 Female Ports via internal USB header cable show $9.00 each

Add 1x Parallel Port to the configuration - DB25 (F) to IDC26 show $7.00 each

3 ft HDMI® to DVI-D Cable - M/M show $8.00 each

6 ft HDMI® to DVI-D Cable - M/M show $10.00 each

Active DisplayPort to DVI-D Adapter/Video Converter 1080p - DP 1.2 to DVI show $45.00 each

Mini DisplayPort to HDMI 4K Audio / Video Converter mDP 1.2 to HDMI Active Adapter show $38.00 each

Plug-In Boards

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile show $43.00 each

Serial PCIe Card, 9pin 16550 UARTs - 2 Ports, Low Profile show $77.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP Mode - 1 Port, Low Profile show $69.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $85.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

4 Ports USB 3.2 Gen 1 PCIe Card Adapter with SATA Power - Supports Low Profile show $70.00 each

Add-In Graphic Card

None show Included

NVIDIA GeForce RTX 4060 8GB 128-Bit GDDR6 PCIe 4.0 x16 - Recommended 450W PSUPart Delay: ETA January 15, 2025 show $449.00

NVIDIA Quadro T400 4GB 64-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 3 x Mini DisplayPort 1.4 - No Win 7 Support! show $196.00

NVIDIA Quadro T1000 4GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - No Win 7 Support! show $464.00

NVIDIA Quadro T1000 8GB 128-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4 - No Win 7 Support! show $500.00

NVIDIA RTX A400 4GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $210.00

NVIDIA RTX A1000 8GB GDDR6, PCI Express 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $540.00

NVIDIA Quadro RTX A2000 12GB GDDR6, PCIe 4.0 x16 - 4x Mini DisplayPort - Low Profile and Full Height Compatible show $791.00

Networking

M.2 2230 - Intel Wi-Fi 6 (Gig+) module via internal M.2 slot. Features Bluetooth 5.0 and WPA3 securit show $30.00 each

PCIe x1 - 10/100/1000Mbps Single Port Network Adapter w/ Realtek RTL8111 - Full Height or Low Profile show $36.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $109.00 each

PCIe x4 - 100/1000/2500/5000Mbps Single Port Network Adapter - Full Height or Low Profile show $120.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $250.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $243.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $284.00 each

PCIe x4 - 10/100/1000/2500Mbps Single Port Network Adapter, 2.5GBASE-T/NBASE-T - Full Height or Low Pr show $46.00 each

Power Supply

400W Power Supply show $87.00

600W Power SupplyPart Delay: ETA December 30, 2024 show $121.00

Monitors

None show Included

1U Rackmount 17" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits racks 18.5" - 27.6" DeepSpecial Order Item, Delivery approximately 3 weeks. show $952.00

1U Rackmount 17" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB KVM - Fits Racks 24" - 33" Deep show $1,482.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and touchpad (HDMI input show $1,058.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and trackball (HDMI inpu show $1,112.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touchpad, and 8-port KVM (Cables not included) show $1,589.00

1U Rackmount 19" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits 23.6"- 32.6" Deep Racks show $1,047.00

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" - 33" Deep Racks show $1,578.00

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $24.00 each

Wireless Keyboard/Mouse show $49.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $118.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $97.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $178.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $138.00 each

1U Keyboard/Touchpad rackmount drawer - Fits 19" Deep Racks (Mount in the Front Only), USB-Connection. show $249.00 each

1U Short Depth Rackmount keyboard drawer w/ touchpad and latching drawer. 15.7" depth. show $369.00 each

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth. show $423.00 each

External Power

None show Included

Uninterruptable Power Supply - 550VA 300W Standby - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop/Wall Mount show $125.00

Uninterruptable Power Supply - 750VA 450W Standby - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop / Wall Mount show $145.00

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & Serial ports show $595.00

Tripp Lite Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outlets show $95.00

Mounting Option

None show Included

20" Slide Rail for 2U or 4U Chassis. Depth range of 21" to 29" show $65.00

26" Slide Rails for 2U or 4U Chassis. Depth range of 22 to 36.5 show $77.00

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MicroATX
Long Production Cycle
Long Life: YES
EOL Date: Q4 2024
Supported CPU
Number of Processors: 1
Processor Type: 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
Chipset
Chipset: Intel B760 Chipset
Memory
Memory Type: DDR5 4800MHz
Memory Type: Non-ECC
DIMMS: 4
Maximum Memory: 128GB
On Board Audio
Audio Type: Realtek® Audio CODEC
On Board Video
Video Chipset: None
Video on IO: VGA + DisplayPort + HDMI
VGA Port Out: 1
Display Port Out: 2
HDMI Out: 1
LAN
LAN Ports: 1
LAN Type: 1GbE (10/100/1000)
LAN Chipset: Intel® GbE LAN chip
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 4
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 1
PCI Express x1 Slots On Motherboard: 2
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 2
M.2 Slot #1 Specs
PCIe Signal
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
M.2 Slot #2 Specs
PCIe Signal
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.

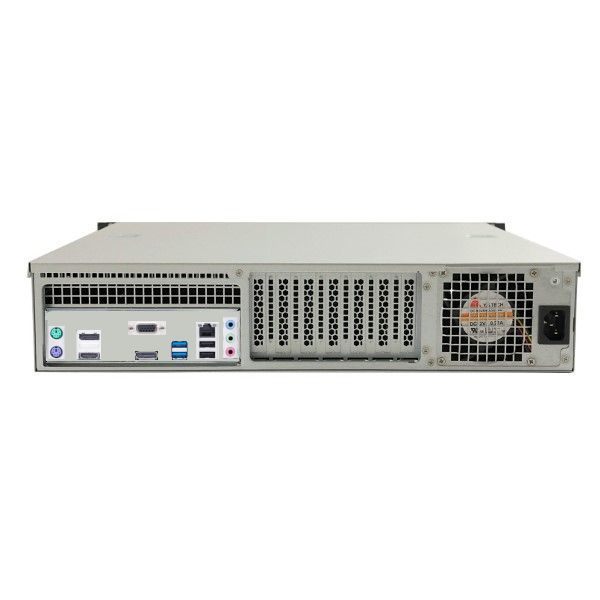

Rear IO
PS/2 Mouse on IO
PS/2 Keyboard on IO
USB 2.0 Ports (on IO): 2
USB 3.2 Gen 1 Type A Ports (on IO): 2
Audio on IO
Headers
USB 2.0 Ports (on Headers): 4
USB 3.2 Gen 1 Ports (on Headers): 2
Serial (via Headers): 2
Parallel Ports: 1
FAN Connectors: 2
Audio on Headers
Chassis Intrusion
Environmental
Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF )
High Humidity: 90%
Low Humidity: 5%
Operating System Support
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
Windows 10 IoT Value 2019 LTSC
Windows 10 IoT Ent 2019 LTSC
Windows 10 IoT 2021 LTSC Value
Windows 10 IoT 2021 LTSC High End
Windows 11 Home (64 Bit)
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows 11 IoT 2024 LTSC Value
Windows 11 IoT 2024 LTSC High End
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
CE
RoHS
FCC
Other Features
Features:
Expansion Slots

Intel^® 13^th & 12^th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
Intel^® B760 Chipset
2 x PCIe 3.0 x1 slots
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel^® 13^th & 12^th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel^® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel^® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Motherboard Warranty: 1 Year
