SL-2U-JH110M-BA This item is no longer available.
2U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q3 2030) with Intel H110 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 2x 1GbE + 1GbE LAN, 10x Serial, Up to 32GB RAM, 5x USB 2.0 Ports ( 2 Front, 2 Rear, 1 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 4 Rear ), .
Type:
- 2U Rack Mount Industrial PC
- Depth: 17.70", Max Card Depth: 9 inches", Locking Front Bezel
Motherboard:
- Featuring Intel H110 Chipset and 7th and 6th Gen Core i7/i5/i3 (LGA1151) processor
- Long Production Cycle Motherboard (Through Q3 2030)
- LAN: 2x Ports (1GbE + 1GbE)
- Video: VGA + HDMI + DVI-D
- Audio: 5.1 channel by Realtek® ALC662
- Ports:
5x USB 2.0 Ports ( 2 Front, 2 Rear, 1 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 4 Rear )
10x COM Ports (1 RS232 Rear, 8 RS232 Internal Headers, 1 RS232/422/485 Rear)
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)
Also Included:
- Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
- Memory: 8GB DDR4 2666MHz RAM
- Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
- Power Supply: 400W Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MicroATX
- Long Production Cycle
- Long Life: YES
- EOL Date: Q3 2030
- Supported CPU
- Number of Processors: 1
- Processor Type: 7th and 6th Gen Core i7/i5/i3 (LGA1151)
- Chipset
- Chipset: Intel H110 Chipset
- Memory
- Memory Type: DDR4 2133MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 32GB
- On Board Audio
- Audio Type: 5.1 channel by Realtek® ALC662
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: VGA + HDMI + DVI-D
- VGA Port Out: 1
- DVI-D Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 2
- LAN Type: 1GbE + 1GbE
- LAN Chipset: Realtek® RTL8111G
- Second LAN Chipset: Realtek® RTL8111G
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 3
- Mini PCIe
- mini PCIe
- mSATA
- half and/or full size mini PCIe card: full size
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 1
- M.2 Slot #1 Specs
- M.2 SATA SSD
- 22110 - 22 mm x 110 mm.
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.

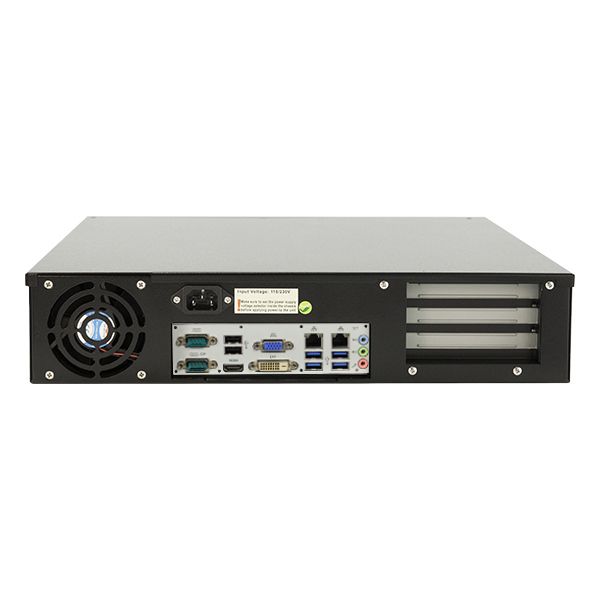

- Rear IO
- USB 2.0 Ports (on IO): 2
- USB 3.2 Gen 1 Type A Ports (on IO): 4
- Serial (Rear IO): 1
- Serial 232/422/485 Ports: 1
- Headers
- USB 2.0 Ports (on Headers): 3
- Serial (via Headers): 8
- TPM Support: 1.2 Module Included
- Environmental
- Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 7 Ultimate (64-bit)
- Windows 7 Pro (32-bit)
- Windows 7 Pro (64-bit)
- Windows 7 Pro (FES) 32-Bit
- Windows 7 Pro (FES) 64-Bit
- SL-Windows 10PRO to 7PRO 32-bit
- SL-Windows 10PRO to 7PRO 64-bit
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows 8.1 (64-bit)
- Windows 8.1 Pro (64-bit)
- Windows Embedded 8 (64-bit)
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- SL-Windows 11PRO to 10PRO 64bit
- Windows 10 IoT Value
- Windows 10 IoT Ent
- Windows 10 IoT Value 2019 LTSC
- Windows 10 IoT Ent 2019 LTSC
- Windows 10 IoT 2021 LTSC Value
- Windows 10 IoT 2021 LTSC High End
- RED HAT Enterprise LINUX SERVER STANDARD
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Other Features
- Other Features:
1x PCI-E 2.0 x16 Slot (by 16-lane)
1x PCI-E 2.0 x1 Slot
1x mini PCI-E Slot (Full-size)
1x M.2 SATA M-key, 2242/2260/2280/22110 (SATA SSD Only)
2x PCI Slot
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 2U Rackmount
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: ATX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 3
- Max Card Depth: 9 inches"
- External 5.25" Bays: 1
- Internal 3.5" Bays: 2
- Front Ports
- USB 2.0 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 1
- Included Fans: 1
- Physical
- Depth: 17.70"
- Depth (Inches): 17.7
- Width: 19"
- Height: 3.50"
- Shipping Box - Depth: 23"
- Shipping Box - Width: 23"
- Shipping Box - Height: 12"
- Shipping Weight: 27lbs
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Other Features
- Chassis Warranty: 1 Year
