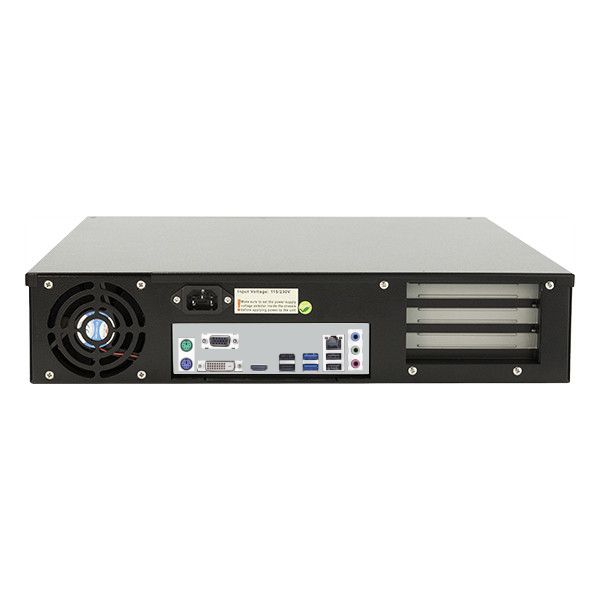

SL-2U-LLH310M-BA This item is no longer available.
2U Rack Mount Industrial PC - Rackmount featuring Intel H310 Chipset, 8th and 9th Gen Core i7/i5/i3 (LGA1151), 1x 1GbE (10/100/1000) LAN, Up to 32GB RAM, 6x USB 2.0 Ports ( 2 Front, 4 Rear ), 4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers ), .
Type:
- 2U Rack Mount Industrial PC
- Depth: 17.70", Max Card Depth: 9 inches", Locking Front Bezel
Motherboard:
- Featuring Intel H310 Chipset and 8th and 9th Gen Core i7/i5/i3 (LGA1151) processor
- LAN: 1x Ports (1GbE (10/100/1000))
- Video: VGA + DVI-D + HDMI
- Audio: Realtek® ALC887 codec
- Ports:
6x USB 2.0 Ports ( 2 Front, 4 Rear )
4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers )
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Processor: G4900 - 3.1GHz Intel Celeron CPU - Dual Core, 2MB Cache, UHD Graphics 610 (54W) (ERM) - or Better
- Memory: 8GB DDR4 2666MHz RAM
- Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
- Power Supply: 400W Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MicroATX
- Supported CPU
- Number of Processors: 1
- Processor Type: 8th and 9th Gen Core i7/i5/i3 (LGA1151)
- Chipset
- Chipset: Intel H310 Chipset
- Memory
- Memory Type: DDR4 2666MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 32GB
- On Board Audio
- Audio Type: Realtek® ALC887 codec
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: VGA + DVI-D + HDMI
- VGA Port Out: 1
- DVI-D Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 1
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Realtek® RTL8118
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 4
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 1
- M.2 Slot #1 Specs
- M.2 SATA SSD
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- Rear IO
- PS/2 Mouse on IO
- PS/2 Keyboard on IO
- USB 2.0 Ports (on IO): 4
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 2
- USB 3.2 Gen 1 Ports (on Headers): 2
- FAN Connectors: 2
- Audio on Headers
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- Windows 10 IoT Value
- Windows 10 IoT Ent
- Windows 10 IoT Value 2019 LTSC
- Windows 10 IoT Ent 2019 LTSC
- Windows 11 Home (64 Bit)
- Windows 11 Pro (64 Bit)
- Windows 11 Pro for WS (64 Bit)
- LINUX Ubuntu Desktop
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Other Features:
Expansion Slots
- 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 3.0 standard.) - 2 x PCI Express x1 slots
(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
M.2 Slot
- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- 1 x PCI Express x16 slot, running at x16
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 2U Rackmount
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: ATX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 3
- Max Card Depth: 9 inches"
- External 5.25" Bays: 1
- Internal 3.5" Bays: 2
- Front Ports
- USB 2.0 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 1
- Included Fans: 1
- Physical
- Depth: 17.70"
- Depth (Inches): 17.7
- Width: 19"
- Height: 3.50"
- Shipping Box - Depth: 23"
- Shipping Box - Width: 23"
- Shipping Box - Height: 12"
- Shipping Weight: 27lbs
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Other Features
- Chassis Warranty: 1 Year
