SL-2U-Q87SLQ-WF

Name: SL-2U-Q87SLQ-WF
SKU: SL-2U-Q87SLQ-WF

2U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q4 2022) with Intel Q87 Chipset, 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell'), 2x 1GbE + 1GbE LAN, 4x Serial, Up to 32GB RAM, 8x USB 2.0 Ports ( 4 Rear, 4 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear ), .

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

2U Rack Mount Industrial PC
Depth: 18", Max Card Depth: 12.25", Locking Front Bezel

Motherboard:

Featuring Intel Q87 Chipset and 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell') processor
Long Production Cycle Motherboard (Through Q4 2022)
Full Height Slots:
LAN: 2x Ports (1GbE + 1GbE)
RAID: 0,1,5,10
Video: HDMI + DisplayPort + VGA + DVI-D
Audio: 7.1 Channel HD Audio by Realtek® ALC888S
Ports:
8x USB 2.0 Ports ( 4 Rear, 4 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear )
4x COM Ports (3 RS232 Internal Headers, 1 RS232/422/485 Internal Headers)
See specifications for more ports
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

Processor: G1820 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (53W) (ERM)
Memory: 4GB DDR3 1600MHz RAM
Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
Power Supply: 400W Power Supply
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MicroATX
Long Life: YES
EOL Date: Q4 2022
Supported CPU
Number of Processors: 1
Processor Type: 4th Gen Core i3/i5/i7 (LGA1150, 'Haswell')
Chipset
Chipset: Intel Q87 Chipset
Memory
Memory Type: DDR3 1600MHz
Memory Type: Non-ECC
DIMMS: 4
Maximum Memory: 32GB
On Board Audio
Audio Type: 7.1 Channel HD Audio by Realtek® ALC888S
On Board Video
Video Chipset: Intel HD Graphics 4600
Video on IO: HDMI + DisplayPort + VGA + DVI-D
VGA Port Out: 1
DVI-D Out: 1
Display Port Out: 1
HDMI Out: 1
LAN
LAN Ports: 2
LAN Type: 1GbE + 1GbE
LAN Chipset: Intel® i217LM
Second LAN Chipset: Intel® i210AT
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 5
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Mini PCIe
mini PCIe
mSATA
half and/or full size mini PCIe card: full/half size
mSATA

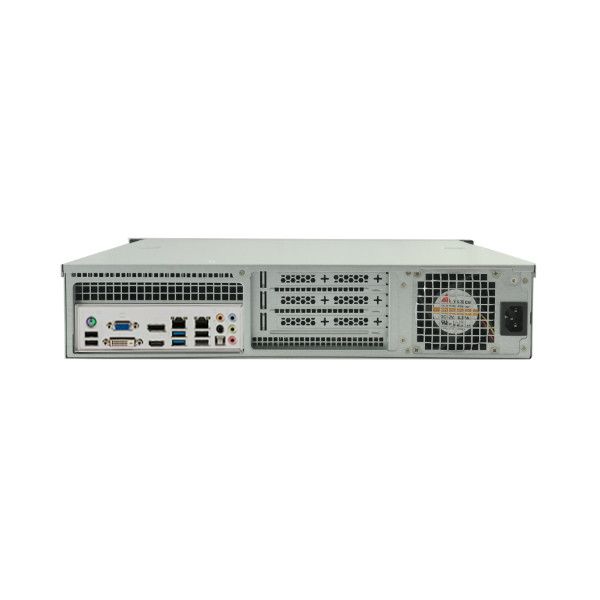

Rear IO
PS/2 Combo (Mouse/Keyboard)
USB 2.0 Ports (on IO): 4
USB 3.2 Gen 1 Type A Ports (on IO): 2
Audio on IO
Headers
USB 2.0 Ports (on Headers): 4
USB 3.2 Gen 1 Ports (on Headers): 2
Serial (via Headers): 3
Serial 232/422/485 Ports: 1
FAN Connectors: 4
Audio on Headers
DOM
PS/2 Combo (Mouse/Keyboard) on Headers
Chassis Intrusion
TPM Support: Via 1.2 Header
Management Features
AMT
vPRO
NMI
Watch Dog
Environmental
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
High Humidity: 90%
Low Humidity: 5%
Operating System Support
Windows 7 Ultimate (64-bit)
Windows 7 Pro (32-bit)
Windows 7 Pro (64-bit)
Windows 7 Pro (FES) 32-Bit
Windows 7 Pro (FES) 64-Bit
SL-Windows 10PRO to 7PRO 32-bit
SL-Windows 10PRO to 7PRO 64-bit
Windows Embedded 7 (32-Bit)
Windows Embedded 7 (64-Bit)
Windows 8.1 (32-bit)
Windows 8.1 (64-bit)
Windows 8.1 Pro (32-bit)
Windows 8.1 Pro (64-bit)
Windows Embedded 8 (32-bit)
Windows Embedded 8 (64-bit)
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
Windows 10 IoT Value
Windows 10 IoT Ent
Windows 10 IoT Value 2019 LTSC
Windows 10 IoT Ent 2019 LTSC
Windows 10 IoT 2021 LTSC Value
Windows 10 IoT 2021 LTSC High End
LINUX Ubuntu Desktop
Compliance of Component
RoHS
Other Features
Other Features:
- 1x PCI-E 3.0 x16 (in x16) slot
- 1x PCI-E 2.0 x4 slot
- 1x PCI-E 2.0 x1 slot
- 1x Mini-PCI-E w/ mSATA support
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year

Chassis Specifications:

General
Form Factor: 2U Rackmount
Color: Black & Silver
Material: Metal/Steel
Material Thickness: 1mm
Motherboard Compatibility: ATX
Slide Rails: Optional
Expansion
Full Height Slots: 3
Max Card Depth: 12.25"
External 5.25" Bays: 1
Internal 3.5" Bays: 2
External 3.5" Bays: 1
Internal 2.5" Bays: 1
Front Ports
USB 3.2 Ports (Front): 2
Cooling System
Maximum Fan Count: 3
Included Fans: 1
Physical
Depth: 18"
Depth (Inches): 18
Width: 16.90"
Height: 3.50"
Shipping Box - Depth: 20"
Shipping Box - Width: 40"
Shipping Box - Height: 40"
Shipping Weight: 35lbs
Compliance of Component
RoHS
Other Features
Chassis Warranty: 1 Year
