SL-4U-JH110M-HA

Name: SL-4U-JH110M-HA
SKU: SL-4U-JH110M-HA

A newer version of this item is available: SL-4U-LLH310M-HA

4U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q3 2030) with Intel H110 Chipset, 7th and 6th Gen Core i7/i5/i3 (LGA1151), 2x 1GbE + 1GbE LAN, 10x Serial, Up to 32GB RAM, 5x USB 2.0 Ports ( 2 Front, 2 Rear, 1 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 4 Rear ), 4x Expansion Slots.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

4U Rack Mount Industrial PC
Depth: 17.70", Max Card Depth: 12.28", Locking Front Bezel

Motherboard:

Featuring Intel H110 Chipset and 7th and 6th Gen Core i7/i5/i3 (LGA1151) processor
Long Production Cycle Motherboard (Through Q3 2030)
Full Height Slots:
1 - PCIe x16
1 - PCIe x1
2 - PCI
LAN: 2x Ports (1GbE + 1GbE)
Video: VGA + HDMI + DVI-D
Audio: 5.1 channel by Realtek® ALC662
Ports:
5x USB 2.0 Ports ( 2 Front, 2 Rear, 1 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 4 Rear )
10x COM Ports (1 RS232 Rear, 8 RS232 Internal Headers, 1 RS232/422/485 Rear)
See specifications for more ports
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
Memory: 8GB DDR4 2666MHz RAM
Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
Power Supply: 400W Power Supply
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: MicroATX
Long Production Cycle
Long Life: YES
EOL Date: Q3 2030
Supported CPU
Number of Processors: 1
Processor Type: 7th and 6th Gen Core i7/i5/i3 (LGA1151)
Chipset
Chipset: Intel H110 Chipset
Memory
Memory Type: DDR4 2133MHz
Memory Type: Non-ECC
DIMMS: 2
Maximum Memory: 32GB
On Board Audio
Audio Type: 5.1 channel by Realtek® ALC662
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: VGA + HDMI + DVI-D
VGA Port Out: 1
DVI-D Out: 1
HDMI Out: 1
LAN
LAN Ports: 2
LAN Type: 1GbE + 1GbE
LAN Chipset: Realtek® RTL8111G
Second LAN Chipset: Realtek® RTL8111G
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 3
Expansion Slots
PCI Express x16 Slots On Motherboard: 1
PCI Express x1 Slots On Motherboard: 1
PCI Slots (Conventional 32-Bit): 2
Mini PCIe
mini PCIe
mSATA
half and/or full size mini PCIe card: full size
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 1
M.2 Slot #1 Specs
M.2 SATA SSD
22110 - 22 mm x 110 mm.
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.

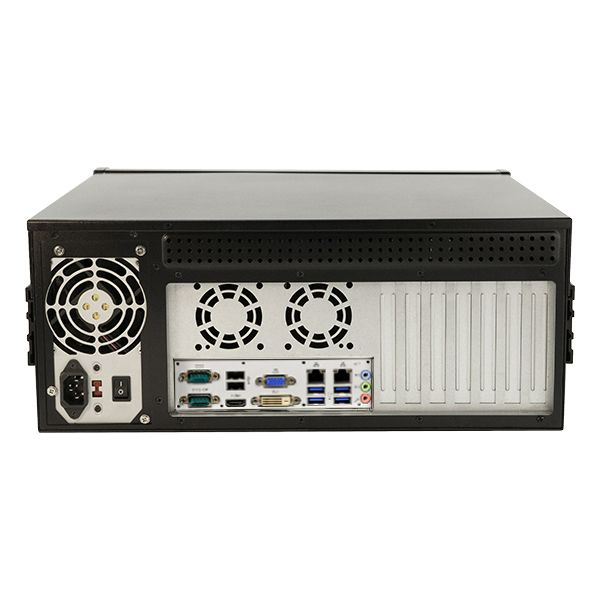

Rear IO
USB 2.0 Ports (on IO): 2
USB 3.2 Gen 1 Type A Ports (on IO): 4
Serial (Rear IO): 1
Serial 232/422/485 Ports: 1
Headers
USB 2.0 Ports (on Headers): 3
Serial (via Headers): 8
TPM Support: 1.2 Module Included
Environmental
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
High Humidity: 90%
Low Humidity: 5%
Operating System Support
Windows 7 Ultimate (64-bit)
Windows 7 Pro (32-bit)
Windows 7 Pro (64-bit)
Windows 7 Pro (FES) 32-Bit
Windows 7 Pro (FES) 64-Bit
Windows 7 PRO (FES) DGS 32-BIT
Windows 7 PRO (FES) DGS 64-BIT
SL-Windows 10PRO to 7PRO 32-bit
SL-Windows 10PRO to 7PRO 64-bit
Windows Embedded 7 (32-Bit)
Windows Embedded 7 (64-Bit)
Windows 8.1 (64-bit)
Windows 8.1 Pro (64-bit)
Windows Embedded 8 (64-bit)
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
Windows 10 IoT Value
Windows 10 IoT Ent
Windows 10 IoT Value 2019 LTSC
Windows 10 IoT Ent 2019 LTSC
Windows 10 IoT 2021 LTSC Value
Windows 10 IoT 2021 LTSC High End
RED HAT Enterprise LINUX SERVER STANDARD
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
UL
CE
RoHS
FCC
Other Features
Other Features:
1x PCI-E 2.0 x16 Slot (by 16-lane)

1x PCI-E 2.0 x1 Slot

1x mini PCI-E Slot (Full-size)

1x M.2 SATA M-key, 2242/2260/2280/22110 (SATA SSD Only)

2x PCI Slot

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year

Chassis Specifications:

General
Form Factor: 4U Rackmount
Color: Black
Material: Metal/Steel
Material Thickness: 1mm
Motherboard Compatibility: ATX
Redundant Power Supply Capable
Slide Rails: Optional
Expansion
Full Height Slots: 7
Max Card Depth: 12.28"
External 5.25" Bays: 3
Internal 3.5" Bays: 2
External 3.5" Bays: 1
Front Ports
USB 2.0 Ports (Front): 2
Cooling System
Maximum Fan Count: 2
Included Fans: 1
Physical
Depth: 17.70"
Depth (Inches): 17.7
Width: 19"
Height: 7"
Shipping Box - Depth: 26"
Shipping Box - Width: 23"
Shipping Box - Height: 12"
Shipping Weight: 45lbs
Other Features
Chassis Warranty: 1 Year

Available Downloads

CASE-4U-ASE-0059

SuperLogics 4U-HA 3D Drawing (File Type: STEP)
