SL-4U-SBC-Q370-HA

Name: SL-4U-SBC-Q370-HA
SKU: SL-4U-SBC-Q370-HA

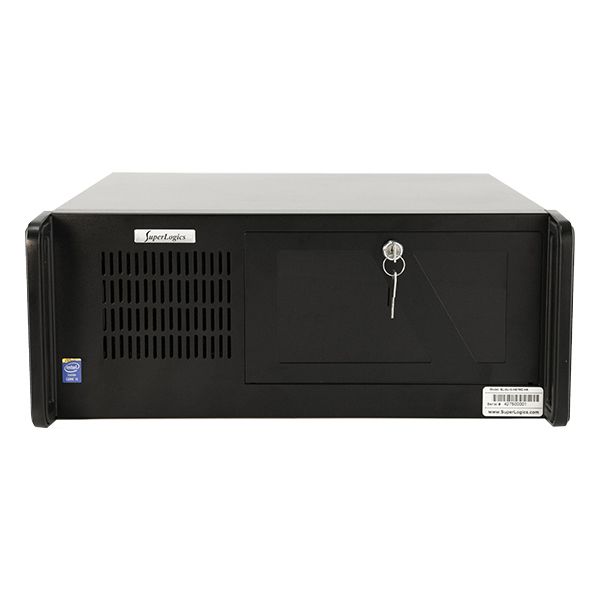

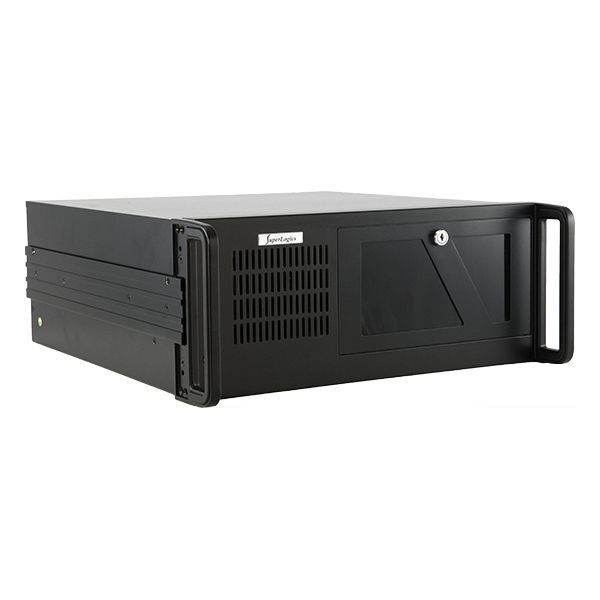

4U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q1 2029) with Intel Q370 Chipset, 8th and 9th Gen Core i7/i5/i3 (LGA1151), 2x 1GbE + 1GbE LAN, 4x Serial, Up to 32GB RAM, 1x USB 2.0 Port( 1 Front ), 1x USB 3.2 Gen 1 Port( 1 Internal Headers ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 12x Expansion Slots.

Skip to the end of the images gallery

Previous
1 of 2
Next

Skip to the beginning of the images gallery

Type:

4U Rack Mount Industrial PC
Depth: 17.70", Max Card Depth: 12.28", Locking Front Bezel

Motherboard:

Featuring Intel Q370 Chipset and 8th and 9th Gen Core i7/i5/i3 (LGA1151) processor
Long Production Cycle Motherboard (Through Q1 2029)
Full Height Slots:
1 - PCIe x16
3 - PCIe x1
8 - PCI
LAN: 2x Ports (1GbE + 1GbE)
RAID: 0,1,5,10
Video: DVI-I
Audio: No Onboard Audio
Ports:
1x USB 2.0 Port( 1 Front )
1x USB 3.2 Gen 1 Port( 1 Internal Headers )
2x USB 3.2 Gen 2 Ports ( 2 Rear )
4x COM Ports (2 RS232 Internal Headers, 2 RS232/422/485 Internal Headers)
1x Parallel Port (Headers)
See specifications for more ports
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

Processor: G5400 - 3.7GHz Intel Pentium Gold CPU - Dual Core, 4MB Cache, UHD Graphics 610 (54W) (ERM) - Upgradeable
Memory: 8GB DDR4 2666MHz RAM - Upgradeable
Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue - Upgradeable
Power Supply: 400W Power Supply - Upgradeable
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty - Upgradeable

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show +$100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

G5400 - 3.7GHz Intel Pentium Gold CPU - Dual Core, 4MB Cache, UHD Graphics 610 (54W) (ERM) show Included

i3-8100 - 3.6GHz Intel Quad-Core (4 cores) CPU - 6MB Cache, UHD Graphics 630 (65W) (ERM) show +$73.00

i5-8500 - 3.0GHz (up to 4.1GHz) Intel Hexa-Core (6 cores) CPU - 9MB Cache, UHD Graphics 630 (65W) (ERM) show +$218.00

i7-8700 - 3.2GHz (up to 4.6GHz) Intel Hexa-Core (6 cores) CPU - 12MB Cache, UHD Graphics 630 (65W) (ERM) show +$358.00

Memory

x 8GB DDR4 2666MHz RAM show Included

x 16GB DDR4 2666MHz RAM show +$27.00

Backplane

PICMG 1.3 Backplane with 1 x PCIe x16, 3 x PCIe X1 and 8 x PCI Slots show Included

PICMG 1.3 Backplane with 13 PCI Slots show +$84.00

PICMG 1.3 CPU card slot, 1 x PCIe x4 slot, 1 x PCIe x16 slot, and 10 x 32bit/33MHz PCI slots show +$30.00

PICMG 1.3 Backplane with 1 x PCI-E x16, 7 x PCI-E X1 and 4 x PCI SlotsSpecial Order Item, Delivery approximately 4 weeks. show +$90.00

PICMG 1.3 Backplane with 1 x PCIe x16, 5 x PCIe X4 and 6 x PCI Slots show +$240.00

PICMG 1.3 Backplane with 10 x PCI, 1 x PCIe x4, 1 x PCIe x16 Slots show -$8.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show +$51.00

5.25" CD/DVD Burner show +$31.00

5.25" Blu-Ray 16x Readable & ReWriteable Drive show +$148.00

Removable Drive Bay

1x 3.5" Hard Drive Aluminum Removable Bay (Require a 5.25" external bay) show $53.00 each

Replacement Caddy for SL-HDD-MR-SATA-MIL HDD Rack show $33.00 each

3 x 3.5 / 2.5" Hot-swap SATA HDD Bays (Requires Two 5.25" External Bays) show $152.00 each

5 x 3.5" Hot-swap SATA HDD Bays - Requires 3 x 5.25" External Bays show $249.00 each

Add an Enterprise 2 x 2.5" SATA Hard Drive or SSD Mobile Rack with Full Metal Construction with Lock - show $102.00 each

Replacement Tray for SL-HDD-MR-1FDD-2SSD..7-9.5mm Height, show $48.00 each

4 x 2.5" 5mm-15mm HDD/SSD in 5.25" Hot Swap Rugged Full Metal Cage show $208.00 each

4 x 2.5" 5mm-15mm HDD/SSD in 5.25" Hot Swap Rugged Full Metal Cage with Locks. show $280.00 each

Removable M.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack Enclosure for PCIe Expansion Slot show $160.00 each

Additional Hard Drives

240GB SATA 3 2.5" SSD - 500/350MB Read/Write or greater. show $48.00 each

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $75.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $91.00 each

1TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $170.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $211.00 each

4TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $388.00 each

1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue show $88.00 each

2.0TB SATA 6Gb/s 7200RPM 64MB 3.5" - WD Black show $168.00 each

4.0TB SATA 6Gb/s 7200RPM 256 MB 3.5" - WD Black show $216.00 each

2.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series show $170.00 each

2.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $133.00 each

4.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $153.00 each

4.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $136.00 each

6.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $182.00 each

6.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $265.00 each

8.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $333.00 each

10.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $393.00 each

12.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $428.00 each

14.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $435.00 each

16.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $480.00 each

18.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $660.00 each

Raid Controller

None show Included

Configure RAID 0 (Striping) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show +$0.00

Configure RAID 1 (Mirroring) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show +$0.00

Configure RAID 5 (Striping w/ Distributed Parity) - REQUIRES 3 SATA DRIVES OF SAME MODEL AND SIZE show +$0.00

Configure RAID 10 (Striping across Mirrors) - REQUIRES 4 SATA DRIVES OF SAME MODEL AND SIZE show +$0.00

Cable

TPM 2.0 Module - FOR IMB523/IMB520/MMB501/SHB150/SHB160 show $21.00 each

COM Port (Serial Port) Cable, 9-pin, w/ Standard-Height Bracket show $10.00 each

2 x COM Port (Serial ports) RS232 Cable, 9-pin, w/ Standard-Height Bracket show $12.00 each

Add 1 16in DB25 Parallel Female to IDC 25 Pin Header Slot Plate show $8.00 each

Add 2 USB 2.0 Ports via connections from onboard header. show $14.00 each

Plug-In Boards

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile show $43.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP mode - 1-Port, Full Height show $61.00 each

4-Port USB 3.2 Gen 1 PCIe Card - PCIe x1, Full-Height Only show $30.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $85.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

Networking

PCIe x1 - WiFi 6 802.11ax Bluetooth 5.0 - Wi-Fi/Bluetooth Combo Adapter - 2.93 Gbit/s - 2.40 GHz ISM - show $82.00 each

USB 2.0 - Mini Dual Band Wireless-AC Network Adapter show $52.00 each

PCIe x1 - 10/100/1000Mbps Single Port Network Adapter w/ Realtek RTL8111 - Full Height or Low Profile show $36.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $250.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $243.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $109.00 each

PCIe x4 - 10/100/1000/2500Mbps Single Port Network Adapter, 2.5GBASE-T/NBASE-T - Full Height or Low Pr show $46.00 each

PCIe x4 - 100/1000/2500/5000Mbps Single Port Network Adapter - Full Height or Low Profile show $120.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $284.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $712.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $857.00 each

Power Supply

400W Power Supply show Included

600W ATX12V (v2.2) 8cm 80 Plus Bronze 80MM FAN show +$34.00

1200W 80 PLUS GOLD ATX3.0 PCIE5 Modular Power Supply show +$283.00

500W 80 PLUS GOLD Hot Swappable Redundant Digital Power Supply show +$500.00

700W 80 PLUS GOLD Hot Swappable Redundant Digital Power Supply show +$678.00

Add-On

None show Included

Additional set of Rack Mount Ears for 4U HA Chassis (One set is included with a 4U HA System) show +$6.00

Monitors

None show Included

1U Rackmount 17" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits racks 18.5" - 27.6" DeepPart ETA Varies – Ask Sales show +$952.00

1U Rackmount 17" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB KVM - Fits Racks 24" - 33" DeepPart ETA Varies – Ask Sales show +$1,482.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and touchpad (HDMI inputPart ETA Varies – Ask Sales show +$1,058.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and trackball (HDMI inpuPart ETA Varies – Ask Sales show +$1,112.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touchpad, and 8-port KVM (Cables not included)Part ETA Varies – Ask Sales show +$1,589.00

1U Rackmount 19" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits 23.6"- 32.6" Deep RacksPart ETA Varies – Ask Sales show +$1,047.00

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" - 33" Deep RacksPart ETA Varies – Ask Sales show +$1,578.00

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $24.00 each

Wireless Keyboard/Mouse show $49.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $118.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $97.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $178.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $138.00 each

1U Keyboard/Touchpad rackmount drawer - Fits 19" Deep Racks (Mount in the Front Only), USB-Connection. show $249.00 each

1U Short Depth Rackmount keyboard drawer w/ touchpad and latching drawer. 15.7" depth. show $369.00 each

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth. Part ETA Varies – Ask Sales show $423.00 each

External Power

Uninterruptable Power Supply - 550VA 300W Standby - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P show $125.00 each

Uninterruptable Power Supply - 750VA 450W Standby - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P show $181.00 each

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & S show $626.00 each

Tripp Lite Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outlets show $95.00 each

Mounting Option

20" Adjustable Slide Rails - Fits 22.3" - 31" deep cabinet. Support chassis up to 23" deep show $51.00 each

24" Adjustable Slide Rails - Fits 26.3" - 39" deep cabinet. Support chassis up to 27" deep show $57.00 each

26" Adjustable Slide Rails - Fits 28.4" - 39" deep cabinet. Supported chassis up to 29" deep show $65.00 each

* Required Fields

Technical Specifications

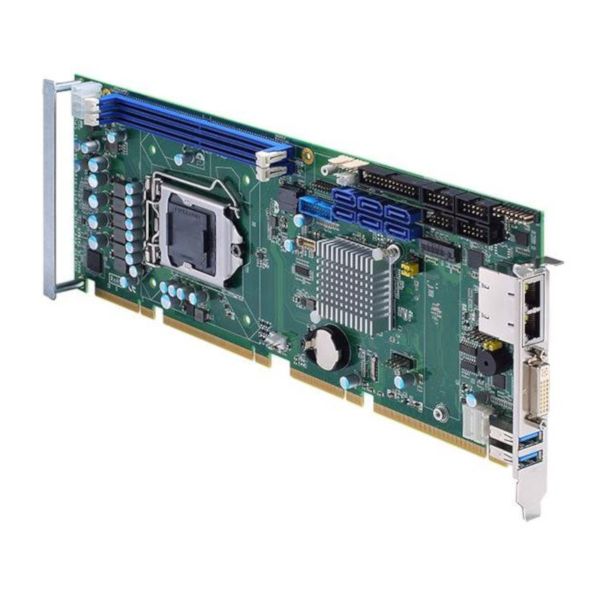

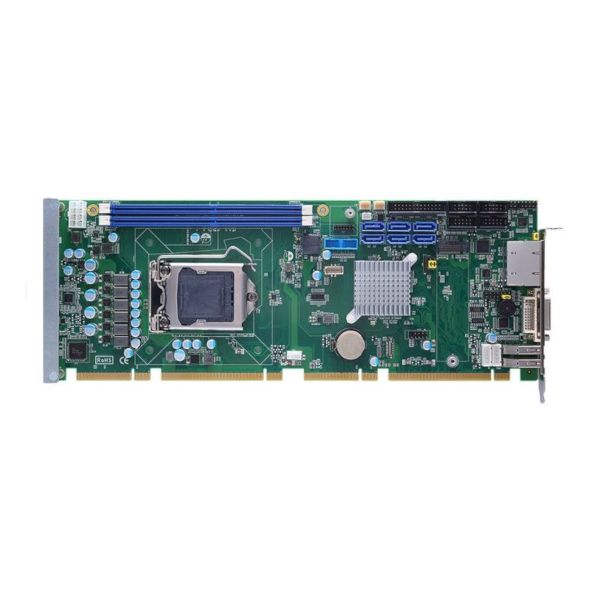

MotherBoard Specifications:

Motherboard Model
Motherboard Type: Single Board Computer (SBC)
Long Production Cycle
Long Life: YES
EOL Date: Q1 2029
PICMG: 1.3
Supported CPU
Number of Processors: 1
Processor Type: 8th and 9th Gen Core i7/i5/i3 (LGA1151)
Chipset
Chipset: Intel Q370 Chipset
Memory
Memory Type: DDR4 2400MHz
Memory Type: Non-ECC
DIMMS: 2
Maximum Memory: 32GB
On Board Audio
Audio Type: No Onboard Audio
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: DVI-I
DVI-I Out: 1
LAN
LAN Ports: 2
LAN Type: 1GbE + 1GbE
LAN Chipset: Intel® i211AT
Second LAN Chipset: Intel® i219LM
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 6
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 1
M.2 Slot #1 Specs
PCIe Signal
2280 - 22 mm x 80 mm.

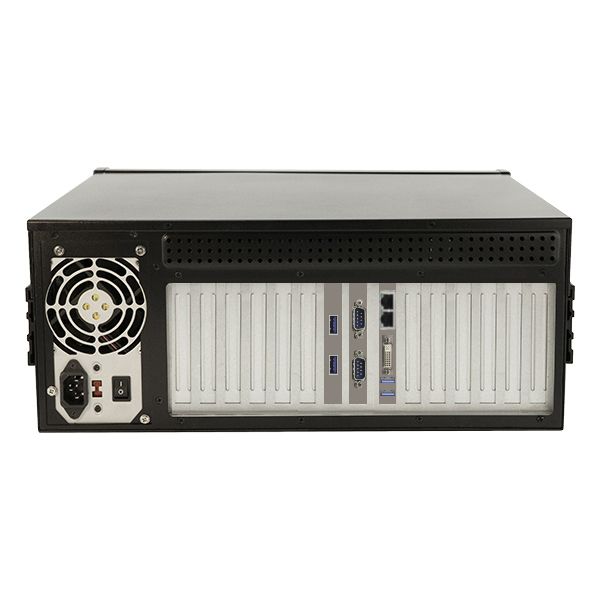

Rear IO
USB 3.2 Gen 2 Type A Ports (on IO): 2
Headers
USB 2.0 Ports (on Headers): 1
USB 3.2 Gen 1 Ports (on Headers): 1
Serial (via Headers): 2
Serial 232/422/485 Ports: 2
Parallel Ports: 1
FAN Connectors: 3
Audio on Headers
PS/2 Combo (Mouse/Keyboard) on Headers
TPM Support: Via 2.0 Header
Management Features
AMT
vPRO
Watch Dog
Environmental
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
High Humidity: 95%
Low Humidity: 10%
Operating System Support
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
Windows 10 IoT Value
Windows 10 IoT Ent
Windows 10 IoT Value 2019 LTSC
Windows 10 IoT Ent 2019 LTSC
Windows 10 IoT 2021 LTSC Value
Windows 10 IoT 2021 LTSC High End
Windows 11 Home (64 Bit)
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows 11 IoT 2024 LTSC Value
Windows 11 IoT 2024 LTSC High End
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
CE
Other Features
Motherboard Warranty: 1 Year

Chassis Specifications:

Available Downloads

Looking for something different? We offer 100% custom desktops!

Nobody else can beat it The Superlogics Warranty

Configured Price

$1,505.00

Qty

Save this Configuration

Configuration Comments

Request Configuration Quote

Open Datasheet in "Pop Up" Window

Assembly Time as Configured

11 business days

Estimated Ship Date If Ordered Today

April 9, 2025

Configuration Summary

4U Rack Mount Industrial PC featuring Long Production Cycle Motherboard Through Q1 2029 with Intel Q370 Chipset 8th and 9th Gen Core i7/i5/i3 (LGA1151)

G5400 - 3.7GHz Intel Pentium Gold CPU - Dual Core, 4MB Cache, UHD Graphics 610 (54W) (ERM)

8GB DDR4 2666MHz RAM

PICMG 1.3 Backplane with 1 x PCIe x16, 3 x PCIe X1 and 8 x PCI Slots

1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue

400W Power Supply

One-Year Depot Warranty

External Components
