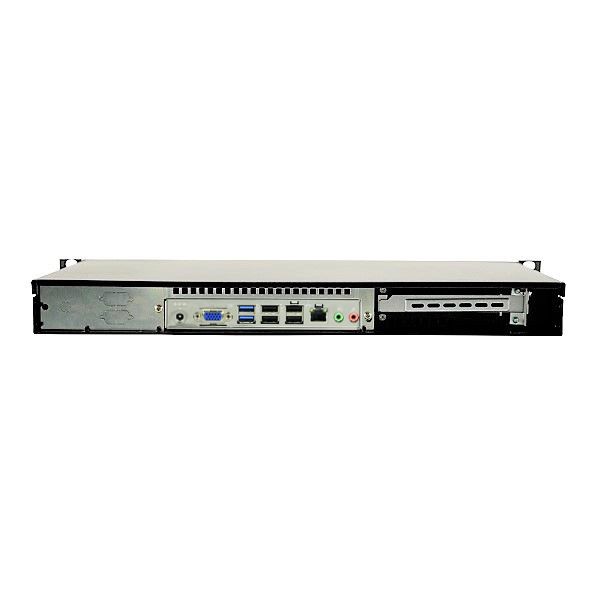

SL-1U-LL1900J-GC
1U Rack Mount Industrial PC - Rackmount featuring Intel Celeron SoC, Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W, 1x 1GbE (10/100/1000) LAN, 6x Serial, Up to 8GB RAM, 9x USB 2.0 Ports ( 2 Front, 5 Rear, 2 Internal Headers ), 1x USB 3.2 Gen 1 Port( 1 Rear ), .
Type:
- 1U Rack Mount Industrial PC
- Depth: 11", Max Card Depth: 6.5 inches"
Motherboard:
- Featuring Intel Celeron SoC and Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
- LAN: 1x Ports (1GbE (10/100/1000))
- Video: VGA
- Audio: Realtek® ALC662 HD Audio
- Ports:
9x USB 2.0 Ports ( 2 Front, 5 Rear, 2 Internal Headers )
1x USB 3.2 Gen 1 Port( 1 Rear )
6x COM Ports (RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)
Also Included:
- Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
- Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MiniITX
- Fanless
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: Intel Celeron J1900 Processor (2.0GHz Quad Core, Burst 2.42GHz) TDP 10W
- Chipset
- Chipset: Intel Celeron SoC
- Memory
- Memory Type: DDR3 1333MHz
- Memory Type: Non-ECC
- DIMMS: 1
- Maximum Memory: 8GB
- On Board Audio
- Audio Type: Realtek® ALC662 HD Audio
- On Board Video
- Video Chipset: Supported by CPU - see Embedded CPU Information
- Video on IO: VGA
- VGA Port Out: 1
- LAN
- LAN Ports: 1
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Realtek® RTL8111G
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 1
- Mini PCIe
- mini PCIe
- USB and PCIe signals (Internal)
- half and/or full size mini PCIe card: full size
- SIM Card Slot On Motherboard: SIM
- M.2 Slot Specs
- M.2 Slot #1 Specs
- M.2 SATA SSD
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- Rear IO
- USB 2.0 Ports (on IO): 5
- USB 3.2 Gen 1 Type A Ports (on IO): 1
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 4
- Serial (via Headers): 6
- FAN Connectors: 1
- Management Features
- Watch Dog
- Environmental
- Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 7 Ultimate (64-bit)
- Windows 7 Pro (32-bit)
- Windows 7 Pro (64-bit)
- Windows 7 Pro (FES) 32-Bit
- Windows 7 Pro (FES) 64-Bit
- Windows 7 PRO (FES) DGS 32-BIT
- Windows 7 PRO (FES) DGS 64-BIT
- SL-Windows 10PRO to 7PRO 32-bit
- SL-Windows 10PRO to 7PRO 64-bit
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows 8.1 (32-bit)
- Windows 8.1 (64-bit)
- Windows 8.1 Pro (32-bit)
- Windows 8.1 Pro (64-bit)
- Windows Embedded 8 (32-bit)
- Windows Embedded 8 (64-bit)
- Windows 10 Home (32 Bit)
- Windows 10 Home (64 Bit)
- Windows 10 Pro (32 Bit)
- Windows 10 Pro (64-Bit)
- SL-Windows 11PRO to 10PRO 32bit
- SL-Windows 11PRO to 10PRO 64bit
- Windows 10 IoT Entry
- Windows 10 IoT Entry 2019 LTSC
- Windows 10 IoT 2021 LTSC Entry
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Other Features
- Other Features:
M.2 slot supports SATA-Type SSD (2242/2260)
Mini-PCIe slot supports WiFi Signal Only.
Memory Support Upto DDR3L 1333
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 1U Rackmount
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: Mini ITX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 1
- Max Card Depth: 6.5 inches"
- Internal 2.5" Bays: 2
- Front Ports
- USB 2.0 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 2
- Included Fans: 2
- Physical
- Depth: 11"
- Depth (Inches): 11
- Width: 19.10"
- Height: 1.75"
- Shipping Box - Depth: 22"
- Shipping Box - Width: 15"
- Shipping Box - Height: 5"
- Shipping Weight: 15lbs
- Other Features
- Chassis Warranty: 1 Year
CASE-1U-D-118V2-ITX
