SL-1U-LL2930A-GC-NF
1U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q1 2028) with Intel Celeron SoC, Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W, 1x 1GbE (10/100/1000) LAN, 5x Serial, Up to 8GB RAM, 6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers ), Power Supply 60W AC/DC Power Adapter Included.
FANLESS Rackmount!
Type:
- 1U Rack Mount Industrial PC
- Depth: 11", Max Card Depth: 8.5"
Motherboard:
- Featuring Intel Celeron SoC and Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W
- Long Production Cycle Motherboard (Through Q1 2028)
- LAN: 1x Ports (1GbE (10/100/1000))
- Video: VGA + HDMI
- Audio: 5.1 channel by Realtek® ALC662
- Ports:
6x USB 2.0 Ports ( 2 Front, 2 Rear, 2 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers )
5x COM Ports (4 RS232 Internal Headers, 1 RS232/422/485 Internal Headers)
1x Parallel Port (Headers)
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)
Also Included:
- Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
- Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
- Power Supply: 60W AC/DC Power Adapter Included
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty

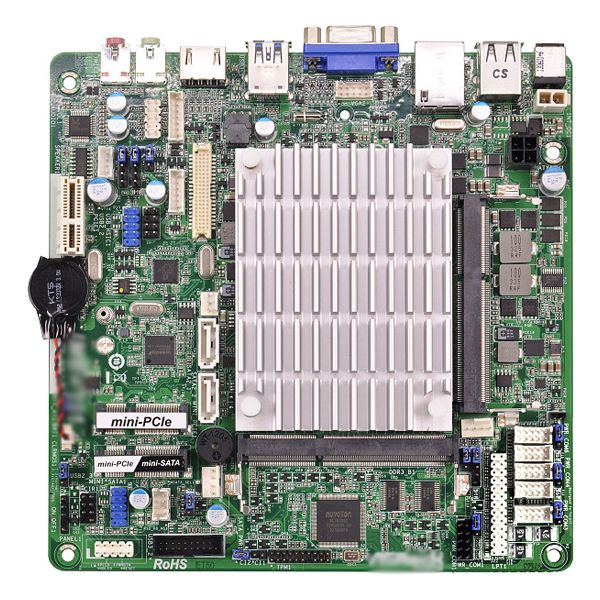

MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MiniITX
- Fanless
- Long Production Cycle
- Long Life: YES
- EOL Date: Q1 2028
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: Intel Celeron N2930 Processor (1.83GHz Quad Core, Burst 2.16GHz) TDP 7.5W
- Chipset
- Chipset: Intel Celeron SoC
- Memory
- Memory Type: SO DIMM DDR3 1333MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 8GB
- On Board Audio
- Audio Type: 5.1 channel by Realtek® ALC662
- On Board Video
- Video Chipset: Intel® 7th generation (Gen 7) Graphics
- Video on IO: VGA + HDMI
- VGA Port Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 1
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Realtek® 8111DL
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA II Ports (3GB): 2
- Mini PCIe
- mini PCIe
- mSATA
- USB and PCIe signals (Internal)
- half and/or full size mini PCIe card: full size
- half and/or full size mini PCIe card: half size
- M.2 Slot Specs

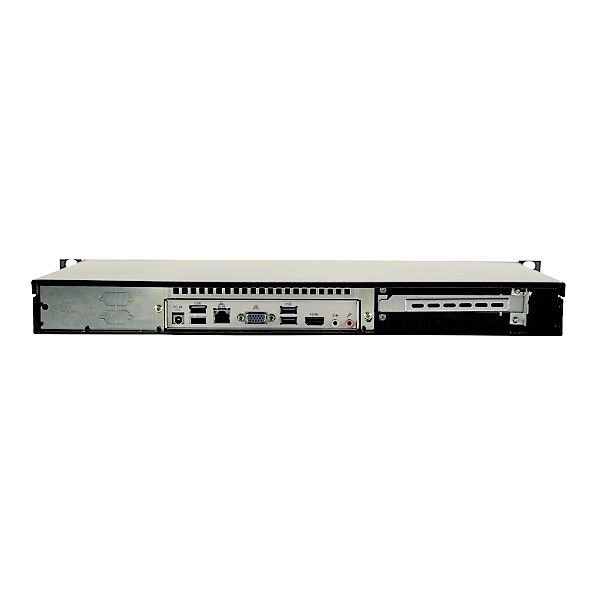

- Rear IO
- USB 2.0 Ports (on IO): 2
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 4
- USB 3.2 Gen 1 Ports (on Headers): 2
- Serial (via Headers): 4
- Serial 232/422/485 Ports: 1
- Parallel Ports: 1
- FAN Connectors: 3
- Digital I/O (8 Bit) On Headers
- Audio on Headers
- LVDS
- Environmental
- Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 7 Ultimate (64-bit)
- Windows 7 Pro (32-bit)
- Windows 7 Pro (64-bit)
- Windows 7 Pro (FES) 32-Bit
- Windows 7 Pro (FES) 64-Bit
- Windows 7 PRO (FES) DGS 32-BIT
- Windows 7 PRO (FES) DGS 64-BIT
- SL-Windows 10PRO to 7PRO 32-bit
- SL-Windows 10PRO to 7PRO 64-bit
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows 8.1 (32-bit)
- Windows 8.1 (64-bit)
- Windows 8.1 Pro (32-bit)
- Windows 8.1 Pro (64-bit)
- Windows Embedded 8 (32-bit)
- Windows Embedded 8 (64-bit)
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- SL-Windows 11PRO to 10PRO 64bit
- Windows 10 IoT Entry
- Windows 10 IoT Entry 2019 LTSC
- Windows 10 IoT 2021 LTSC Entry
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Other Features
- Other Features:
1x PCI Express 2.0 x1 Slot
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year

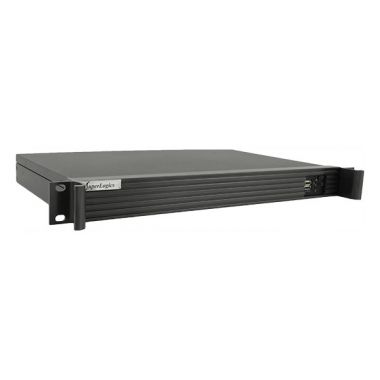

Chassis Specifications:
- General
- Form Factor: 1U Rackmount
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: Mini ITX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 1
- Max Card Depth: 8.5"
- Internal 2.5" Bays: 2
- Front Ports
- USB 2.0 Ports (Front): 2
- Physical
- Depth: 11"
- Depth (Inches): 11
- Width: 19.10"
- Height: 1.75"
- Shipping Box - Depth: 22"
- Shipping Box - Width: 15"
- Shipping Box - Height: 5"
- Shipping Weight: 15lbs
- Other Features
- Chassis Warranty: 1 Year
- Power
- Built-in Chassis Power Supply: 60W AC/DC Power Adapter Included
