SL-2U-WS-PD-C236SAE-WD

Name: SL-2U-WS-PD-C236SAE-WD
SKU: SL-2U-WS-PD-C236SAE-WD

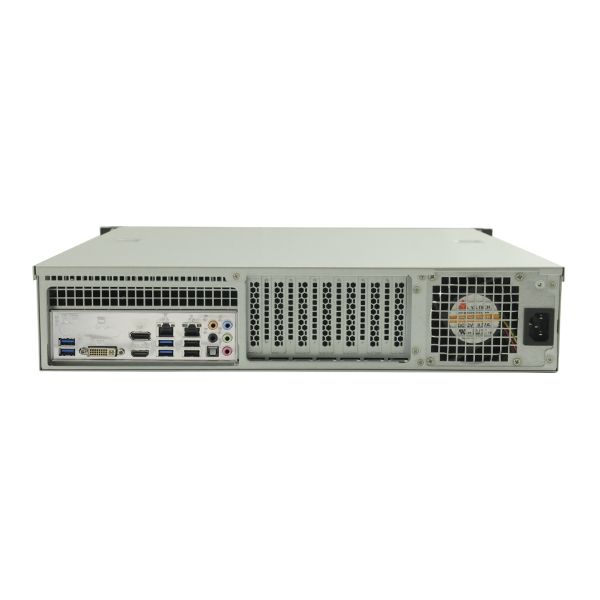

2U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q4 2024) with Intel C236 Chipset, Xeon E3-1200v5/v6 (LGA1151, ‘Skylake, Kaby Lake’), 2x 1GbE + 1GbE LAN, 2x Serial, Up to 64GB RAM, 8x USB 2.0 Ports ( 2 Rear, 6 Internal Headers ), 6x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear, 2 Internal Headers ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 7x Expansion Slots.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

2U Rack Mount Industrial PC
Depth: 18", Max Card Depth: 12.25", Locking Front Bezel

Motherboard:

Featuring Intel C236 Chipset and Xeon E3-1200v5/v6 (LGA1151, ‘Skylake, Kaby Lake’) processor
Long Production Cycle Motherboard (Through Q4 2024)
Low Profile Slots:
2 - PCIe x16
3 - PCIe x1
2 - PCI
LAN: 2x Ports (1GbE + 1GbE)
RAID: 0,1 via LSI MegaRAID
Video: DVI-D + HDMI + DisplyPort
Audio: 7.1 Channel HD Audio by Realtek® ALC888S
Ports:
8x USB 2.0 Ports ( 2 Rear, 6 Internal Headers )
6x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear, 2 Internal Headers )
2x USB 3.2 Gen 2 Ports ( 2 Rear )
2x COM Ports (RS232 Internal Headers)
See specifications for more ports
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)

Also Included:

Processor: G4400 - 3.3GHz Intel Pentium Dual Core - 3MB Cache, HD Graphics 510 (54W) (ERM) or Better
Memory: 8GB DDR4 2666MHz RAM
Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
Power Supply: 400W Power Supply
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: ATX
Long Production Cycle
Long Life: YES
EOL Date: Q4 2024
Supported CPU
Number of Processors: 1
Processor Type: Xeon E3-1200v5/v6 (LGA1151, ‘Skylake, Kaby Lake’)
Chipset
Chipset: Intel C236 Chipset
Memory
Memory Type: DDR4 2133MHz ECC
Memory Type: ECC Unbuffered
DIMMS: 4
Maximum Memory: 64GB
On Board Audio
Audio Type: 7.1 Channel HD Audio by Realtek® ALC888S
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: DVI-D + HDMI + DisplyPort
DVI-D Out: 1
Display Port Out: 1
HDMI Out: 1
LAN
LAN Ports: 2
LAN Type: 1GbE + 1GbE
LAN Chipset: Intel® i210AT
Second LAN Chipset: Intel® i219LM
Wireless LAN: No Integrated WLAN
Drive Interface
SATA III Ports (6GB): 8
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 2
PCI Express x1 Slots On Motherboard: 3
PCI Slots (Conventional 32-Bit): 2
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 1
M.2 Slot #1 Specs
PCIe Signal
2242 - 22 mm x 42 mm.
2260 - 22 mm x 60 mm.
2280 - 22 mm x 80 mm.
Rear IO
USB 2.0 Ports (on IO): 2
USB 3.2 Gen 1 Type A Ports (on IO): 2
USB 3.2 Gen 2 Type A Ports (on IO): 2
Headers
USB 2.0 Ports (on Headers): 6
USB 3.2 Gen 1 Ports (on Headers): 4
Serial (via Headers): 2
FAN Connectors: 5
Chassis Intrusion
TPM Support: Via 2.0 Header
Management Features
vPRO
Watch Dog
Environmental
Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
High Humidity: 90%
Low Humidity: 5%
Operating System Support
Windows 7 Ultimate (64-bit)
Windows 7 Pro (32-bit)
Windows 7 Pro (64-bit)
Windows 7 Pro (FES) 32-Bit
Windows 7 Pro (FES) 64-Bit
Windows 7 PRO (FES) DGS 32-BIT
Windows 7 PRO (FES) DGS 64-BIT
SL-Windows 10PRO to 7PRO 32-bit
SL-Windows 10PRO to 7PRO 64-bit
Windows Embedded 7 (32-Bit)
Windows Embedded 7 (64-Bit)
Windows 8.1 (32-bit)
Windows 8.1 (64-bit)
Windows 8.1 Pro (32-bit)
Windows 8.1 Pro (64-bit)
Windows 10 Home (64 Bit)
Windows 10 Pro (64-Bit)
Windows 10 Pro WS (64-Bit)
SL-Windows 11PRO to 10PRO 64bit
Windows 10 IoT Value
Windows 10 IoT Ent
Windows 10 IoT Value 2019 LTSC
Windows 10 IoT Ent 2019 LTSC
Windows 10 IoT 2021 LTSC Value
Windows 10 IoT 2021 LTSC High End
Windows Server 2012
Windows Server 2016 STD
Windows Server 2019 Std
RED HAT Enterprise LINUX SERVER STANDARD
LINUX Ubuntu Desktop
Ubuntu Server Edition
VMWare Compatible
Compliance of Component
UL
CE
RoHS
FCC
Other Features
Other Features:
PCI-E
- 2 PCI-E 3.0 x16,
- 3 PCI-E 3.0 x12 - 5V PCI 32bit
- ***2 PCIe x16 slots are running at x16/NA or x8/x8 ***
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year

Chassis Specifications:

General
Form Factor: 2U Rackmount
Color: Black & Silver
Material: Metal/Steel
Material Thickness: 1mm
Motherboard Compatibility: ATX
Slide Rails: Optional
Expansion
Low Profile Slots: 7
Max Card Depth: 12.25"
External 5.25" Bays: 1
Internal 3.5" Bays: 2
External 3.5" Bays: 1
Internal 2.5" Bays: 1
Front Ports
USB 3.2 Ports (Front): 2
Cooling System
Maximum Fan Count: 3
Included Fans: 1
Physical
Depth: 18"
Depth (Inches): 18
Width: 16.90"
Height: 3.50"
Shipping Box - Depth: 20"
Shipping Box - Width: 40"
Shipping Box - Height: 40"
Shipping Weight: 35lbs
Compliance of Component
RoHS
Other Features
Chassis Warranty: 1 Year
