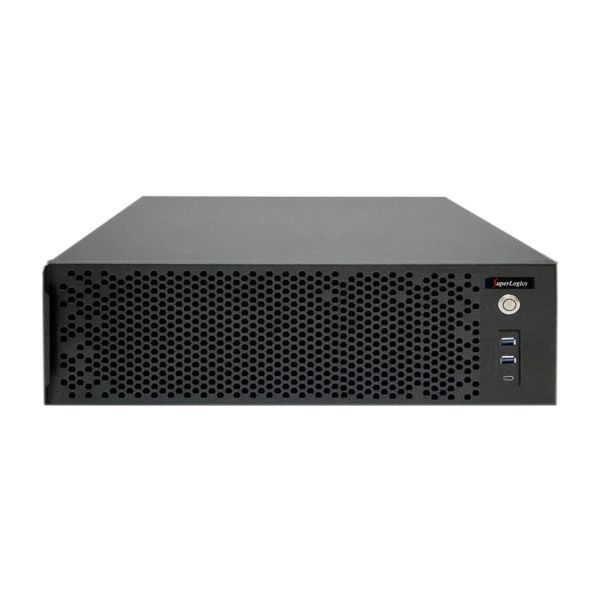

SL-3U-WRX80-GM62-SS
3U Rack Mount Server - Rackmount featuring AMD WRX80, AMD Socket sWRX8 for Ryzen™ Threadripper™ PRO Series, 4x 10GbE + 10GbE + 1GbE + IPMI LAN, 1x Serial, Up to 2048GB RAM, 4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Internal Headers ), 5x USB 3.2 Gen 2 Ports ( 5 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Rear ), 7x Expansion Slots.
Type:
- 3U Rack Mount Server
- Depth: 14.89", Max Card Depth: 324mm"
Motherboard:
- Featuring AMD WRX80 and AMD Socket sWRX8 for Ryzen™ Threadripper™ PRO Series processor
- Full Height Slots:
7 - PCIe x16 - LAN: 4x Ports (10GbE + 10GbE + 1GbE + IPMI)
- RAID: 0,1 NVMe Only
- Video: VGA
- Audio: Realtek® ALC4080 codec
- Ports:
4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Internal Headers )
5x USB 3.2 Gen 2 Ports ( 5 Rear )
1x USB 3.2 Gen 2 Type-C Port ( 1 Rear )
1x COM Port (RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 10ºC to 40ºC (50ºF to 104ºF)
Also Included:
- Processor: i7-9800X - 3.8GHz (up to 4.4GHz) Intel Octa (8) Core CPU - 16.5MB Cache, No Onboard Graphics (165W)
- Memory: 2 x 8GB DDR4 3200MHz OC RAM
- Hard Drive: 1TB PCIe 4.0 NVMe SSD M.2 7,000MBps/5,000MBps - Samsung 980 PRO
- Add-In Graphic Card: NVIDIA Quadro T400 4GB 64-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 3 x Mini DisplayPort 1.4 - No Win 7 Support!
- Power Supply: 750W SFX Form Factor Auto-Switching Power Supply, Fully Modular, 80+ Gold
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: SSI CEB
- Supported CPU
- Number of Processors: 1
- Processor Type: AMD Socket sWRX8 for Ryzen™ Threadripper™ PRO Series
- Chipset
- Chipset: AMD WRX80
- Memory
- Memory Type: DDR4 3200MHz
- Memory Type: ECC Registered
- DIMMS: 8
- Maximum Memory: 2048GB
- On Board Audio
- Audio Type: Realtek® ALC4080 codec
- On Board Video
- Video Chipset: ASPEED AST2600 BMC
- Video on IO: VGA
- VGA Port Out: 1
- LAN
- LAN Ports: 4
- LAN Type: 10GbE + 10GbE + 1GbE + IPMI
- LAN Chipset: Intel® X550-AT2 10GBase-T
- Second LAN Chipset: Intel® X550-AT2 10GBase-T
- Third LAN Chipset: Intel® i210
- Fourth LAN Chipset: 10/100/1000 management LAN
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 4
- SAS 6G Ports: 3
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 7
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 2
- M.2 Slot #1 Specs
- M.2 SATA SSD
- PCIe Signal
- 2242 - 22 mm x 42 mm.
- 2280 - 22 mm x 80 mm.
- M.2 Slot #2 Specs
- M.2 SATA SSD
- PCIe Signal
- 2242 - 22 mm x 42 mm.
- 2280 - 22 mm x 80 mm.
- Rear IO
- USB 3.2 Gen 2 Type A Ports (on IO): 5
- USB 3.2 Gen 2 Type C Ports (on I/O): 1
- Audio on IO
- Headers
- USB 3.2 Gen 1 Ports (on Headers): 4
- Serial (via Headers): 1
- FAN Connectors: 9
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature: 10ºC to 40ºC (50ºF to 104ºF )
- High Humidity: 95%
- Low Humidity: 20%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- SL-Windows 11PRO to 10PRO 64bit
- Windows 11 Pro (64 Bit)
- Windows 11 Pro for WS (64 Bit)
- Windows 11 IoT 2024 LTSC High End
- RED HAT Enterprise LINUX SERVER BASIC
- RED HAT Enterprise LINUX SERVER STANDARD
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- CE
- Other Features
- Features: Expansion SlotsSlot_7: 1 x PCIe x16 (Gen4 x16) slot
Slot_6: 1 x PCIe x16 (Gen4 x16) slot
Slot_5: 1 x PCIe x16 (Gen4 x16) slot
Slot_4: 1 x PCIe x16 (Gen4 x16) slot
Slot_3: 1 x PCIe x16 (Gen4 x16) slot
Slot_2: 1 x PCIe x16 (Gen4 x8) slot
Slot_1: 1 x PCIe x16 (Gen4 x16) slotVideoIntegrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bppTPM - Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 3U Rackmount
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: E-ATX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 8
- Max Card Depth: 324mm"
- Internal 2.5" Bays: 1
- Front Ports
- USB 3.2 Ports (Front): 2
- USB Type-C (Front): 1
- Cooling System
- Maximum Fan Count: 3
- Physical
- Depth: 14.89"
- Width: 17"
- Height: 5.22"
- Shipping Box - Depth: 21"
- Shipping Box - Width: 19"
- Shipping Box - Height: 9"
- Shipping Weight: 28lbs
- Other Features
- Features:
- 8x full height PCIe card slot cutouts
- Maximum card height: 115mm
- Maximum card length with 3x Noctua A12x25 fans: 324mm
- Maximum card length with Asetek 360mm AIO and Noctua A12x25 fans: 297mm
- Maximum card length with no fans / no AIO cooler: 349mm
- Chassis Warranty: 1 Year
