SL-4U-GZ790A-SA

Name: SL-4U-GZ790A-SA
SKU: SL-4U-GZ790A-SA

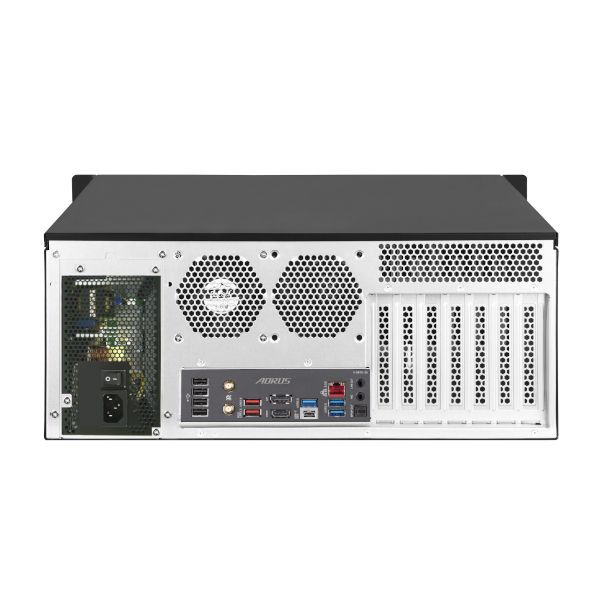

4U Rack Mount Industrial PC - Rackmount featuring Intel Z790 Chipset, 13th Gen Intel® Core™, Pentium® Gold and Celeron®, 1x 2.5GbE (10/100/1000/2500) LAN, WIFI,Up to 192GB RAM, 8x USB 2.0 Ports ( 4 Rear, 4 Internal Headers ), 5x USB 3.2 Gen 1 Ports ( 2 Front, 3 Rear ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers ), 3x Expansion Slots.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Type:

4U Rack Mount Industrial PC
Depth: 18.43", Max Card Depth: Length w/o expansion card retainer: 426mm, Length w/ expansion card retainer: 337mm", Locking Front Bezel

Motherboard:

Featuring Intel Z790 Chipset and 13th Gen Intel® Core™, Pentium® Gold and Celeron® processor
Full Height Slots:
3 - PCIe x16
LAN: 1x Ports (2.5GbE (10/100/1000/2500))
WiFi: Wi-Fi 6E + BT
RAID: 0,1,5,10
Video: DisplayPort + HDMI
Audio: Realtek® Audio CODEC
Ports:
8x USB 2.0 Ports ( 4 Rear, 4 Internal Headers )
5x USB 3.2 Gen 1 Ports ( 2 Front, 3 Rear )
2x USB 3.2 Gen 2 Ports ( 2 Rear )
1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers )
See specifications for more ports
Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

Also Included:

Processor: i5-13400 - 2.50GHz (up to 4.60GHz) Intel Core CPU - 10 Cores, 20MB Cache, UHD Graphics 730 (Base 65W, Max 154W) (ERM)
Memory: 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM
Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
Power Supply: 400W Power Supply
Operating System: Not Included - See options below
Warranty: One-Year Depot Warranty

Configure

Expedite

None show Included

Rush Order - Rush order handling, assembly and testing. Shipping not included. show $100.00

Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

Processor

i5-13400 - 2.50GHz (up to 4.60GHz) Intel Core CPU - 10 Cores, 20MB Cache, UHD Graphics 730 (Base 65W, Max 154W) (ERM) show $300.00

i7-13700 - 1.50GHz (up to 5.20GHz) Intel Core CPU - 16 Cores (8 P Cores + 8 E Cores), 30 MB Cache, UHD Graphics 770 (Base 65W, Max 219W) (ERM) show $560.00

i7-13700K - 2.50GHz (up to 5.40GHz) Intel Core CPU - 16 Cores (8 P Cores + 8 E Cores), 24 MB Cache, UHD Graphics 770 (Base 125W, Max 253W) show $561.00

i9-13900 - 2.0GHz (up to 5.60GHz) Intel Core CPU - 24 Cores (8 P Cores + 16 E Cores), 32 MB Cache, UHD Graphics 770 (Base 65W, Max 219W) (ERM) show $951.00

i9-13900K - 2.20GHz (up to 5.80GHz) Intel Core CPU - 24 Cores (8 P Cores + 16 E Cores), 36 MB Cache, UHD Graphics 770 (Base 125W, Max 253W) show $779.00

G6900- 3.40GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 710 (46W) (ERM) show $105.00

G7400- 3.70GHz Intel Pentium Gold CPU - Dual Core, 6MB Cache, UHD Graphics 710 (Base 46W) (ERM) show $146.00

i3-13100 - 3.40GHz (up to 4.50GHz) Intel Core CPU - 4 Core, 12MB Cache, UHD Graphics 730 (Base 60W, Max 89W) (ERM) show $236.00

Memory

x 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $35.00

x 16GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $69.00

x 32GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM show $129.00

x 32GB (2 x 16GB) DDR5 6000MHz SDRAM Memory Kit show $215.00

x 64GB (2 x 32GB) DDR5 6000MHz SDRAM Memory Kit show $378.00

CD/DVD/OpticalDrive

None show Included

External USB DVD ReWriteable Drive show $51.00

5.25" CD/DVD Burner show $31.00

5.25" Blu-Ray 16x Readable & ReWriteable Drive show $148.00

Removable Drive Bay

1x 3.5" Hard Drive Aluminum Removable Bay (Require a 5.25" external bay) show $53.00 each

Replacement Caddy for SL-HDD-MR-SATA-MIL HDD Rack show $33.00 each

3 x 3.5 / 2.5" Hot-swap SATA HDD Bays (Requires Two 5.25" External Bays) show $152.00 each

Add an Enterprise 2 x 2.5" SATA Hard Drive or SSD Mobile Rack with Full Metal Construction with Lock - show $102.00 each

Replacement Tray for SL-HDD-MR-1FDD-2SSD..7-9.5mm Height, show $48.00 each

4 x 2.5" 5mm-15mm HDD/SSD in 5.25" Hot Swap Rugged Full Metal Cage show $208.00 each

4 x 2.5" 5mm-15mm HDD/SSD in 5.25" Hot Swap Rugged Full Metal Cage with Locks. show $280.00 each

Removable M.2 NVMe SSD to PCIe 4.0 x4 Mobile Rack Enclosure for PCIe Expansion Slot show $160.00 each

Additional Hard Drives

250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980 show $83.00 each

500GB NVMe SSD M.2 3.1GB/2.6GB - Samsung 980 show $105.00 each

1TB PCIe 5.0 NVMe SSD M.2 5,000/4,200MB/s - Samsung 990 EVO show $111.00 each

2TB PCIe 5.0 NVMe SSD M.2 5,000/4,200MB/s - Samsung 990 EVO show $172.00 each

1TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $161.00 each

2TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $215.00 each

4TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO show $401.00 each

4TB SSD M.2 NVMe SSD - 7300MB/6600MB - WD Black show $424.00 each

240GB SATA 3 2.5" SSD - 500/350MB Read/Write or greater. show $48.00 each

250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $75.00 each

500GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $91.00 each

1TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $170.00 each

2.0TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $240.00 each

4TB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO show $402.00 each

1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue show $88.00 each

2.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E2 Series show $170.00 each

4.0TB SATA 6Gb/s 7200RPM 128MB 3.5" - EXOS 7E8 Series show $218.00 each

8.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - EXOS 7E8 Series show $323.00 each

12.0TB SATA 6Gb/s 7200RPM 256MB 3.5" - WD GOLD Series show $428.00 each

14.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $435.00 each

16.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $480.00 each

18.0TB SATA 6Gb/s 7200RPM 512MB 3.5" - WD GOLD Series show $660.00 each

2.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $122.00 each

4.0TB SATA 6.0Gb/s 5400 RPM 256 MB 3.5" - WD Red - Optimized for 2-8 drive RAID and NAS show $153.00 each

4.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $136.00 each

6.0TB SATA 6Gb/s 5400RPM 256 MB 3.5" - WD Purple for Surveillance Storage show $182.00 each

Raid Controller

Configure RAID 0 (Striping) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 1 (Mirroring) - REQUIRES 2 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 5 (Striping w/ Distributed Parity) - REQUIRES 3 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Configure RAID 10 (Striping across Mirrors) - REQUIRES 4 SATA DRIVES OF SAME MODEL AND SIZE show $0.00 each

Cable

Add 4 USB 2.0 Ports via connections from onboard header. show $12.00 each

TPM 2.0 Module - SPI Capable, 2x6 pin SLB9670 FW7.63 Controller TPM Header Key, SPI Bus. show $19.00 each

Add-On Card Model THUNDERBOLT 4 AIC. Supports 40 Gbps bi-directional bandwidth per channel with Thund show $152.00 each

10ft High Speed 18Gbps HDMI Cable, HDR - Black show $14.00 each

3 ft HDMI® to DVI-D Cable - M/M show $8.00 each

6 ft HDMI® to DVI-D Cable - M/M show $10.00 each

Plug-In Boards

Serial PCIe Card - 2 Ports, Full Height or Low Profile show $23.00 each

2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers show $94.00 each

Serial PCIe Card with Fan-out Cable - 4 Ports, Full Height and Low Profile show $43.00 each

Parallel PCIe Card - 1 Port, Full Height or Low Profile show $31.00 each

Parallel PCIe Card with EPP mode - 1-Port, Full Height show $61.00 each

4-Port USB 3.2 Gen 1 PCIe Card - PCIe x1, Full-Height Only show $30.00 each

FireWire 400 PCIe x1 - 2 Ports (1394a) - Full Height or Low Profile show $85.00 each

FireWire 800 PCIe x1 - 3 Ports (1394b) - Full Height or Low Profile show $84.00 each

FireWire 800 PCIe x1 - 3-port FireWire 800 - 2 x 9-pin IEEE 1394b, 1 x 6-pin IEEE 1394b - Full Height show $85.00 each

Networking

PCIe x1 - 10/100/1000Mbps Single Port Network Adapter w/ Realtek RTL8111 - Full Height or Low Profile show $36.00 each

PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile show $250.00 each

PCIe x4 - 10/100/1000Mbps Quad Port Network Adapter - Full Height or Low Profile show $243.00 each

PCIe x1 - 10/100/1000/2500Mbps Single Port Network Adapter - Full Height or Low Profile show $109.00 each

PCIe x4 - 10/100/1000/2500Mbps Single Port Network Adapter, 2.5GBASE-T/NBASE-T - Full Height or Low Pr show $46.00 each

PCIe x4 - 100/1000/2500/5000Mbps Single Port Network Adapter - Full Height or Low Profile show $120.00 each

PCIe x4 - 10Gbps Dual Port Network Adapter - Full Height or Low Profile show $284.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $712.00 each

PCIe x8 - 10Gbps Quad Port Network Adapter - Low Profile & Full Height show $857.00 each

Power Supply

400W Power Supply show $87.00

600W Power SupplyPart Delay: ETA December 30, 2024 show $121.00

850W ATX12V / EPS12V Full Modular Power Supply - 80+ Gold Certified show $232.00

1200W 80 PLUS GOLD ATX3.0 PCIE5 Modular Power Supply show $370.00

500W 80 PLUS GOLD Hot Swappable Redundant Digital Power Supply show $587.00

700W 80 PLUS GOLD Hot Swappable Redundant Digital Power Supply show $765.00

900W 80 PLUS GOLD Hot Swappable Redundant Digital Power Supply show $949.00

Monitors

None show Included

1U Rackmount 17" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits racks 18.5" - 27.6" DeepSpecial Order Item, Delivery approximately 3 weeks. show $952.00

1U Rackmount 17" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB KVM - Fits Racks 24" - 33" Deep show $1,482.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and touchpad (HDMI input show $1,058.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer. VGA + HDMI with HDMI Cable. (Short Depth: 18.1") with integrated keyboard and trackball (HDMI inpu show $1,112.00

1U Rackmount 19" Wide Screen (1440X900) LCD drawer (22.84" deep) with integrated keyboard and touchpad, and 8-port KVM (Cables not included) show $1,589.00

1U Rackmount 19" LCD Keyboard Drawer, VGA with USB notebook keyboard & touch pad - Fits 23.6"- 32.6" Deep Racks show $1,047.00

1U Rackmount 19" LCD Keyboard Drawer, notebook keyboard &..touch pad, 8 port USB/PS2 KVM - Fits 24" - 33" Deep Racks show $1,578.00

Keyboard/Mouse

USB Keyboard/Mouse - Black/Silver show $24.00 each

Wireless Keyboard/Mouse show $49.00 each

USB Keyboard: Medical Grade True Type 104 Key Layout - Waterproof, NEMA4X/IP66 show $118.00 each

USB Mouse: Medical Grade, 1000 DPI Optical Mouse with Scroll Wheel + 2 Button, Long Cable with Seal Ca show $97.00 each

RF Wireless Medical Grade Washable Keyboard - 99 US Key Layout Waterproof, NEMA4X show $178.00 each

RF Wireless Medical Grade Waterproof Mouse, Antimicrobial Product Protection, 1000 DPI Optical Mouse w show $138.00 each

1U Keyboard/Touchpad rackmount drawer - Fits 19" Deep Racks (Mount in the Front Only), USB-Connection. show $249.00 each

1U Short Depth Rackmount keyboard drawer w/ touchpad and latching drawer. 15.7" depth. show $369.00 each

1U Short Depth Rackmount keyboard drawer w/ trackball and latching drawer. 15.7" depth. show $423.00 each

External Power

Uninterruptable Power Supply - 550VA 300W Standby - 10 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P show $125.00 each

Uninterruptable Power Supply - 750VA 450W Standby - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P show $145.00 each

Smart LCD 1500VA 2U Rack/Tower Line-Interactive 120V UPS with LCD display, Expandable Runtime, USB & S show $595.00 each

Tripp Lite Uninterruptable Power Supply - 350VA, 120V AC, 180Watt, USB, 6 outlets show $95.00 each

Mounting Option

None show Included

22" Ball Bearing Sliding Rail Kit for 2U and 4U Rackmount Chassis show $110.00

* Required Fields

Technical Specifications

MotherBoard Specifications:

Motherboard Model
Motherboard Type: ATX
Supported CPU
Number of Processors: 1
Processor Type: 13th Gen Intel® Core™, Pentium® Gold and Celeron®
Chipset
Chipset: Intel Z790 Chipset
Memory
Memory Type: DDR5 4800MHz
Memory Type: Non-ECC
DIMMS: 4
Maximum Memory: 192GB
On Board Audio
Audio Type: Realtek® Audio CODEC
On Board Video
Video Chipset: Supported by CPU - depends on CPU selected
Video on IO: DisplayPort + HDMI
Display Port Out: 1
HDMI Out: 1
LAN
LAN Ports: 1
LAN Type: 2.5GbE (10/100/1000/2500)
LAN Chipset: Realtek® 2.5GbE LAN
Wireless LAN: Wi-Fi 6E + BT
Drive Interface
SATA III Ports (6GB): 6
RAID
RAID Type: Software RAID
RAID Levels Supported on Motherboard: 0, 1, 5, 10
Expansion Slots
PCI Express x16 Slots On Motherboard: 3
M.2 Slot Specs
Total M.2 NVMe SSD Slots: 4
M.2 Slot #1 Specs
PCIe Signal
2280 - 22 mm x 80 mm.
22110 - 22 mm x 110 mm.
M.2 Slot #2 Specs
PCIe Signal
2280 - 22 mm x 80 mm.
22110 - 22 mm x 110 mm.
M.2 Slot #3 Specs
PCIe Signal
2280 - 22 mm x 80 mm.
22110 - 22 mm x 110 mm.
M.2 Slot #4 Specs
M.2 SATA SSD
PCIe Signal
2280 - 22 mm x 80 mm.
22110 - 22 mm x 110 mm.
Rear IO
USB 2.0 Ports (on IO): 4
USB 3.2 Gen 1 Type A Ports (on IO): 3
USB 3.2 Gen 2 Type A Ports (on IO): 2
USB 3.2 Gen 2x2 Type C Ports (on I/O): 1
SPDIF Connector: 1
Audio on IO
Headers
USB 2.0 Ports (on Headers): 4
USB 3.2 Gen 1 Ports (on Headers): 2
USB 3.2 Gen 2 Type-C (on Headers): 1
Thunderbolt 3 via Header: 2
FAN Connectors: 6
Audio on Headers
TPM Support: Via 2.0 Header
Environmental
Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
High Humidity: 90%
Low Humidity: 5%
Operating System Support
SL-Windows 11PRO to 10PRO 64bit
Windows 10 IoT 2021 LTSC Value
Windows 10 IoT 2021 LTSC High End
Windows 11 Home (64 Bit)
Windows 11 Pro (64 Bit)
Windows 11 Pro for WS (64 Bit)
Windows 11 IoT 2024 LTSC Value
Windows 11 IoT 2024 LTSC High End
LINUX Ubuntu Desktop
Ubuntu Server Edition
Compliance of Component
CE
FCC
Other Features
Features:
Expansion Slots
CPU:1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Storage Interface
CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
* Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

If you have any questions, please discuss with our Sales Engineers.
Motherboard Warranty: 1 Year

Chassis Specifications:

General
Form Factor: 4U Rackmount
Color: Black
Material: Metal/Steel
Material Thickness: 1mm
Motherboard Compatibility: SSI EEB
Redundant Power Supply Capable
Slide Rails: Optional
Expansion
Full Height Slots: 7
Max Card Depth: Length w/o expansion card retainer: 426mm, Length w/ expansion card retainer: 337mm"
External 5.25" Bays: 2
Internal 2.5" Bays: 1
Front Ports
USB 3.2 Ports (Front): 2
USB Type-C (Front): 1
Front Audio Ports: 1
Cooling System
Maximum Fan Count: 4
Included Fans: 2
Physical
Depth: 18.43"
Width: 16.93"
Height: 6.93"
Shipping Box - Depth:
Shipping Box - Width:
Shipping Box - Height:
Shipping Weight: 25lbs
Other Features
Features:
Expansion card
- Length w/ expansion card retainer: 337mm
- Length w/o expansion card retainer: 426mm
- Width w/ GPU holder: 116mm
- Width w/o GPU holder: 154mm
Limitation of CPU cooler
- w/ GPU holder: 130mm
- w/o GPU holder: 148mm
Chassis Warranty: 1 Year

Looking for something different? We offer 100% custom desktops!

Nobody else can beat it The Superlogics Warranty

Configured Price

$1,765.00

Qty

Save this Configuration

Configuration Comments

Request Configuration Quote

Open Datasheet in "Pop Up" Window

Assembly Time as Configured

Configuration Summary

down
