SL-4U-TRX50-AERO-ST
4U Rack Mount Industrial PC - Rackmount featuring AMD TRX50, AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series, 2x 2.5GbE + 10GbE LAN, WIFI,Up to 1024GB RAM, 4x USB 2.0 Ports ( 4 Internal Headers ), 6x USB 3.2 Gen 1 Ports ( 2 Front, 4 Rear ), 4x USB 3.2 Gen 2 Ports ( 4 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers ), 2x USB 4 Type-C Ports ( 2 Rear ), 3x Expansion Slots.
Type:
- 4U Rack Mount Industrial PC
- Depth: 16.89", Max Card Depth: 375mm"
Motherboard:
- Featuring AMD TRX50 and AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series processor
- Full Height Slots:
3 - PCIe x16 - LAN: 2x Ports (2.5GbE + 10GbE )
- WiFi: Wi-Fi 7 + BT
- RAID: 0,1,10 and NVMe 0,1,10
- Video: None
- Audio: Realtek® ALC4080 codec
- Ports:
4x USB 2.0 Ports ( 4 Internal Headers )
6x USB 3.2 Gen 1 Ports ( 2 Front, 4 Rear )
4x USB 3.2 Gen 2 Ports ( 4 Rear )
1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers )
2x USB 4 Type-C Ports ( 2 Rear )
See specifications for more ports - Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)
Also Included:
- Processor: i7-9800X - 3.8GHz (up to 4.4GHz) Intel Octa (8) Core CPU - 16.5MB Cache, No Onboard Graphics (165W)
- Memory: 2 x 16GB DDR5 6000MHz ECCR RAM..
- Hard Drive: 1TB PCIe 4.0 NVMe SSD M.2 7,450/6,900MB/s - Samsung 990 PRO
- Add-In Graphic Card: NVIDIA Quadro T400 4GB 64-bit GDDR5 PCIe 3.0 x16 Workstation Video Card - 3 x Mini DisplayPort 1.4 - No Win 7 Support!
- Power Supply: 850W ATX12V / EPS12V Full Modular Power Supply - 80+ Gold Certified
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty

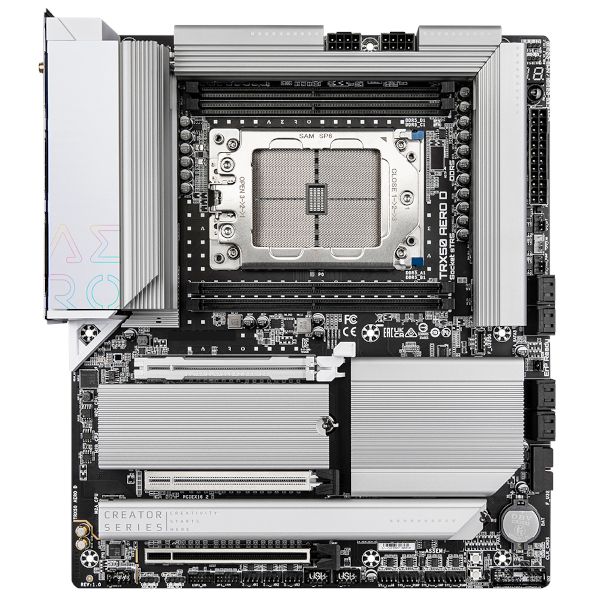

MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: Extended ATX
- Supported CPU
- Number of Processors: 1
- Processor Type: AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series
- Chipset
- Chipset: AMD TRX50
- Memory
- Memory Type: DDR5 4800MHz ECCR
- Memory Type: ECC Registered
- DIMMS: 4
- Maximum Memory: 1024GB
- On Board Audio
- Audio Type: Realtek® ALC4080 codec
- On Board Video
- Video Chipset: None
- Video on IO: None
- LAN
- LAN Ports: 2
- LAN Type: 2.5GbE + 10GbE
- LAN Chipset: Marvell® AQtion 10Gb Ethernet
- Second LAN Chipset: Realtek® 2.5GbE LAN
- Wireless LAN: Wi-Fi 7 + BT
- Drive Interface
- SATA III Ports (6GB): 8
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 3
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 4
- M.2 Slot #1 Specs
- PCIe Signal
- 2280 - 22 mm x 80 mm.
- M.2 Slot #2 Specs
- PCIe Signal
- 2280 - 22 mm x 80 mm.
- 22110 - 22 mm x 110 mm.
- M.2 Slot #3 Specs
- PCIe Signal
- 2280 - 22 mm x 80 mm.
- 22110 - 22 mm x 110 mm.
- M.2 Slot #4 Specs
- PCIe Signal
- 2280 - 22 mm x 80 mm.
- Rear IO
- USB 3.2 Gen 1 Type A Ports (on IO): 4
- USB 3.2 Gen 2 Type A Ports (on IO): 4
- USB 4.0 Type C Ports (on I/O): 2
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 4
- USB 3.2 Gen 1 Ports (on Headers): 2
- USB 3.2 Gen 2 Type-C (on Headers): 1
- FAN Connectors: 6
- Audio on Headers
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
- High Humidity: 90%
- Low Humidity: 20%
- Operating System Support
- Windows 11 Pro (64 Bit)
- Windows 11 Pro for WS (64 Bit)
- Windows 11 IoT 2024 LTSC High End
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Features:
Expansion Slots
CPU:
- 2 x PCI Express x16 slots, supporting PCIe 5.0 and running at x16 (PCIEX16_1/PCIEX16_2)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16(PCIEX16_3)Storage
CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU/M2B_CPU)
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2D_CPU)
CPU+Chipset:
- 8 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year

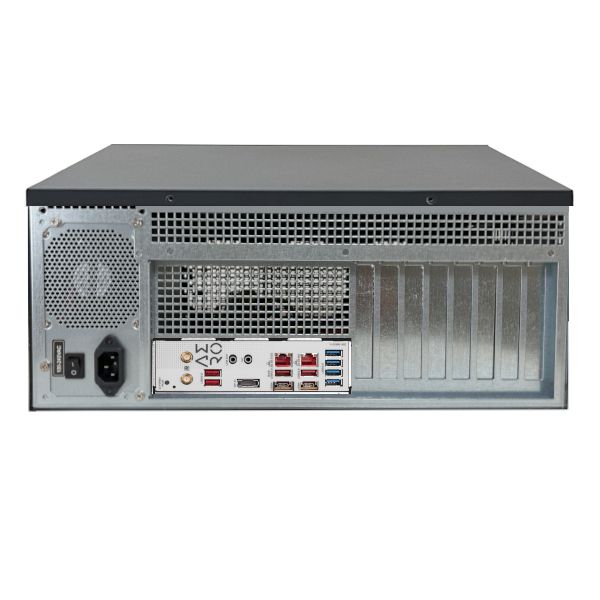

Chassis Specifications:
- General
- Form Factor: 4U Rackmount
- Front Changeable Air Filter
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: SSI CEB
- Redundant Power Supply Capable
- Slide Rails: Optional
- Expansion
- Full Height Slots: 8
- Max Card Depth: 375mm"
- Internal 3.5" Bays: 3
- Internal 2.5" Bays: 8
- Front Ports
- USB 3.2 Ports (Front): 2
- USB Type-C (Front): 1
- Cooling System
- Maximum Fan Count: 3
- Physical
- Depth: 16.89"
- Depth (Inches): Click Available Downloads Tab
- Width: 17"
- Height: 6.96"
- Shipping Box - Depth: 21"
- Shipping Box - Width: 21"
- Shipping Box - Height: 11"
- Shipping Weight: 30lbs
- Other Features
- Features:
- 8x full height PCIe card slot cutouts
- Maximum card height: 158mm (card and power connector must be ≤158mm tall)
- Maximum card length: 375mm (with 25mm thick front fans)
- LIQUID COOLING NOTE: radiators reduce the available depth inside the case for long GPUs
- Inside of case is 399mm deep
- Thickness of radiator + thickness of case fans + GPU length must equal less than 399mm total.
- Chassis Warranty: 1 Year
