SL-4U-X299UD4-HA This item is no longer available.
4U Rack Mount Industrial PC - Rackmount featuring Intel X299 Chipset, Intel® Core™ X-series Processors ( FCLGA2066), 1x 1GbE (10/100/1000) LAN, Up to 128GB RAM, 4x USB 2.0 Ports ( 2 Front, 2 Internal Headers ), 10x USB 3.2 Gen 1 Ports ( 6 Rear, 4 Internal Headers ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 5x Expansion Slots.
Intel Latest X-Series High Performance Rackmount Computer
Type:
- 4U Rack Mount Industrial PC
- Depth: 17.70", Max Card Depth: 12.28", Locking Front Bezel
Motherboard:
- Featuring Intel X299 Chipset and Intel® Core™ X-series Processors ( FCLGA2066) processor
- Full Height Slots:
5 - PCIe x16 - LAN: 1x Ports (1GbE (10/100/1000))
- RAID: 0,1,5,10
- Video: None
- Audio: 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
- Ports:
4x USB 2.0 Ports ( 2 Front, 2 Internal Headers )
10x USB 3.2 Gen 1 Ports ( 6 Rear, 4 Internal Headers )
2x USB 3.2 Gen 2 Ports ( 2 Rear )
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Processor: i9-10900X - 3.7GHz (up to 4.5GHz) Intel Deca (10) Core CPU - 19.25MB Cache, No Onboard Graphics (165W)
- Memory: 2 x 4GB DDR4 3200MHz OC RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 600W ATX12V (v2.2) 8cm 80 Plus Bronze 80MM FAN
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty

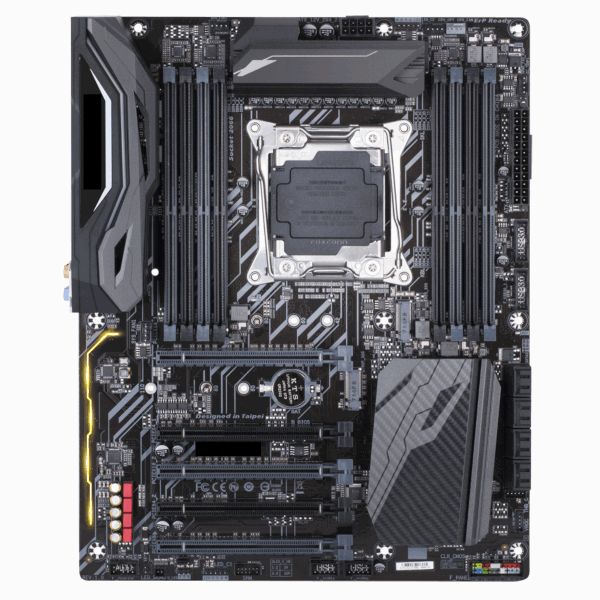

MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: ATX
- Supported CPU
- Number of Processors: 1
- Processor Type: Intel® Core™ X-series Processors ( FCLGA2066)
- Chipset
- Chipset: Intel X299 Chipset
- Memory
- Memory Type: DDR4 2666MHz
- Memory Type: Non-ECC
- DIMMS: 8
- Maximum Memory: 128GB
- On Board Audio
- Audio Type: 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
- On Board Video
- Video Chipset: None
- Video on IO: None
- LAN
- LAN Ports: 1
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Intel® GbE LAN chip
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 8
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 5
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 2
- M.2 Slot #1 Specs
- M.2 SATA SSD
- PCIe Signal
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- M.2 Slot #2 Specs
- M.2 SATA SSD
- PCIe Signal
- 22110 - 22 mm x 110 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- Rear IO
- PS/2 Combo (Mouse/Keyboard)
- USB 3.2 Gen 1 Type A Ports (on IO): 6
- USB 3.2 Gen 2 Type A Ports (on IO): 2
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 4
- USB 3.2 Gen 1 Ports (on Headers): 4
- Thunderbolt 3 via Header: 1
- FAN Connectors: 5
- Audio on Headers
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 95%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- SL-Windows 11PRO to 10PRO 64bit
- Windows 11 Home (64 Bit)
- Windows 11 Pro (64 Bit)
- Windows 11 Pro for WS (64 Bit)
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Features:
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
1 x PCI Express x16 slot, running at x8 (PCIEX8)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
- Motherboard Warranty: 1 Year

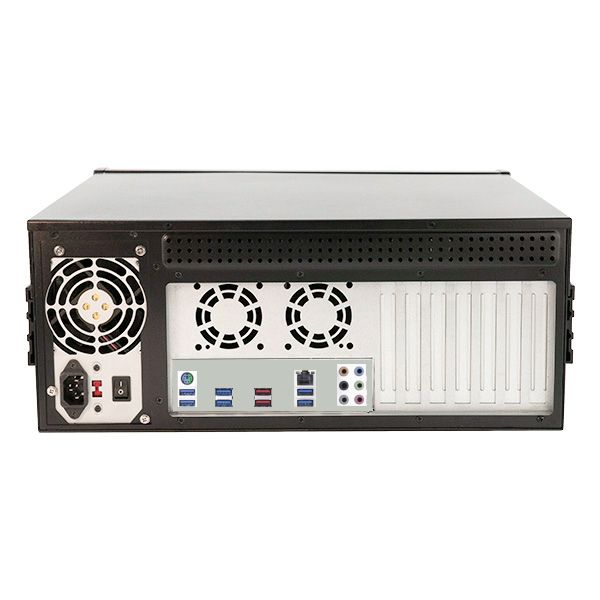

Chassis Specifications:
- General
- Form Factor: 4U Rackmount
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: ATX
- Redundant Power Supply Capable
- Slide Rails: Optional
- Expansion
- Full Height Slots: 7
- Max Card Depth: 12.28"
- External 5.25" Bays: 3
- Internal 3.5" Bays: 2
- External 3.5" Bays: 1
- Front Ports
- USB 2.0 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 2
- Included Fans: 1
- Physical
- Depth: 17.70"
- Depth (Inches): 17.7
- Width: 19"
- Height: 7"
- Shipping Box - Depth: 26"
- Shipping Box - Width: 23"
- Shipping Box - Height: 12"
- Shipping Weight: 45lbs
- Other Features
- Chassis Warranty: 1 Year
