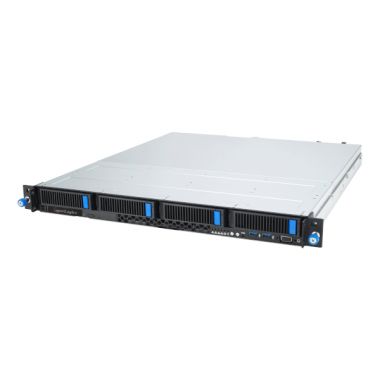

SL-1U-C262-RS300-PS4
1U Rack Mount Server - Rackmount featuring Intel C262 Chipset, Intel® Xeon® E-2400 Processor, 2x 1GbE + 1GbE + IPMI LAN, 1x Serial, Up to 128GB RAM, 2x USB 3.2 Gen 1 Ports ( 2 Front ), 3x USB 3.2 Gen 2 Ports ( 3 Rear ), 3x Expansion Slots, Power Supply Single 350W 80 PLUS Gold Power Supply.
Type:
- 1U Rack Mount Server
- Depth: 19.57"
Motherboard:
- Featuring Intel C262 Chipset and Intel® Xeon® E-2400 Processor processor
- Full Height Slots:
1 - PCIe x16
1 - PCIe x8
1 - PCIe x4 - LAN: 2x Ports (1GbE + 1GbE + IPMI)
- RAID: 0,1,5,10 Intel VROC
- Video: VGA
- Audio: No Onboard Audio
- Ports:
2x USB 3.2 Gen 1 Ports ( 2 Front )
3x USB 3.2 Gen 2 Ports ( 3 Rear )
1x COM Port (RS232 Rear)
See specifications for more ports - Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)
Also Included:
- Processor: Intel Xeon E-2414 - 2.6 GHz - 4 cores - 4 threads - 12 MB cache - E-2400 Series (55W)
- Memory: 2 x 16GB DDR5 4800MHz ECC Unbuffered RAM (Requires Intel Core i7/i9 or Xeon Processors)
- Hard Drive: 500GB M.2 2280 NVMe SSD or greater
- Power Supply: Single 350W 80 PLUS Gold Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: Proprietary
- Supported CPU
- Number of Processors: 1
- Processor Type: Intel® Xeon® E-2400 Processor
- Chipset
- Chipset: Intel C262 Chipset
- Memory
- Memory Type: DDR5 4400MHz
- Memory Type: ECC Unbuffered
- DIMMS: 4
- Maximum Memory: 128GB
- On Board Audio
- Audio Type: No Onboard Audio
- On Board Video
- Video Chipset: ASPEED AST2600 BMC
- Video on IO: VGA
- VGA Port Out: 1
- LAN
- LAN Ports: 2
- LAN Type: 1GbE + 1GbE + IPMI
- LAN Chipset: Intel® i210AT
- Second LAN Chipset: Intel® i210AT
- Third LAN Chipset: Dedicated IPMI
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 8
- RAID
- RAID Type: Hardware RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 1
- PCI Express x8 Slots On Motherboard: 1
- PCI Express x4 Slots On Motherboard: 1
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 1
- M.2 Slot #1 Specs
- PCIe Signal
- 2280 - 22 mm x 80 mm.

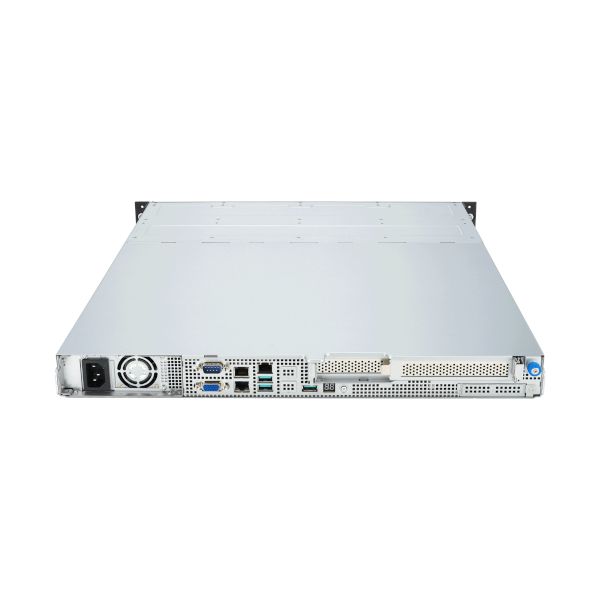

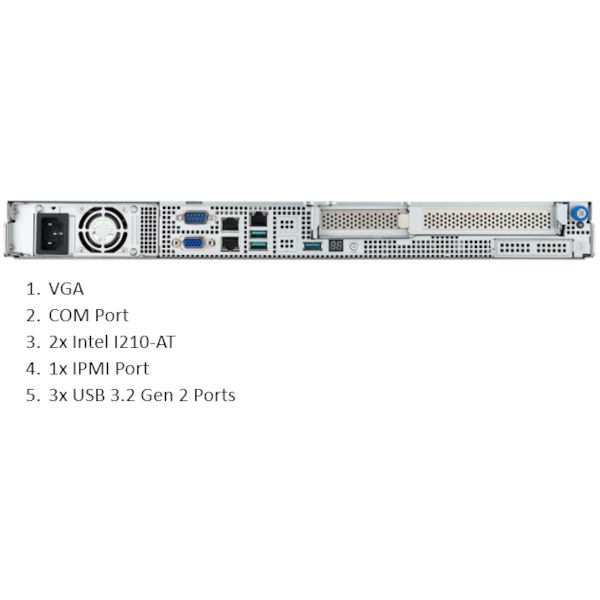

- Rear IO
- USB 3.2 Gen 2 Type A Ports (on IO): 3
- Serial (Rear IO): 1
- Headers
- USB 3.2 Gen 1 Ports (on Headers): 2
- Management Features
- TPM Support: 2.0 Module Included
- Environmental
- Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
- High Humidity: 90%
- Low Humidity: 20%
- Operating System Support
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Windows Server 2022 STD
- Compliance of Component
- CE
- FCC
- Warranty of Component
- Motherboard Warranty: 1 Year
- Other Features
- Other Features:
Expansion Slots
Total PCI-E Slots: 3
1 x PCI-E x 16 (Gen5 x16 Link, switch to x8 link when slot B occupied), FH/HL
1 x PCI-E x 8 (Gen5 x8 Link), HH/HL*
1 x PCI-E x 4 (Gen4 x4 Link), Proprietary R/A slotNetworking
2 x Intel® I210AT + 1 x Mgmt LAN
Chassis Specifications:
- General
- Form Factor: 1U Rackmount
- Color: Black & Silver
- Material: Metal/Aluminum
- Material Thickness: 1mm
- Redundant Power Supply Capable
- Expansion
- Full Height Slots: 1
- Low Profile Slots: 2
- 3.5" or 2.5" Hot Swap Bays: 4

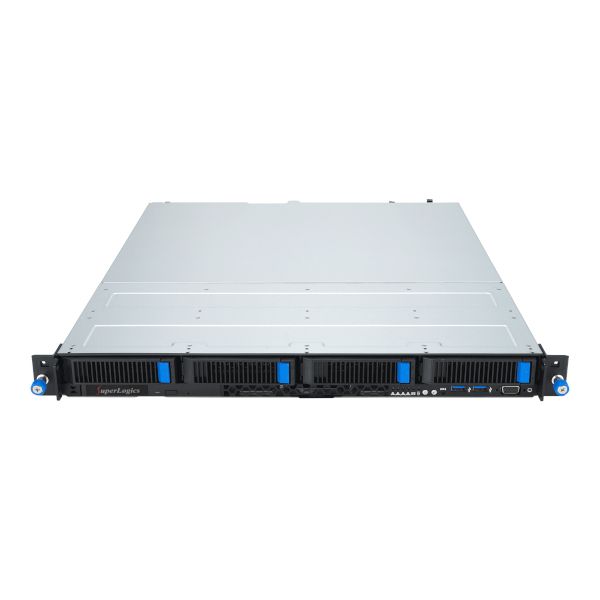

- Front Ports
- USB 3.2 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 6
- Included Fans: 6
- Physical
- Depth: 19.57"
- Depth (Inches): 19.57
- Width: 17.31"
- Height: 1.74"
- Shipping Box - Depth:
- Shipping Box - Width:
- Shipping Box - Height:
- Shipping Weight: 40lbs
- Power
- Built-in Chassis Power Supply: Single 350W 80 PLUS Gold Power Supply
