SL-1U-C262SCL-LU
1U Rack Mount Server - Rackmount featuring Intel C262 Chipset, Intel® Xeon® E-2400 Processor, 2x 1GbE + 1GbE LAN, 2x Serial, Up to 128GB RAM, 6x USB 2.0 Ports ( 2 Rear, 4 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers ), Power Supply 350W Multi-output power supply Platinum level.
Type:
- 1U Rack Mount Server
- Depth: 14.50", Max Card Depth: 12.28"
Motherboard:
- Featuring Intel C262 Chipset and Intel® Xeon® E-2400 Processor processor
- LAN: 2x Ports (1GbE + 1GbE)
- RAID: 0,1
- Video: VGA
- Audio: No Onboard Audio
- Ports:
6x USB 2.0 Ports ( 2 Rear, 4 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers )
2x COM Ports (1 RS232 Rear, 1 RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Processor: Intel Xeon E-2414 - 2.6 GHz - 4 cores - 4 threads - 12 MB cache - E-2400 Series (55W)
- Memory: 2 x 16GB DDR5 4800MHz ECC Unbuffered RAM (Requires Intel Core i7/i9 or Xeon Processors)
- Hard Drive: 500GB M.2 2280 NVMe SSD or greater
- Power Supply: 350W Multi-output power supply Platinum level
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty

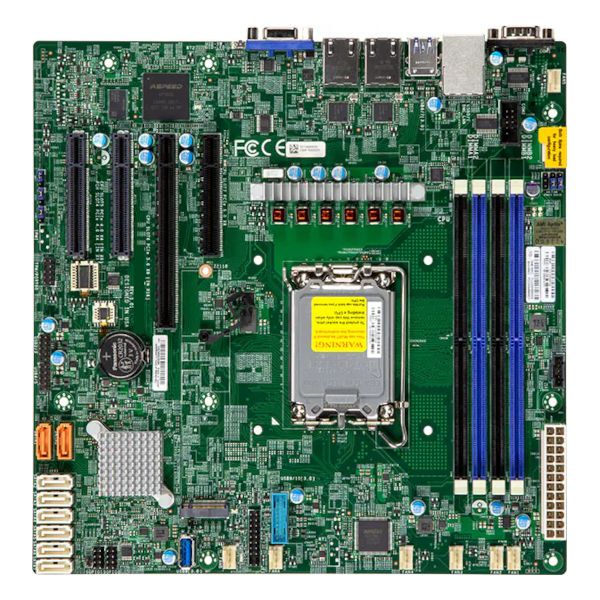

MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MicroATX
- Supported CPU
- Number of Processors: 1
- Processor Type: Intel® Xeon® E-2400 Processor
- Chipset
- Chipset: Intel C262 Chipset
- Memory
- Memory Type: DDR5 4400MHz
- Memory Type: ECC Unbuffered
- DIMMS: 4
- Maximum Memory: 128GB
- On Board Audio
- Audio Type: No Onboard Audio
- On Board Video
- Video Chipset: ASPEED AST2600 BMC
- Video on IO: VGA
- VGA Port Out: 1
- LAN
- LAN Ports: 2
- LAN Type: 1GbE + 1GbE
- LAN Chipset: Intel® i210
- Second LAN Chipset: Intel® i210
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 8
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 1
- M.2 Slot #1 Specs
- PCIe Signal
- 2280 - 22 mm x 80 mm.
- 22110 - 22 mm x 110 mm.

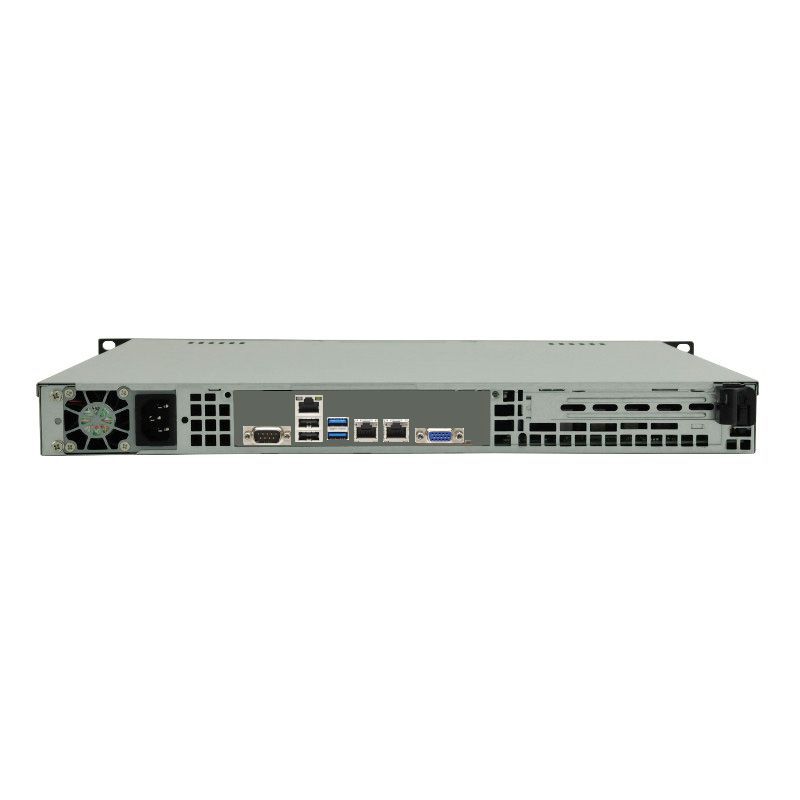

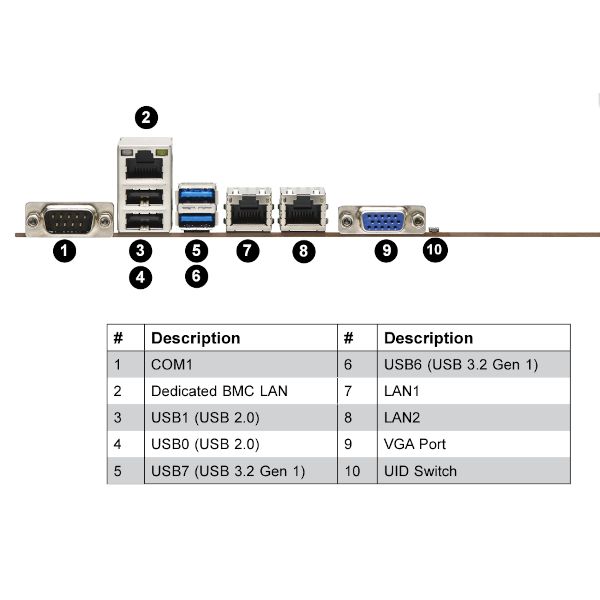

- Rear IO
- USB 2.0 Ports (on IO): 2
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- Serial (Rear IO): 1
- Headers
- USB 2.0 Ports (on Headers): 4
- USB 3.2 Gen 1 Ports (on Headers): 2
- USB 3.0 Type A Interal: 1
- Serial (via Headers): 1
- FAN Connectors: 7
- Chassis Intrusion
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 8%
- Operating System Support
- Windows Server 2022 STD
- RED HAT Enterprise LINUX WORKSTATION STANDARD
- RED HAT Enterprise LINUX SERVER BASIC
- RED HAT Enterprise LINUX SERVER STANDARD
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- CE
- FCC
- Other Features
- Features:
PCIe
2 PCIe 4.0 x4 (in x8 slot),
1 PCIe 5.0 x8,
1 PCIe 5.0 x8 (in x16 slot)M.2
M.2 Interface: 1 PCIe 4.0 x4
Form Factor: 2280/22110
Key: M-Key - Motherboard Warranty: 1 Year

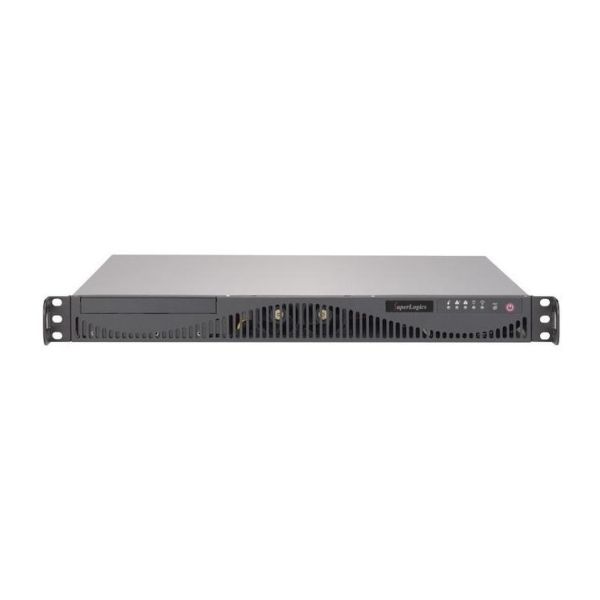

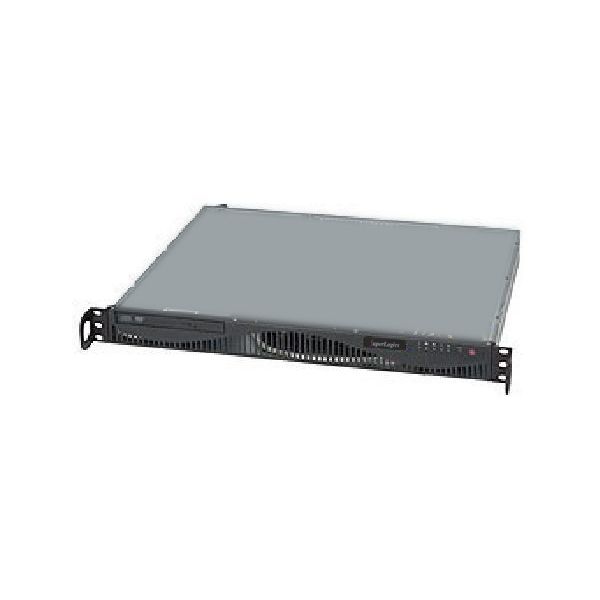

Chassis Specifications:
- General
- Form Factor: 1U Rackmount
- Color: Black & Silver
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: ATX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 1
- Max Card Depth: 12.28"
- Internal 3.5" Bays: 2
- Cooling System
- Maximum Fan Count: 2
- Included Fans: 2
- Physical
- Depth: 14.50"
- Depth (Inches): 14.5
- Width: 17.20"
- Height: 1.70"
- Shipping Box - Depth: 22"
- Shipping Box - Width: 20"
- Shipping Box - Height: 6.30"
- Shipping Weight: 20lbs
- Compliance of Component
- CE
- FCC
- Other Features
- Chassis Warranty: 1 Year
- Power
- Built-in Chassis Power Supply: 350W Multi-output power supply Platinum level
