SL-1U-MCX-AC224I-GC This item is no longer available.
1U Rack Mount Server - Rackmount featuring Intel C224 Express Chipset, Xeon E3-1200v3 (LGA1150, 'Haswell'), 3x 1GbE (10/100/1000) LAN, 1x Serial, Up to 16GB RAM, 4x USB 2.0 Ports ( 2 Front, 2 Rear ), 4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers ), .
Type:
- 1U Rack Mount Server
- Depth: 11", Max Card Depth: 6.5 inches"
Motherboard:
- Featuring Intel C224 Express Chipset and Xeon E3-1200v3 (LGA1150, 'Haswell') processor
- LAN: 3x Ports (1GbE (10/100/1000))
- RAID: 0,1
- Video: VGA
- Audio: No Onboard Audio
- Ports:
4x USB 2.0 Ports ( 2 Front, 2 Rear )
4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers )
1x COM Port (RS232 Rear)
See specifications for more ports - Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)
Also Included:
- Processor: G1820 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (53W) (ERM)
- Memory: 4 GB DDR3 1600MHz ECC Unbuffered RAM
- Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO
- Power Supply: 150W 1U Flex ATX Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty

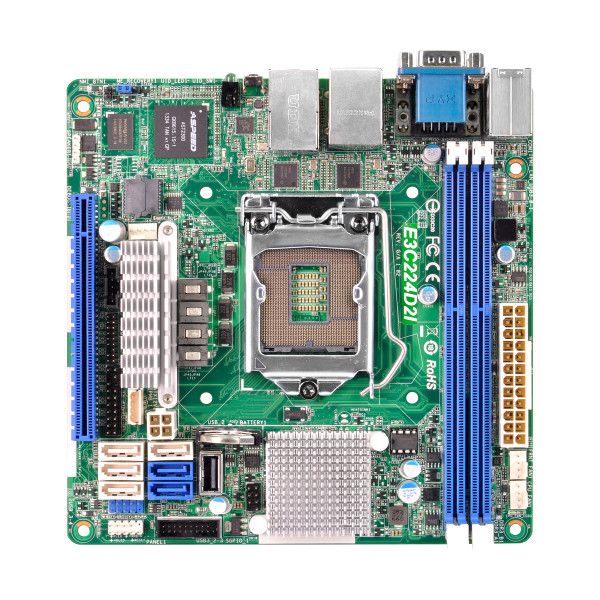

MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MiniITX
- Supported CPU
- Number of Processors: 1
- Processor Type: Xeon E3-1200v3 (LGA1150, 'Haswell')
- Chipset
- Chipset: Intel C224 Express Chipset
- Memory
- Memory Type: DDR3 1600MHz ECC
- Memory Type: ECC Unbuffered
- DIMMS: 2
- Maximum Memory: 16GB
- On Board Audio
- Audio Type: No Onboard Audio
- On Board Video
- Video Chipset: ASPEED AST2300
- Video on IO: VGA
- VGA Port Out: 1
- LAN
- LAN Ports: 3
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Intel® i210AT
- Second LAN Chipset: Intel® i210AT
- Third LAN Chipset: Realtek RTL8211E (Dedicated IPMI)
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA II Ports (3GB): 2
- SATA III Ports (6GB): 4
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10

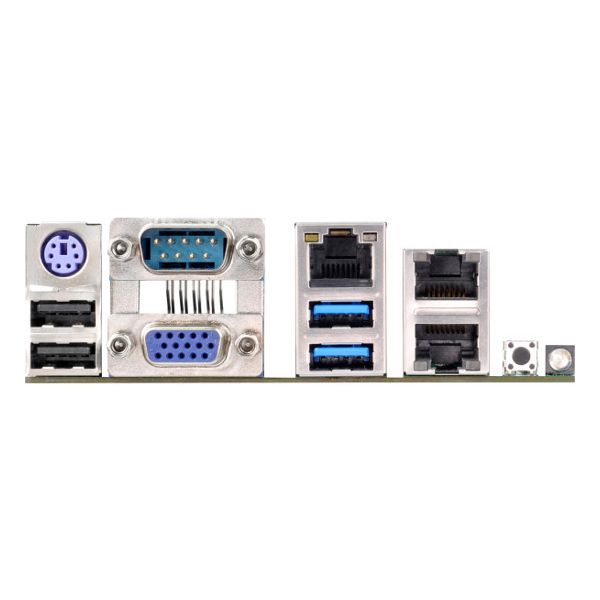

- Rear IO
- PS/2 Combo (Mouse/Keyboard)
- USB 2.0 Ports (on IO): 2
- USB 3.0 Ports (on IO): 2
- Serial (Rear IO): 1
- Headers
- USB 2.0 Ports (on Headers): 2
- USB 3.0 Ports (on Headers): 2
- USB 2.0 Ports (Type A): 1
- FAN Connectors: 3
- Chassis Intrusion
- Environmental
- Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
- High Humidity: 90%
- Low Humidity: 10%
- Operating System Support
- Windows 7 Ultimate (64-bit)
- Windows 7 Pro (32-bit)
- Windows 7 Pro (64-bit)
- Windows 7 Pro (FES) 64-Bit
- Windows 8.1 (32-bit)
- Windows 8.1 (64-bit)
- Windows 8.1 Pro (32-bit)
- Windows 8.1 Pro (64-bit)
- Windows 10 Home (32 Bit)
- Windows 10 Home (64 Bit)
- Windows 10 Pro (32 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 IoT Value
- Windows 10 IoT Ent
- Windows Server 2012
- RED HAT Enterprise LINUX SERVER STANDARD
- LINUX Ubuntu Desktop
- LINUX Ubuntu Workstation
- Ubuntu Server Edition
- VMWare Compatible
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Other Features
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 1U Rackmount
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: Mini ITX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 1
- Max Card Depth: 6.5 inches"
- Internal 2.5" Bays: 2
- Front Ports
- USB 2.0 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 2
- Included Fans: 2
- Physical
- Depth: 11"
- Depth (Inches): 11
- Width: 19.10"
- Height: 1.75"
- Shipping Box - Depth: 22"
- Shipping Box - Width: 15"
- Shipping Box - Height: 5"
- Shipping Weight: 15lbs
- Other Features
- Chassis Warranty: 1 Year
