SL-1U-MCX-C621DDW-LM
1U Rack Mount Server - Rackmount featuring Intel C621 Chipset, Intel® Xeon® Scalable Processors, 2x 1GbE (10/100/1000) LAN, Up to 64GB RAM, 6x USB 3.2 Gen 1 Ports ( 4 Rear, 2 Internal Headers ), 3x Expansion Slots, Power Supply Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width. 80+ Platinum Certified.
Intel® Xeon® Scalable Platform
Type:
- 1U Rack Mount Server
- Depth: 23.50", Max Card Depth: 6""
Motherboard:
- Featuring Intel C621 Chipset and Intel® Xeon® Scalable Processors processor
- Full Height Slots:
2 - PCIe x16
1 - PCIe x8 - LAN: 2x Ports (1GbE (10/100/1000))
- RAID: 0,1,5,10
- Video: VGA
- Audio: No Onboard Audio
- Ports:
6x USB 3.2 Gen 1 Ports ( 4 Rear, 2 Internal Headers )
See specifications for more ports - Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)
Also Included:
- Processor: 2 x Xeon Bronze 3104 - 1.70GHz Six Core Intel Processor - 8.25MB Cache (85W)
- Memory: 2 x 8GB DDR4 2666MHz ECC Registered RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width. 80+ Platinum Certified
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: Proprietary
- Supported CPU
- Number of Processors: 2
- Processor Type: Intel® Xeon® Scalable Processors
- Chipset
- Chipset: Intel C621 Chipset
- Memory
- Memory Type: DDR4 2400MHz ECCR
- Memory Type: ECC Registered
- DIMMS: 12
- Maximum Memory: 64GB
- On Board Audio
- Audio Type: No Onboard Audio
- On Board Video
- Video Chipset: ASPEED AST2500 BMC
- Video on IO: VGA
- VGA Port Out: 1
- LAN
- LAN Ports: 2
- LAN Type: 1GbE (10/100/1000)
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 14
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 1
- M.2 Slot #1 Specs
- PCIe Signal
- 22110 - 22 mm x 110 mm.
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- Rear IO
- USB 3.2 Gen 1 Type A Ports (on IO): 4
- Headers
- USB 3.2 Gen 1 Ports (on Headers): 2
- FAN Connectors: 5
- Chassis Intrusion
- Management Features
- Watch Dog
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
- High Humidity: 90%
- Low Humidity: 8%
- Operating System Support
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- Windows 10 IoT Ent
- Windows 10 IoT Ent 2019 LTSC
- SL-Windows 11PRO to 10PRO 64bit
- Windows Server 2016 STD
- Windows Server 2019 Std
- RED HAT Enterprise LINUX SERVER BASIC
- RED HAT Enterprise LINUX WORKSTATION STANDARD
- RED HAT Enterprise LINUX SERVER STANDARD
- Compliance of Component
- CE
- RoHS
- FCC
- CCC
- Warranty of Component
- Motherboard Warranty: 1 Year
- Other Features
- Other Features:

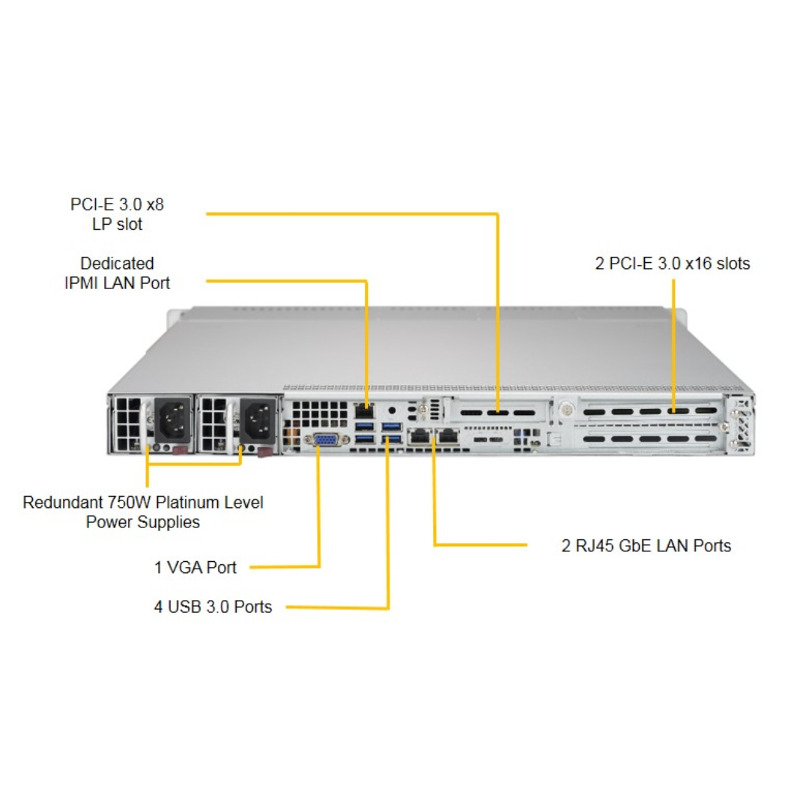

PCI-Express
- 2 PCI-E 3.0 x16 (FHHL) slots
- 1 PCI-E 3.0 x8 (LP) slot
- 1 PCI-E 3.0 x16 for Add-on-Module (AOM)
- 1 PCI-E M.2 SSD slot
(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers.)
Chassis Specifications:
- General
- Form Factor: 1U Rackmount
- Color: Black & Silver
- Material: Steel & Plastic
- Material Thickness: 1mm
- Redundant Power Supply Capable
- Slide Rails: Optional
- Expansion
- Full Height Slots: 2
- Low Profile Slots: 1
- Max Card Depth: 6""

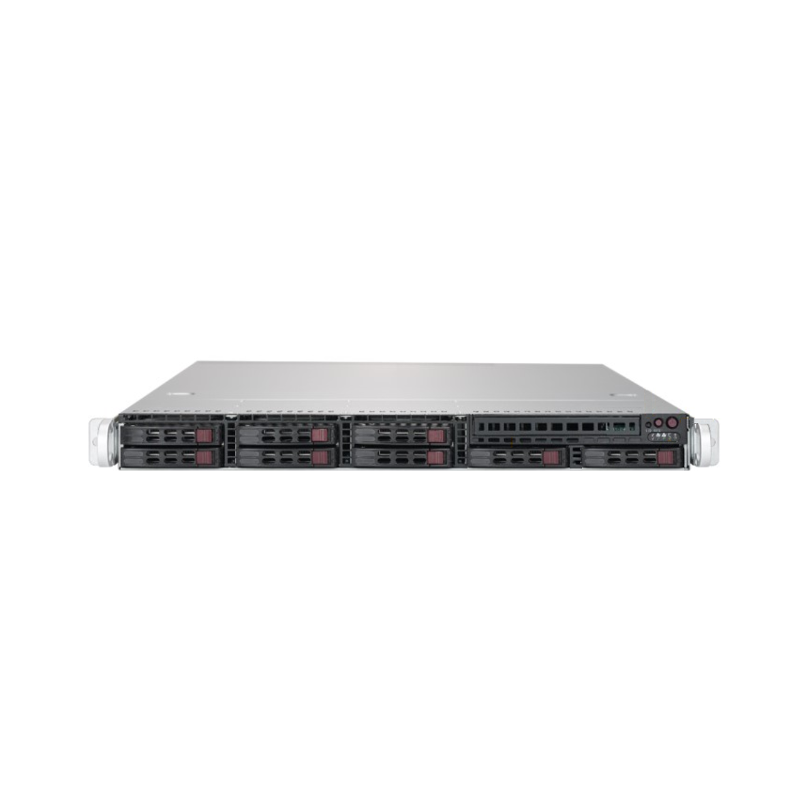

- 2.5" Hot Swap Bays: 8
- Cooling System
- Maximum Fan Count: 5
- Included Fans: 4
- Physical
- Depth: 23.50"
- Depth (Inches): 23.5
- Width: 17.20"
- Height: 1.70"
- Shipping Box - Depth: 33.70"
- Shipping Box - Width: 23.50"
- Shipping Box - Height: 8.50"
- Shipping Weight: 46lbs
- Power
- Built-in Chassis Power Supply: Redundant 700/750W Single Output Power Supply Platinum level, 54.5mm width. 80+ Platinum Certified
- Other Features
- Features:
SAS or enterprise SATA HDD only recommended
8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
