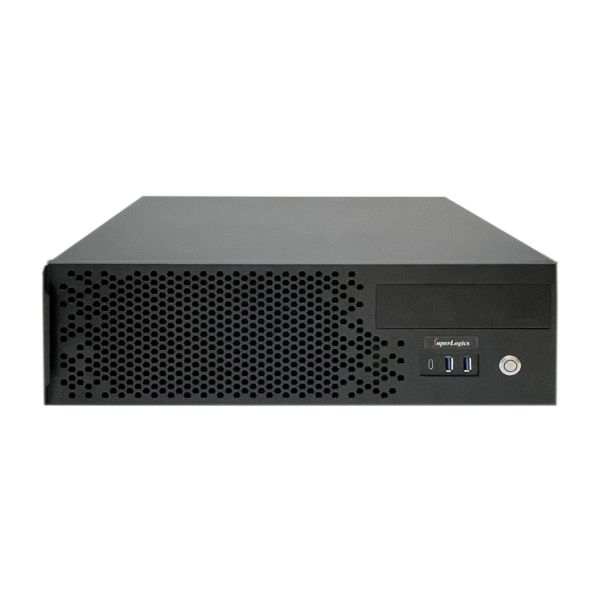

SL-3U-C256P12-10GB-SR
3U Rack Mount Server - Rackmount featuring Intel C256 Chipset, Intel® Xeon® E-2300 Processor, 2x 10GbE + 10GbE + IPMI LAN, 1x Serial, Up to 128GB RAM, 2x USB 2.0 Ports ( 2 Internal Headers ), 4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 4x Expansion Slots.
Type:
- 3U Rack Mount Server
- Depth: 14.89", Max Card Depth: 324mm"
Motherboard:
- Featuring Intel C256 Chipset and Intel® Xeon® E-2300 Processor processor
- Full Height Slots:
1 - PCIe x16
3 - PCIe x8 - LAN: 2x Ports (10GbE + 10GbE + IPMI)
- RAID: 0,1,5,10
- Video: VGA
- Audio: No Onboard Audio
- Ports:
2x USB 2.0 Ports ( 2 Internal Headers )
4x USB 3.2 Gen 1 Ports ( 2 Front, 2 Rear )
2x USB 3.2 Gen 2 Ports ( 2 Rear )
1x COM Port (RS232 Internal Headers)
See specifications for more ports - Operating Temperature: 10ºC to 50ºC (50ºF to 122ºF)
Also Included:
- Processor: Intel Xeon E-2314 (Up to 4.5 GHz) - 2.8 GHz - 4 core - 4 threads - 8MB Cache - E-2300 Series (65W)
- Memory: 2 x 8GB DDR4 3200MHz ECCU RAM
- Hard Drive: 500GB M.2 2280 NVMe SSD or greater
- Power Supply: 450W SFX-form factor auto-switching power supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: ATX
- Supported CPU
- Number of Processors: 1
- Processor Type: Intel® Xeon® E-2300 Processor
- Chipset
- Chipset: Intel C256 Chipset
- Memory
- Memory Type: DDR4 3200MHz
- Memory Type: ECC Unbuffered
- DIMMS: 4
- Maximum Memory: 128GB
- On Board Audio
- Audio Type: No Onboard Audio
- On Board Video
- Video Chipset: ASPEED AST2600 BMC
- Video on IO: VGA
- VGA Port Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 2
- LAN Type: 10GbE + 10GbE + IPMI
- LAN Chipset: Intel® X710-AT2
- Second LAN Chipset: Intel® X710-AT2
- Third LAN Chipset: Dedicated IPMI
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 8
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 1
- PCI Express x8 Slots On Motherboard: 3
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 2
- M.2 Slot #1 Specs
- M.2 SATA SSD
- PCIe Signal
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- 22110 - 22 mm x 110 mm.
- M.2 Slot #2 Specs
- M.2 SATA SSD
- PCIe Signal
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.
- 22110 - 22 mm x 110 mm.

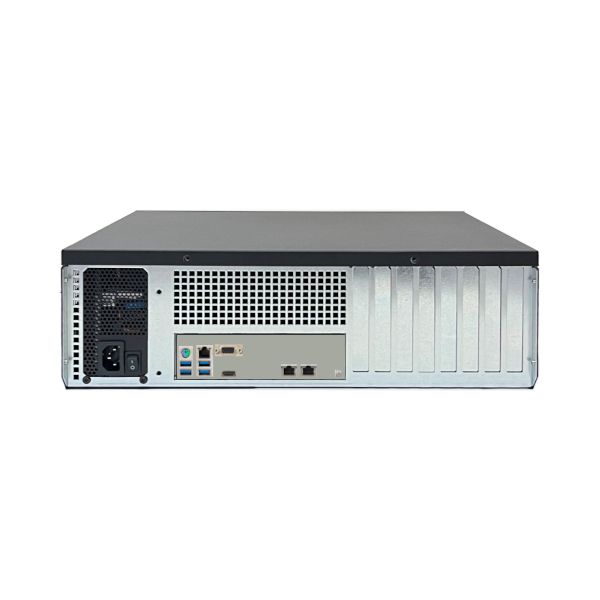

- Rear IO
- PS/2 Combo (Mouse/Keyboard)
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- USB 3.2 Gen 2 Type A Ports (on IO): 2
- Headers
- USB 2.0 Ports (on Headers): 2
- USB 3.2 Gen 1 Ports (on Headers): 2
- USB 3.0 Type A Interal: 1
- Serial (via Headers): 1
- FAN Connectors: 6
- Chassis Intrusion
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature: 10ºC to 50ºC (50ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 20%
- Operating System Support
- Windows 11 Pro (64 Bit)
- Windows 11 Pro for WS (64 Bit)
- Windows 11 IoT 2024 LTSC High End
- Windows Server 2019 Std
- Windows Server 2022 STD
- RED HAT Enterprise LINUX WORKSTATION STANDARD
- RED HAT Enterprise LINUX SERVER BASIC
- RED HAT Enterprise LINUX SERVER STANDARD
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- RoHS
- FCC
- Other Features
- Features:
Expansion Slots
Total Slot : 4
Slot Location 1 : PCI-E x8 (Gen3 X4 Link)
Slot Location 2 : PCI-E x8 (Gen3 X4 Link)
Slot Location 4 : PCI-E x8 (Gen4 X8 Link)
Slot Location 6 : PCI-E x16 (Gen4 X16 Link), Auto switch to x8 link if slot 4 is occupiedStorage
Storage Controller :
8 x SATA3 6Gb/s ports by 4 Mini-SAS HD connectors
2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode*
*Gen4 x4 Link & Gen3 x2 Link,gray SATA port will disable when M.2 is SATA signal - Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 3U Rackmount
- Front Changeable Air Filter
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: E-ATX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 8
- Max Card Depth: 324mm"
- External 3.5" Bays: 1
- Internal 2.5" Bays: 2
- Front Ports
- USB 3.2 Ports (Front): 2
- USB Type-C (Front): 1
- Cooling System
- Maximum Fan Count: 2
- Physical
- Depth: 14.89"
- Width: 17"
- Height: 5.22"
- Shipping Box - Depth: 24"
- Shipping Box - Width: 23"
- Shipping Box - Height: 11"
- Shipping Weight: 28lbs
- Other Features
- Features:
- 8x full height PCIe card slot cutouts
- Maximum card height: 115mm
- Maximum card length with 3x Noctua A12x25 fans: 324mm
- Maximum card length with Asetek 360mm AIO and Noctua A12x25 fans: 297mm
- Maximum card length with no fans / no AIO cooler: 349mm
- Chassis Warranty: 1 Year
