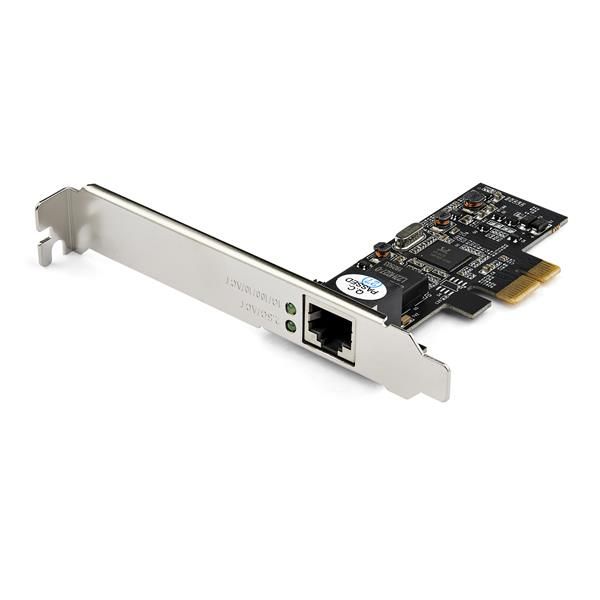

SL-LAN-PCIEx1-2.5GbE-ST
PCIe x4 - 10/100/1000/2500Mbps Single Port Network Adapter, 2.5GBASE-T/NBASE-T - Full Height or Low Profile
- Multi-Gigabit Ethernet connectivity with four network speeds: 2.5G, 1G, 100Mbps, 10Mbps
- Compatible with both 2.5GBASE-T and NBASE-T specifications
- Supports 2.5Gbps network speeds on CAT5e cabling and CAT6a
- IEEE 802.3az and IEEE802.3u compliant energy efficient
- Flexible installation with both standard and low-profile brackets included
HARDWARE
- Bus Type PCI Express
- Card Type Standard Profile (LP bracket incl.)
- Chipset ID Realtek RTL8125
Industry Standards
- IEEE 802.3bz (2.5GBASE-T)
- IEEE 802.3ab (1000BASE-T)
- IEEE 802.3u (100BASE-TX)
- IEEE 802.3i (10BASE-TX)
- Ports 1
PERFORMANCE
- Auto MDIX Yes
- Compatible Networks 2.5G/1G/100Mbps/10Mbps
- Full Duplex Support Yes
- Jumbo Frame Support 16K max.
- PXE Yes
CONNECTOR(S)
- Connector Type(s) 1 - PCI Express x1 Male
- External Ports 1 - RJ-45 Female
SOFTWAREOS Compatibility
- Windows 10
- Windows 8
- Windows 7
- Windows Server 2016
- Windows Server 2012 R2
- Windows Server 2008 R2
- Linux Kernel 2.4.20 - 4.x (LTS versions only)
INDICATORSLED Indicators
- 1 - Green LED: 2.5Gbps
- 1 - Green LED: 1Gbps/100Mbps/10Mbps
ENVIRONMENTAL
- Humidity 20% ~ 80% RH
- Operating Temperature 5°C to 50°C
- Storage Temperature -20°C to 60°C
PHYSICAL CHARACTERISTICS
- Product Height0.8 in [2 cm]
- Product Length3.1 in [80 mm]
- Product Width4.7 in [12 cm]
- Weight of Product4.9 oz [138 g]
* Product appearance and specifications are subject to change without notice.
