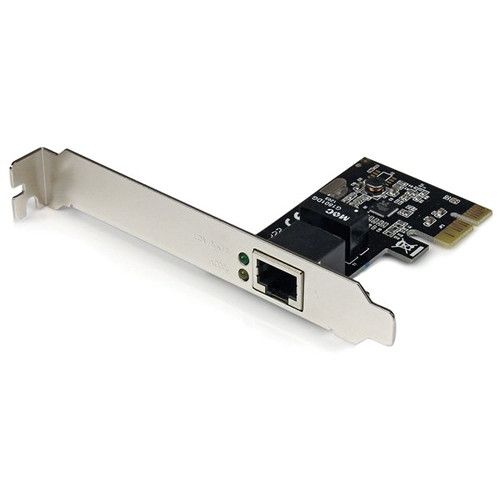

SL-LAN-PCIEx1-GbE-SP-ST1000
PCIe x1 - 10/100/1000Mbps Single Port Network Adapter w/ Realtek RTL8111 - Full Height or Low Profile
- A single 10/100/1000Mbps compatible RJ45 Ethernet port
-
Gigabit detection and Link/Activity LED indicators
-
Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
-
Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
-
Jumbo frame support
-
Full and half duplex support
-
Supports Wake-on-LAN function
-
Crossover Detection & Auto-Correction (Auto MDI/MDI-X)
-
Includes a low profile/half-height installation bracket
Connectivity
Networking I/O - 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)
System Connection - PCIe x1 (Full-Height/Low-Profile Slot)
General
Chipset - Realtek RTL8111E
Supported IEEE Standards - 802.3, 802.3ab, 802.3u, 802.3x
OS Compatibility -Linux, Windows, macOS
*As of June, 2018: Check with manufacturer for the most up-to-date compatibility
Auto-MDIX/MDI Support - Yes
Environmental
Operating Temperature - 32 to 158°F / 0 to 70°C
Storage Temperature - 32 to 212°F / 0 to 100°C
Operating Humidity - 10 to 90%
Physical
Certifications - RoHS
*as per Manufacturer
LED Indicators - Yes
Dimensions - 2.7 x 4.7 x 0.7" / 6.8 x 11.9 x 1.7 cm
