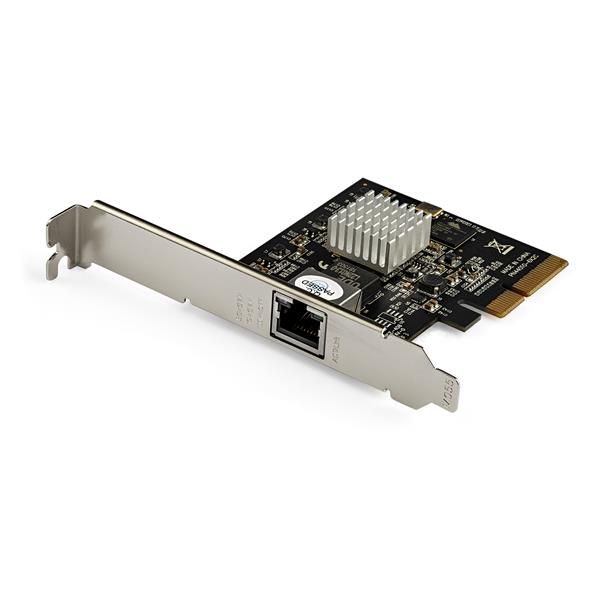

SL-LAN-PCIEx4-5GbE-ST
PCIe x4 - 100/1000/2500/5000Mbps Single Port Network Adapter - Full Height or Low Profile
- Cost-effective and versatile Ethernet connectivity supporting four network speeds: 5G, 2.5G, 1G and 100Mbps
- Achieve up to 2.5Gbps and 5Gbps speeds on your existing Cat5e and Cat6 cabling infrastructure
- Compliant with 5GBase-T and NBase-T (Draft IEEE802.3bz) specifications
- Windows®, macOS, Linux® support
- 9K jumbo frame support
HARDWARE
- Bus Type PCI Express
- Card Type Standard Profile (LP bracket incl.)
- Chipset ID Tehuti - TN4010
Marvell - 88E2010P
Industry Standards
- IEEE 802.3bz (NBase-T)
- IEEE 802.3ab (1000Base-T)
- IEEE 802.3u (100BASE-TX)
- IEEE 802.3ad (Link Aggregation)
- IEEE 802.1q (VLAN tagging)
- PCI Express Rev 2.0
Interface RJ45 (Gigabit Ethernet)
Ports 1
PERFORMANCE
- Auto MDIX Yes
- Compatible Networks 5G/2.5G/1G/100 Mbps
- Full Duplex Support Yes
- Jumbo Frame Support 9K max.
- Maximum Data Transfer Rate 5 Gbps
- PXE Yes
- Supported Protocols IEEE 802.3ad (Link aggregation), IEEE 802.1q (VLAN tagging)
CONNECTOR(S)
- Connector Type(s) 1 - PCI Express x4 Male
- External Ports 1 - RJ-45 Female
SOFTWARE
OS Compatibility
- Windows® 7, 8, 10
- Windows® Server 2008 R2
- Windows® Server 2012 R2
- Windows® Server 2016
- Windows® Server 2019
- Mac OS® 10.12 to 10.14
- Linux 2.6.32 - 4.x LTS versions only
INDICATORSLED Indicators
- 1 - Link speed
- 1 - Link/Activity
ENVIRONMENTAL
- Humidity 10% ~ 90% RH
- Operating Temperature 0°C to 70°C (32°F to 158°F)
- Storage Temperature -40°C to 85°C (-40°F to 185°F)
PHYSICAL CHARACTERISTICS
- Product Height 0.8 in [2 cm]
- Product Length 3.1 in [80 mm]
- Product Width 4.7 in [12 cm]
- Weight of Product 4.9 oz [138 g]
* Product appearance and specifications are subject to change without notice.
