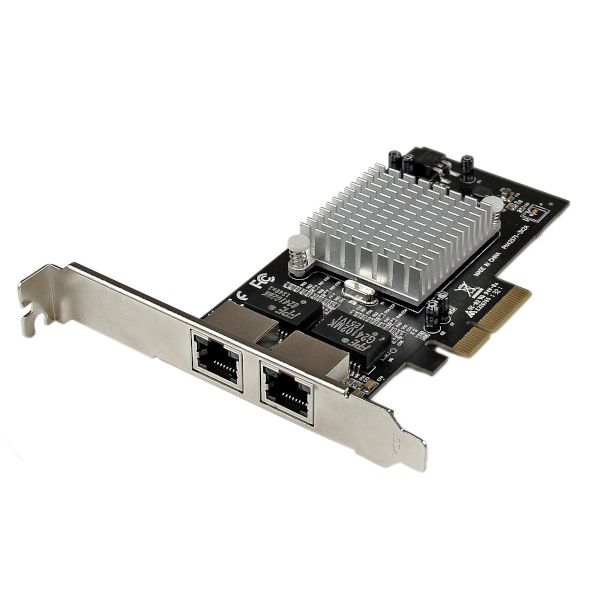

SL-LAN-PCIEx4-GbE-DUAL-I350-ST
PCIe x4 - 10/100/1000Mbps Dual Port Network Adapter - Full Height or Low Profile
- Two 10/100/1000Mbps compatible RJ-45 Ethernet ports
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3ad (link aggregation) and supports IEEE 802.1Q VLAN tagging
- Jumbo Frame support up to 9k bytes
- Teaming Support
- Supports Checksum Offload (IP, TCP, UDP), Transmit Segmentation Offload (TCP, UDP) and Large send Offload
- Wake-on-LAN / Remote Wake-up support
- Configured with standard profile bracket, low profile/half-height bracket included
- Supports Intel® Virtualization Technology (VT-c, VMDq, SR-IOV)
- Four-lane (x4) PCI Express compatible with x4, x8 and x16 PCIe slots
- Compatible with PCI Express Base Specification 2.1 (backward compatible with 1.0a/1.1)
Specifications
Connector(s)
Connector Type(s) 1 - PCI Express x4
External Ports 2 - RJ-45
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity 5~85% RH
Hardware
Ports 2
Interface RJ45 (Gigabit Ethernet)
Bus Type PCI Express
Card Type Standard Profile (LP bracket incl.)
Port Style Integrated on Card
Industry Standards PCI Express Base Specification 2.1
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Chipset ID Intel - I350-AM2
Indicators
LED Indicators 2 - Link / Activity
2 - 10/100/1000 Mbps Indicator
Performance
Maximum Data Transfer Rate 2000 Mbps (full-duplex), 1000 Mbps (half-duplex)
Compatible Networks 10/100/1000 Mbps
Auto MDIX Yes
Full Duplex Support Yes
Jumbo Frame Support 9K max.
Promiscuous Mode Yes
MTBF 432,400 hours
Supported Protocols IEEE 802.3ad (link aggregation), IEEE 1588 (time sync) / 802.1AS, IEEE 802.1q (VLAN tagging)
Physical Characteristics
Weight of Product
2.8 oz [80.0 g]
Color
Black
Material
Steel
Product Length
2.6 in [6.7 cm]
Product Width
0.7 in [1.9 cm]
Product Height
4.8 in [12.1 cm]
Software
OS Compatibility
Windows® 7, 8, 8.1, 10, 11
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019
Linux 2.4.x to 4.11.x LTS versions only
Special Notes / Requirements
System and Cable Requirements
Available PCI Express x4 or higher (x8, x16) slot
