SL-USB3-PEXUSB3S4V

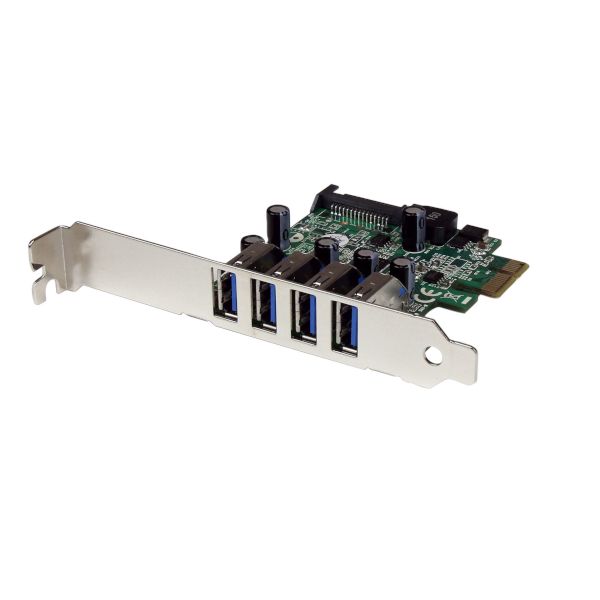

4 Ports USB 3.2 Gen 1 PCIe Card Adapter with SATA Power - Supports Low Profile
4 external USB 3.2 Gen 1 ports in a stacked layout
UASP support for more efficient data transfer
Fully compliant with USB 3.2 Gen 1 revision 1.0 specifications and Intel xHCI rev0.95 specifications
Built-in optional SATA power connector for bus-powered USB devices
Optionally provides up to 900mA per USB port
Backward compatible with USB 2.0 and USB 1.0/1.1 devices
Compliant with PCI Express 2.0 specifications
Includes a Low Profile/half-height installation bracket
Specifications
Connector(s)
Connector Type(s)
1 - PCI Express x1
Internal Ports
1 - SATA Power (15 pin)
External Ports
4 - USB Type-A (9 pin, 5 Gbps)
Environmental
Operating Temperature
5°C to 50°C (41°F to 122°F)
Storage Temperature
-25°C to 70°C (-13°F to 158°F)
Humidity
20% ~ 80% RH
Hardware
Ports
4
Interface
USB 3.2 Gen 1 (5Gbps)
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Port Style
Integrated on Card
Chipset ID
Renesas/NEC - µPD720201
Packaging Information
Package Height
1.3 in [33 mm]
Package Length
5.2 in [13.2 cm]
Shipping (Package) Weight
4.9 oz [138 g]
Package Width
6.4 in [16.2 cm]
Package Quantity
1
Performance
Type and Rate
USB 3.2 Gen 1 - 5 Gbit/s
UASP Support
Yes
Physical Characteristics
Weight of Product
2.4 oz [68 g]
Color
Green
Material
Steel
Product Length
3.0 in [75 mm]
Product Width
0.7 in [19 mm]
Product Height
2.7 in [6.8 cm]
Software
OS Compatibility
Windows® XP, Vista, 7, 8, 8.1, 10, 11
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Special Notes / Requirements
System and Cable Requirements
Available PCI Express expansion slot
Note
The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.
