SI-PEX15043
2 Port DB9 Serial PCI-Express 2.0 x1 Card - high performance RS-422/485 serial interface controllers

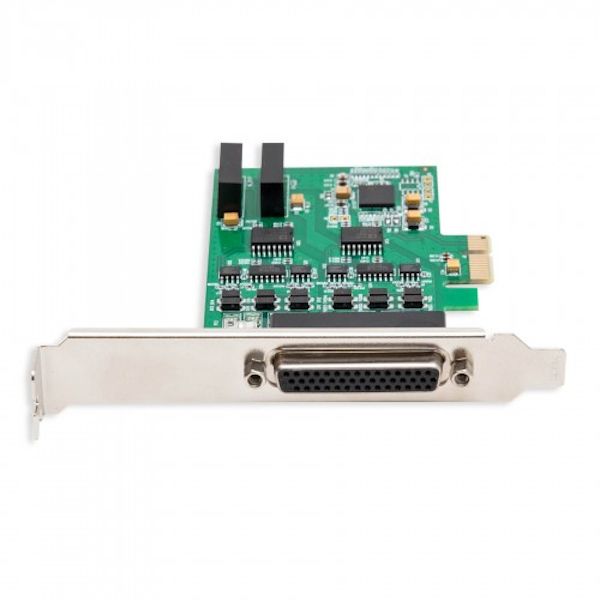

SI-PEX15043, XR17V358 series Multi-I/O PCI-E controller cards are high performance RS-422/485 serial interface controllers for home and industrial users. They are compatible with industrial standard 16C550 UART, which conveniently provide a low cost connection platform for industrial machines
- Supports 2 Independent 9-pin RS232 Serial Ports
- Exar Chipset: XR17V352
- PCIe 2.0 Gen 1 Compliant. x1 Link, Dual Simplex, 2.5Gbps in Each Direction

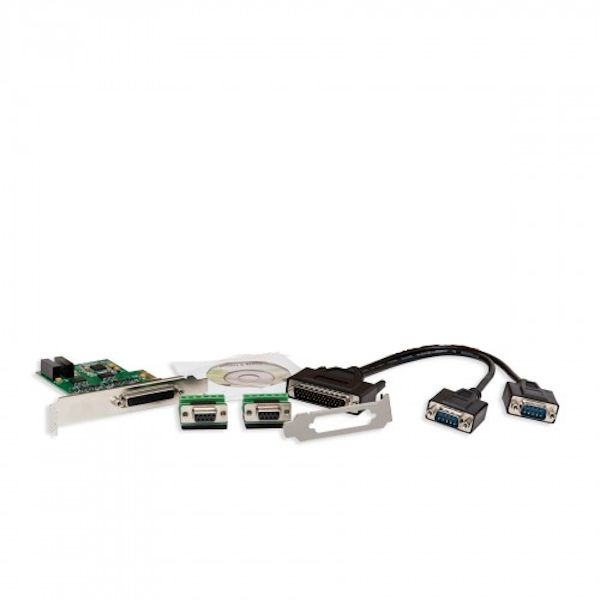

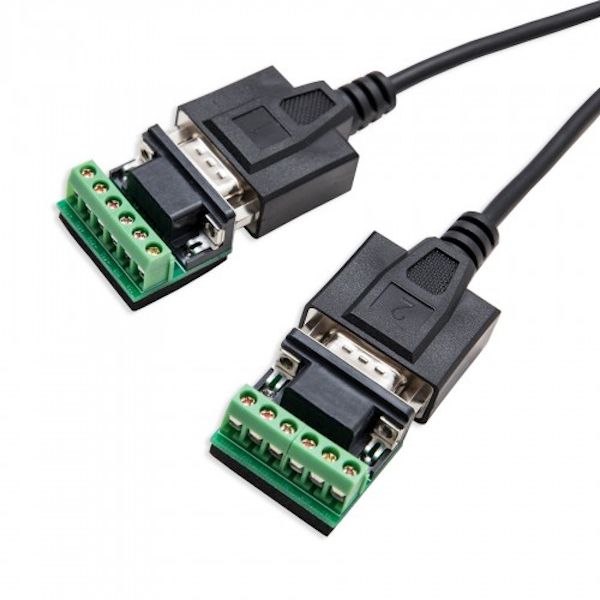

- Solderless DB9 Female Panel Mountable Field Terminator Adapter (9-pin to 6-Pin): Built custom cable assemblies and patch panels with ease Patented large terminal block design simplifies termination while maintaining a compact profile for reduced installa
- 15 KV ESD Protection. Asynchronous Working, Point-to-Point or Point-to-Multipoint 2 Wires (Half Duplex) 4 Wires (Full Duplex)
- Sleep Mode with Wake-Up Indicator.UART Interface Support for 7 or 8 Data Bits, 1 or 2 Stop Bits and Even/Odd/Mark/Space/None
- Flow Control None, Hardware and xon/xoff. Operating Temperature Range: -40C to 85C
