SL-RACK-TL-SR12UBFFD
SmartRack 12U Mid-Depth Rack Enclosure Cabinet for Harsh Environments
This Item Requires LTL Freight Shipping.

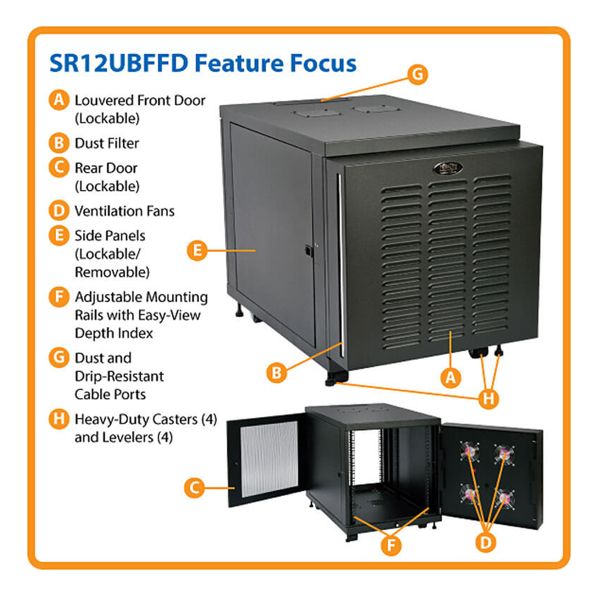

- 12U floor enclosure
- Protection from falling dirt, dust, drips, splashes and accidental contact with personnel
- Adjustable mounting depths from 3" to 32.5" inches

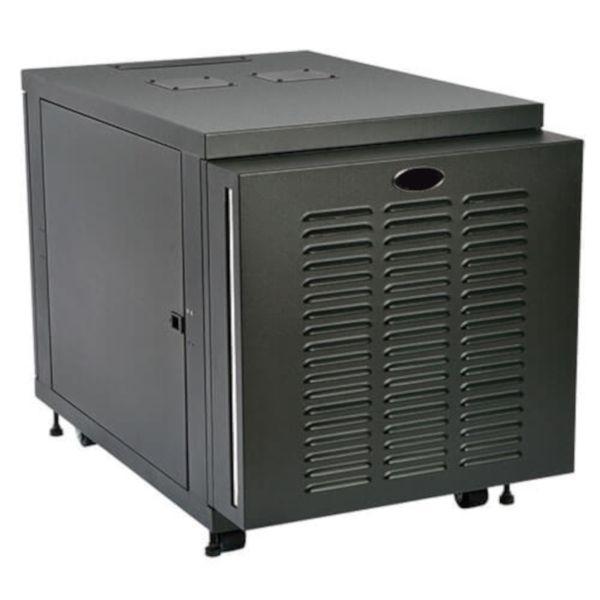

- Front door has ventilating louvers

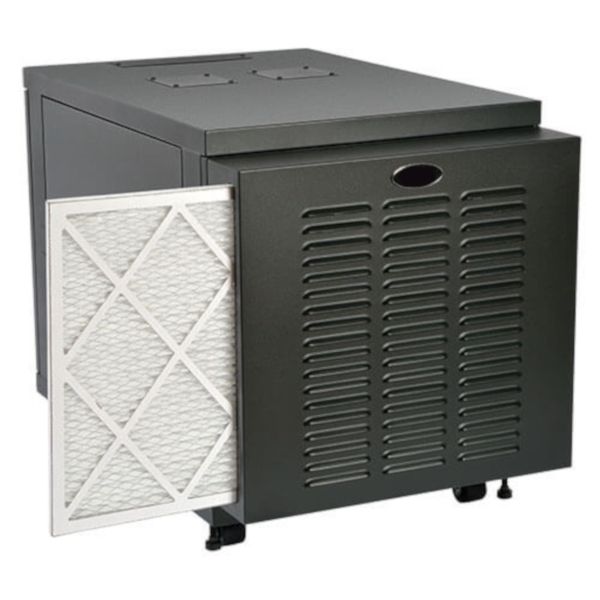

- Built-in removable dust filter that can be replaced with standard furnace filters (20" x 24" x 1")

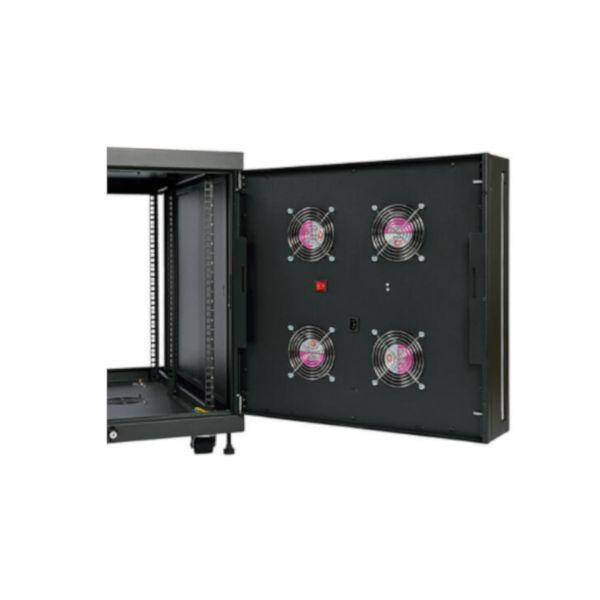

- 4 large, high-performance fans in front door that pull air through the enclosure, from front to rear
- 2 cable ports allow cable access while maintaining dust and moisture resistance
- Locking, reversible front door
- Locking, removable solid side panels
- Fully assembled for quick installation
- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance
INPUT
Nominal Input Voltage(s) Supported 120V AC
Nominal Input Voltage Description 120V 50/60 Hz
Input Plug Type NEMA 5-15P
Input Cord Length (ft.) 10
PHYSICAL
Rack Height 12U
Maximum Device Depth (in.) 32.5
Minimum Device Depth (in.) 3
Shipping Dimensions (hwd / in.) 30.90 x 25.00 x 39.80
Shipping Weight (lbs.) 134.00
Unit Dimensions (hwd / in.) 25.2 x 23.6 x 38.5
Unit Weight (lbs.) 96
Color Black
Weight Capacity - Stationary (lbs.) 1000
Weight Capacity - Rolling (lbs.) 1000
Factory Preset Rack Depth (in.) 10.42
SPECIAL FEATURES
Grounding Lug Front and back door frames
Built-in Cable Management Yes
CERTIFICATIONS
Approvals EIA-310-E, IEC 60297-3-100, IP54 Protection Rating,RoHS
