SL-1U-C7H61-LA This item is no longer available.

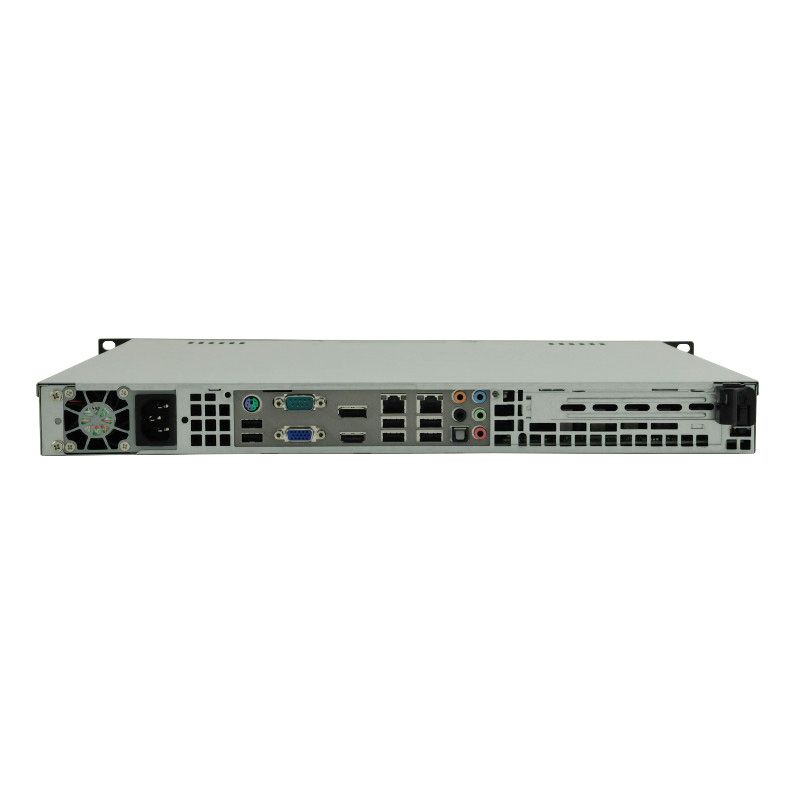

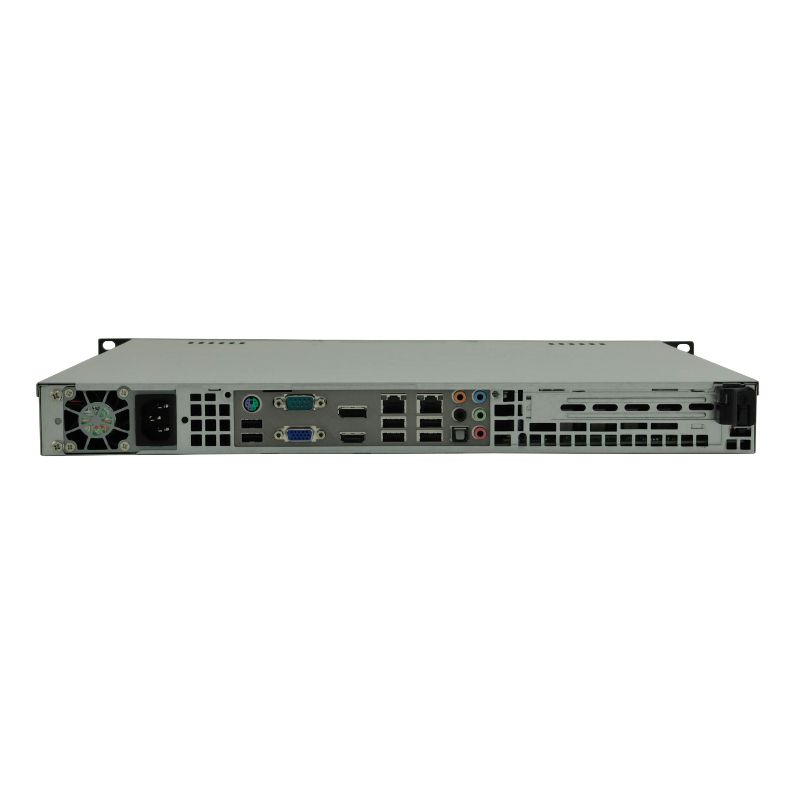

1U Rack Mount Industrial PC - Rackmount featuring Long Production Cycle Motherboard (Through Q1 2018) with Intel H61 Chipset, 3rd Gen Core i3/i5/i7 (LGA1155, 'Ivy Bridge'), 2x 1GbE (10/100/1000) LAN, 1x Serial, Up to 16GB RAM, 10x USB 2.0 Ports ( 6 Rear, 4 Internal Headers ), Power Supply 200W ATX12V Power Supply.
Type:
- 1U Rack Mount Industrial PC
- Depth: 14", Max Card Depth: 8"
Motherboard:
- Featuring Intel H61 Chipset and 3rd Gen Core i3/i5/i7 (LGA1155, 'Ivy Bridge') processor
- Long Production Cycle Motherboard (Through Q1 2018)
- LAN: 2x Ports (1GbE (10/100/1000))
- Video: VGA + DisplayPort + HDMI
- Audio: 7.1 Channel HD Audio by Realtek® ALC888S
- Ports:
10x USB 2.0 Ports ( 6 Rear, 4 Internal Headers )
1x COM Port (RS232 Rear)
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)
Also Included:
- Processor: G1620 - 2.7GHz Intel Dual Core Celeron CPU - 2MB Cache, HD Graphics (55W) (ERM)
- Memory: 4GB DDR3 1600MHz RAM
- Hard Drive: 1.0TB SATA 6.0Gb/s 7200RPM 64MB 3.5" - WD Blue
- Power Supply: 200W ATX12V Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: ATX
- Long Production Cycle
- Long Life: YES
- EOL Date: Q1 2018
- Supported CPU
- Number of Processors: 1
- Processor Type: 3rd Gen Core i3/i5/i7 (LGA1155, 'Ivy Bridge')
- Chipset
- Chipset: Intel H61 Chipset
- Memory
- Memory Type: DDR3 1600MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 16GB
- On Board Audio
- Audio Type: 7.1 Channel HD Audio by Realtek® ALC888S
- On Board Video
- Video Chipset: Intel HD Graphics, HD 2000/3000
- Video on IO: VGA + DisplayPort + HDMI
- VGA Port Out: 1
- Display Port Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 2
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Intel® 82579V
- Second LAN Chipset: Intel® 82574L
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA II Ports (3GB): 4
- SATA III Ports (6GB): 2
- Rear IO
- USB 2.0 Ports (on IO): 6
- Serial (Rear IO): 1
- SPDIF Connector: 1
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 4
- FAN Connectors: 4
- DOM
- Chassis Intrusion
- Management Features
- Watch Dog
- Environmental
- Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows XP Pro (32-bit)
- OS-WIN-7 Pro to XP Pro 32Bit
- Windows 7 Ultimate (64-bit)
- Windows 7 Pro (32-bit)
- Windows 7 Pro (64-bit)
- Windows 7 Pro (FES) 32-Bit
- Windows 7 Pro (FES) 64-Bit
- SL-Windows 10PRO to 7PRO 32-bit
- SL-Windows 10PRO to 7PRO 64-bit
- Windows Embedded 7 (32-Bit)
- Windows Embedded 7 (64-Bit)
- Windows 8.1 (32-bit)
- Windows 8.1 (64-bit)
- Windows 8.1 Pro (32-bit)
- Windows 8.1 Pro (64-bit)
- Windows Embedded 8 (32-bit)
- Windows Embedded 8 (64-bit)
- LINUX Ubuntu Desktop
- Compliance of Component
- CCC
- Other Features
- Other Features:
- 1x PCI-E 3.0 x16
- 1x PCI-E 2.0 x1
- 5x 32-bit PCI slots (5V Key)
* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: 1U Rackmount
- Color: Black & Silver
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: ATX
- Slide Rails: Optional
- Expansion
- Full Height Slots: 1
- Max Card Depth: 8"
- Internal 3.5" Bays: 2
- Cooling System
- Maximum Fan Count: 1
- Included Fans: 1
- Physical
- Depth: 14"
- Depth (Inches): 14
- Width: 16.80"
- Height: 1.75"
- Shipping Box - Depth: 22"
- Shipping Box - Width: 21"
- Shipping Box - Height: 7"
- Shipping Weight: 13lbs
- Compliance of Component
- CE
- FCC
- CCC
- Other Features
- Chassis Warranty: 1 Year
- Power
- Built-in Chassis Power Supply: 200W ATX12V Power Supply
- Remote Server Management:
