SL-5U-AZ890PA-SA

5U Rack Mount Workstation - Rackmount featuring Intel Z890 Chipset, Intel® Core™ Ultra Processors (Series 2), LGA1851, 2x 2.5GbE + 10GbE LAN, WIFI,1x Serial, Up to 256GB RAM, 3x USB 2.0 Ports ( 1 Rear, 2 Internal Headers ), 2x USB 3.2 Gen 1 Ports ( 2 Front ), 6x USB 3.2 Gen 2 Ports ( 6 Rear ), 1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers ), 3x Expansion Slots.

main product photo


Type:

  • 5U Rack Mount Workstation
  • Depth: 20.87", Max Card Depth: Length: 455mm (without installing front fans and radiators)"

Motherboard:

  • Featuring Intel Z890 Chipset and Intel® Core™ Ultra Processors (Series 2), LGA1851 processor
  • Full Height Slots:
    3 - PCIe x16
  • LAN: 2x Ports (2.5GbE + 10GbE )
  • WiFi: Wi-Fi 7 + BT 5.4
  • RAID: 0,1,5,10 and NVMe 0,1,5
  • Video: HDMI + Thunderbolt 5 + Thunderbolt 5 + Thunderbolt 4
  • Audio: Realtek ALC1220P Surround Sound High Definition Audio CODEC
  • Ports:
    3x USB 2.0 Ports ( 1 Rear, 2 Internal Headers )
    2x USB 3.2 Gen 1 Ports ( 2 Front )
    6x USB 3.2 Gen 2 Ports ( 6 Rear )
    1x USB 3.2 Gen 2 Type-C Port ( 1 Internal Headers )
    2x Thunderbolt™ 5 Type-C Port (Rear)
    1x Thunderbolt™ 4 (supports USB 4.0) Type-C Port (Rear)
    1x COM Port (RS232 Internal Headers)
    See specifications for more ports
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF)

Also Included:

  • Processor: Intel® Core™ Ultra 5 Processor 245K Processor Cores (P+E) 14 (6+8) Intel® Smart Cache (L3, MB) 24, PL2 159W
  • Memory: 2 x 8GB DDR5 4800MHz RAM Non-ECC Unbuffered DIMM
  • Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
  • Power Supply: 850W ATX12V / EPS12V Full Modular Power Supply - 80+ Gold Certified
  • Operating System: Not Included - See options below
  • Warranty: One-Year Depot Warranty
Expedite  |  Processor  |  Memory  |  CD/DVD/OpticalDrive  |  Hard Drive  |  Additional Hard Drives  |  Raid Controller  |  Cable  |  Plug-In Boards  |  Add-In Graphic Card  |  Networking  |  Power Supply  |  Operating System  |  Warranty  |  Monitors  |  Keyboard/Mouse  |  External Power  |  Mounting Option  |
Fast, Fastest. Configure your computer with all QuickShip components and Rush your order for Fastest assembly time. Configure with all QuickShip components for Fast Assembly time.

* Required Fields

MotherBoard Specifications:

  • Motherboard Model
  • Motherboard Type: ATX
  • Supported CPU
  • Number of Processors: 1
  • Processor Type: Intel® Core™ Ultra Processors (Series 2), LGA1851
  • Chipset
  • Chipset: Intel Z890 Chipset
  • Memory
  • Memory Type: DDR5 4800MHz
  • Memory Type: Non-ECC
  • DIMMS: 4
  • Maximum Memory: 256GB
  • On Board Audio
  • Audio Type: Realtek ALC1220P Surround Sound High Definition Audio CODEC
  • On Board Video
  • Video Chipset: Supported by CPU - depends on CPU selected
  • Video on IO: HDMI + Thunderbolt 5 + Thunderbolt 5 + Thunderbolt 4
  • HDMI Out: 1
  • Thunderbolt™ video outputs: 2
  • LAN
  • LAN Ports: 2
  • LAN Type: 2.5GbE + 10GbE
  • LAN Chipset: Intel® 2.5Gb Ethernet
  • Second LAN Chipset: Marvell® AQtion 10Gb Ethernet
  • Wireless LAN: Wi-Fi 7 + BT 5.4
  • Drive Interface
  • SATA III Ports (6GB): 4
  • RAID
  • RAID Type: Software RAID
  • RAID Levels Supported on Motherboard: 0, 1, 5, 10
  • Expansion Slots
  • PCI Express x16 Slots On Motherboard: 3
  • M.2 Slot Specs
  • Total M.2 NVMe SSD Slots: 5
  • M.2 Slot #1 Specs
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.
  • 22110 - 22 mm x 110 mm.
  • M.2 Slot #2 Specs
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.
  • M.2 Slot #3 Specs
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.
  • M.2 Slot #4 Specs
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.
  • M.2 Slot #5 Specs
  • M.2 SATA SSD
  • 2242 - 22 mm x 42 mm.
  • 2260 - 22 mm x 60 mm.
  • 2280 - 22 mm x 80 mm.
  • None

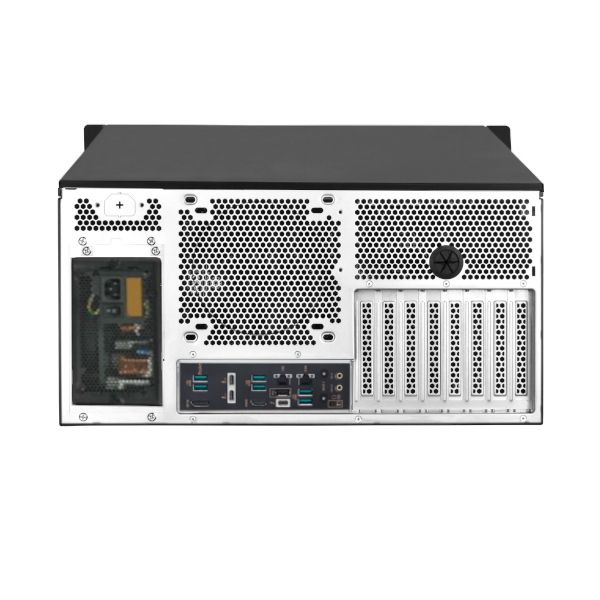

  • Rear IO
  • USB 2.0 Ports (on IO): 1
  • USB 3.2 Gen 2 Type A Ports (on IO): 6
  • Thunderbolt™ 4 (supports USB 4.0) Type-C Port: 1
  • Thunderbolt™ 5 Type-C Port (Rear): 2
  • Audio on IO
  • Headers
  • USB 2.0 Ports (on Headers): 2
  • USB 3.2 Gen 1 Ports (on Headers): 2
  • USB 3.2 Gen 2 Type-C (on Headers): 1
  • Serial (via Headers): 1
  • FAN Connectors: 9
  • Audio on Headers
  • TPM Support: Via 2.0 Header
  • Environmental
  • Operating Temperature: 10ºC to 35ºC (50ºF to 95ºF )
  • High Humidity: 95%
  • Low Humidity: 5%
  • Operating System Support
  • Windows 11 Home (64 Bit)
  • Windows 11 Pro (64 Bit)
  • Windows 11 Pro for WS (64 Bit)
  • Windows 11 IoT 2024 LTSC High End
  • Compliance of Component
  • CE
  • RoHS
  • FCC
  • Other Features
  • Features:

    Expansion Slot

    Intel® Core™ Ultra Processors (Series 2) *
    2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
    Intel® Z890 Chipset
    *1 x PCIe 4.0 x16 slot (supports x4 mode)

    Storage

    Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
    Intel® Core™ Ultra Processors (Series 2) *
    M.2_1 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    Intel® Z890 Chipset
    M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
    M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**
    4 x SATA 6Gb/s ports
    * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
    ** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled.

    Graphics

    1 x HDMI™ port**
    2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
    1 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs****
    * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

    * Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.

    If you have any questions, please discuss with our Sales Engineers.

  • Motherboard Warranty: 1 Year

Chassis Specifications:

  • General
  • Form Factor: 5U Rackmount
  • Color: Black
  • Material: Metal/Steel
  • Material Thickness: 1mm
  • Motherboard Compatibility: SSI EEB
  • Redundant Power Supply Capable
  • Slide Rails: Optional
  • Expansion
  • Full Height Slots: 8
  • Max Card Depth: Length: 455mm (without installing front fans and radiators)"
  • Internal 3.5" Bays: 4
  • Internal 2.5" Bays: 4
  • Front Ports
  • USB 3.2 Ports (Front): 2
  • USB Type-C (Front): 1
  • Cooling System
  • Maximum Fan Count: 6
  • Included Fans: 3
  • Physical
  • Depth: 20.87"
  • Width: 17.30"
  • Height: 8.66"
  • Shipping Weight: 71lbs
  • Other Features
  • Features:
    Expansion card
    Length: 455mm (without installing front fans and radiators)
    Width w/ expansion card retainer: 157mm
    Width w/o expansion card retainer: 198mm

    Limitation of CPU cooler
    Height w/ expansion card retainer: 181mm
    Height w/o expansion card retainer: 192mm

    Limitation of PSU
    160mm~190mm
    (Removal of 3.5" drive cage eliminates PSU depth limitation)

    Dimension
    Incl. rear fan cage: 440mm (W) x 220mm (H) x 530mm (D), 51.3 liters
    Excl. rear fan cage: 440mm (W) x 220mm (H) x 485mm (D), 46.95 liters
    Incl. rear fan cage: 17.3" (W), 8.66" (H), 20.87" (D)
    Excl. rear fan cage: 17.3" (W), 8.66" (H), 19.1" (D)
  • Chassis Warranty: 1 Year
