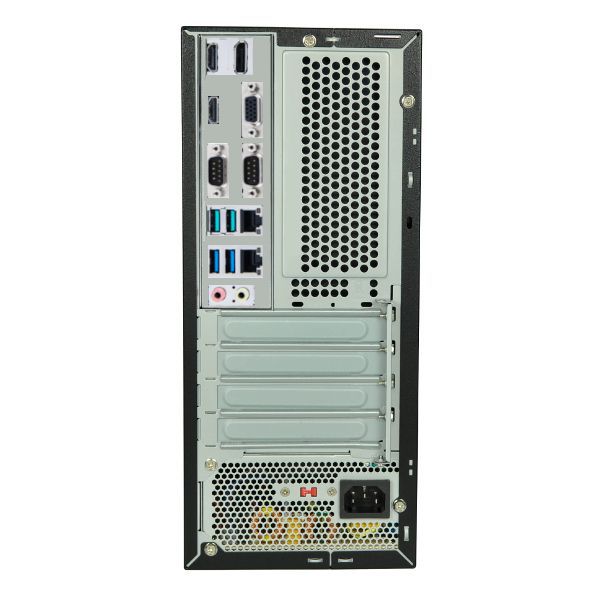

SL-DK-LLH610IM-ID
Desktop PC - Desktop featuring Intel H610 Chipset, 14th/13th/12th Gen Intel® Core™/Pentium™/Celeron™, 2x 1GbE + 1GbE LAN, 6x Serial, Up to 64GB RAM, 4x USB 2.0 Ports ( 4 Front ), 2x USB 3.2 Gen 1 Ports ( 2 Rear ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 4x Expansion Slots, Power Supply 300 Watt Power Supply.
Type:
- Desktop PC
- Dimension: 10.80" x 5.50" x 12.70"
Motherboard:
- Featuring Intel H610 Chipset and 14th/13th/12th Gen Intel® Core™/Pentium™/Celeron™ processor
- Full Height Slots:
1 - PCIe x16
1 - PCIe x4
2 - PCI - LAN: 2x Ports (1GbE + 1GbE)
- Video: HDMI + HDMI + DisplayPort + VGA
- Audio: Realtek® ALC897
- Ports:
4x USB 2.0 Ports ( 4 Front )
2x USB 3.2 Gen 1 Ports ( 2 Rear )
2x USB 3.2 Gen 2 Ports ( 2 Rear )
6x COM Ports (4 RS232 Internal Headers, 2 RS232/422/485 Rear)
1x Front Audio Port
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)
Also Included:
- Processor: G7400- 3.70GHz Intel Pentium Gold CPU - Dual Core, 6MB Cache, UHD Graphics 710 (Base 46W) (ERM)
- Memory: 8GB DDR4 3200MHz RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply:300 Watt Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty

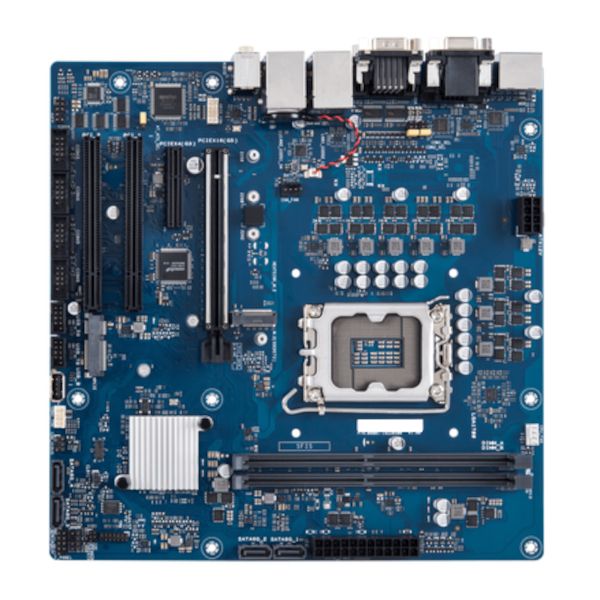

MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MicroATX
- Supported CPU
- Number of Processors: 1
- Processor Type: 14th/13th/12th Gen Intel® Core™/Pentium™/Celeron™
- Chipset
- Chipset: Intel H610 Chipset
- Memory
- Memory Type: DDR4 3200MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 64GB
- On Board Audio
- Audio Type: Realtek® ALC897
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: HDMI + HDMI + DisplayPort + VGA
- VGA Port Out: 1
- Display Port Out: 1
- HDMI Out: 2
- LAN
- LAN Ports: 2
- LAN Type: 1GbE + 1GbE
- LAN Chipset: Intel® i219V
- Second LAN Chipset: Realtek RTL8111H
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 4
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 1
- PCI Express x4 Slots On Motherboard: 1
- PCI Slots (Conventional 32-Bit): 2
- Mini PCIe
- mini PCIe
- USB and PCIe signals (Internal)
- half and/or full size mini PCIe card: full/half size
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 1
- M.2 Slot #1 Specs
- M.2 SATA SSD
- PCIe Signal
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.

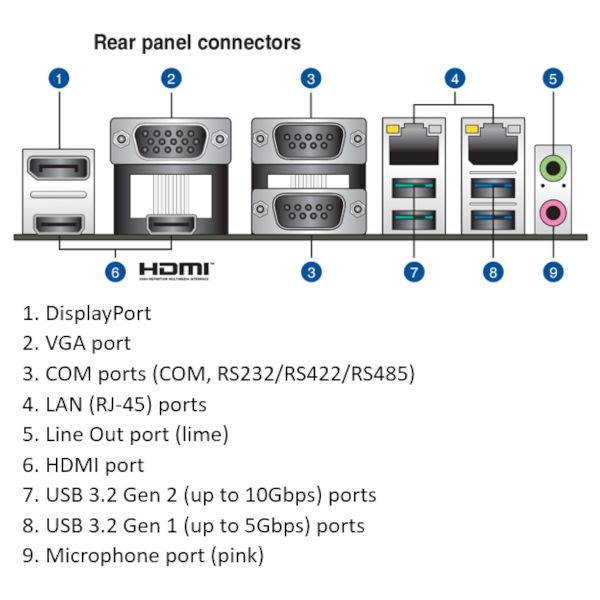

- Rear IO
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- USB 3.2 Gen 2 Type A Ports (on IO): 2
- Serial 232/422/485 Ports: 2
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 4
- USB 2.0 Ports (Type A): 1
- Serial (via Headers): 4
- FAN Connectors: 2
- Audio on Headers
- TPM Support: Via 2.0 Header
- Management Features
- Watch Dog
- Environmental
- Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
- High Humidity: 95%
- Low Humidity: 10%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- SL-Windows 11PRO to 10PRO 64bit
- Windows 10 IoT 2021 LTSC Value
- Windows 10 IoT 2021 LTSC High End
- Windows 11 Home (64 Bit)
- Windows 11 Pro (64 Bit)
- Windows 11 Pro for WS (64 Bit)
- Windows 11 IoT 2024 LTSC Value
- Windows 11 IoT 2024 LTSC High End
- RED HAT Enterprise LINUX WORKSTATION STANDARD
- RED HAT Enterprise LINUX SERVER BASIC
- RED HAT Enterprise LINUX SERVER STANDARD
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- CE
- FCC
- Other Features
- Features:
Expansion slots
1x PCIe 5.0 x16 slot
1x PCIe 3.0/2.0 x4 slot (x1 mode)
2x PCI slots
1x full/half mini-PCIe slot
Storage
4x SATA Gen 3.0, up to 6.0 Gb/s ports
1x M.2 Socket 3 with M key, type 2242/2260/2280 (SATA/PCIe x4 mode)
*SATA_4 port shares bandwidth with M.2 slot.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: Mini Tower
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: Micro ATX
- Expansion
- Full Height Slots: 4
- Max Card Depth: 9.5 inches"
- External 5.25" Bays: 1
- Internal 3.5" Bays: 1
- External 3.5" Bays: 1
- Front Ports
- USB 2.0 Ports (Front): 4
- Front Audio Ports: 1
- Physical
- Depth: 10.80"
- Depth (Inches): 10.8
- Width: 5.50"
- Height: 12.70"
- Shipping Box - Depth: 23"
- Shipping Box - Width: 23"
- Shipping Box - Height: 15"
- Shipping Weight: 24lbs
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Chassis Warranty: 1 Year
- Power
- Built-in Chassis Power Supply: 300 Watt Power Supply
