SL-DK-LLH610M-ID
Desktop PC - Desktop featuring Long Production Cycle Motherboard (Through Q1 2025) withIntel H610 Chipset, 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron®, 1x 1GbE (10/100/1000) LAN, 2x Serial, Up to 64GB RAM, 8x USB 2.0 Ports ( 4 Front, 2 Rear, 2 Internal Headers ), 2x USB 3.2 Gen 1 Ports ( 2 Internal Headers ), 2x USB 3.2 Gen 2 Ports ( 2 Rear ), 4x Expansion Slots, Power Supply 300 Watt Power Supply.
Type:
- Desktop PC
- Dimension: 10.80" x 5.50" x 12.70"
Motherboard:
- Featuring Intel H610 Chipset and 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron® processor
- Long Production Cycle Motherboard (Through Q1 2025)
- Full Height Slots:
1 - PCIe x16
2 - PCIe x1
1 - PCI - LAN: 1x Ports (1GbE (10/100/1000))
- Video: VGA + DisplayPort + HDMI
- Audio: 7.1 HD Audio
- Ports:
8x USB 2.0 Ports ( 4 Front, 2 Rear, 2 Internal Headers )
2x USB 3.2 Gen 1 Ports ( 2 Internal Headers )
2x USB 3.2 Gen 2 Ports ( 2 Rear )
2x COM Ports (1 RS232 Rear, 1 RS232 Internal Headers)
1x Parallel Port (Headers)
1x Front Audio Port
See specifications for more ports - Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF)
Also Included:
- Processor: G7400- 3.70GHz Intel Pentium Gold CPU - Dual Core, 6MB Cache, UHD Graphics 710 (Base 46W) (ERM)
- Memory: 8GB DDR4 3200MHz RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply:300 Watt Power Supply
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MicroATX
- Long Production Cycle
- Long Life: YES
- EOL Date: Q1 2025
- Supported CPU
- Number of Processors: 1
- Processor Type: 13th & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
- Chipset
- Chipset: Intel H610 Chipset
- Memory
- Memory Type: DDR4 3200MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 64GB
- On Board Audio
- Audio Type: 7.1 HD Audio
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: VGA + DisplayPort + HDMI
- VGA Port Out: 1
- Display Port Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 1
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Intel® GbE LAN chip
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 4
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 1
- PCI Express x1 Slots On Motherboard: 2
- PCI Slots (Conventional 32-Bit): 1
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 1
- M.2 Slot #1 Specs
- PCIe Signal
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.

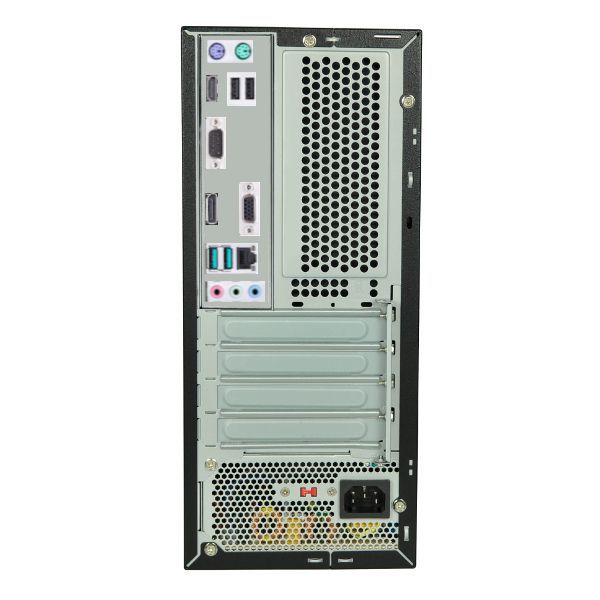

- Rear IO
- PS/2 Mouse on IO
- PS/2 Keyboard on IO
- USB 2.0 Ports (on IO): 2
- USB 3.2 Gen 2 Type A Ports (on IO): 2
- Serial (Rear IO): 1
- Headers
- USB 2.0 Ports (on Headers): 6
- USB 3.2 Gen 1 Ports (on Headers): 2
- Serial (via Headers): 1
- Parallel Ports: 1
- FAN Connectors: 2
- Audio on Headers
- Chassis Intrusion
- TPM Support: 2.0 Module Included
- Environmental
- Operating Temperature: 0ºC to 40ºC (32ºF to 104ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Pro (64-Bit)
- SL-Windows 11PRO to 10PRO 64bit
- Windows 10 IoT 2021 LTSC Value
- Windows 10 IoT 2021 LTSC High End
- Windows 11 Home (64 Bit)
- Windows 11 Pro (64 Bit)
- Windows 11 Pro for WS (64 Bit)
- Windows 11 IoT 2024 LTSC Value
- Windows 11 IoT 2024 LTSC High End
- LINUX Ubuntu Desktop
- Ubuntu Server Edition
- Compliance of Component
- RoHS
- FCC
- Other Features
- Features: TPM IC OnboardExpansion Slots
Intel® 13th & 12th Gen Processors
1 x PCIe 4.0 x16 slot
Intel® H610 Chipset
2 x PCIe 3.0 x1 slots
1 x PCI slot* Access to PCI Express slot requires expansion slot and a riser in some chassis models. Please check Chassis Specification section for more information.
If you have any questions, please discuss with our Sales Engineers
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: Mini Tower
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: Micro ATX
- Expansion
- Full Height Slots: 4
- Max Card Depth: 9.5 inches"
- External 5.25" Bays: 1
- Internal 3.5" Bays: 1
- External 3.5" Bays: 1
- Front Ports
- USB 2.0 Ports (Front): 4
- Front Audio Ports: 1
- Physical
- Depth: 10.80"
- Depth (Inches): 10.8
- Width: 5.50"
- Height: 12.70"
- Shipping Box - Depth: 23"
- Shipping Box - Width: 23"
- Shipping Box - Height: 15"
- Shipping Weight: 24lbs
- Compliance of Component
- CE
- RoHS
- FCC
- Other Features
- Chassis Warranty: 1 Year
- Power
- Built-in Chassis Power Supply: 300 Watt Power Supply
