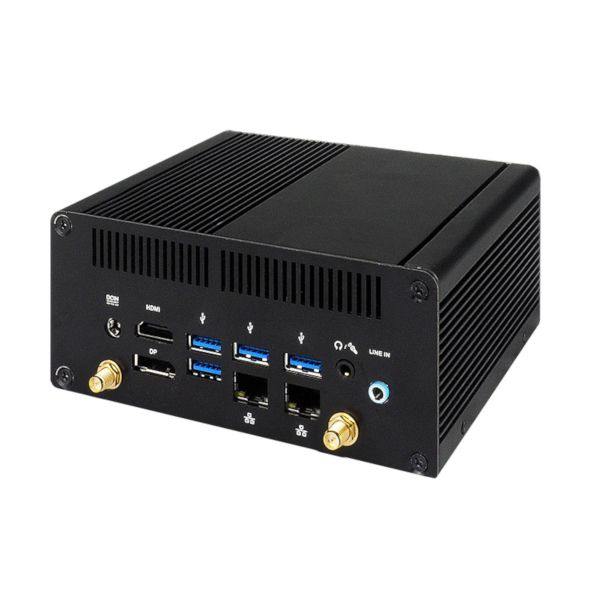

SL-EB-i3-7100UW-TPM-J
Microbox PC - Embedded PC featuring Long Production Cycle Motherboard (Through Q3 2030) with Intel Core i3 SoC, 7th Gen Core i3-7100U Kaby Lake-U 15W SoC processor, 2x 1GbE (10/100/1000) LAN, WIFI,1x Serial, Up to 32GB RAM, 2x USB 2.0 Ports ( 2 Front ), 6x USB 3.2 Gen 1 Ports ( 2 Front, 4 Rear ), Dimensions of Enclosure: 4.60"L x 5.67"W x 2.56"H.
Completely Fanless, TPM Support: 2.0 Module Included
Type:
- Microbox PC
- Dimension: 4.60" x 5.67" x 2.56"
Motherboard:
- Featuring Intel Core i3 SoC and 7th Gen Core i3-7100U Kaby Lake-U 15W SoC processor
- Long Production Cycle Motherboard (Through Q3 2030)
- LAN: 2x Ports (1GbE (10/100/1000))
- WiFi: Wireless 802.11 b/g/n
- Video: DisplayPort + HDMI
- Audio: Realtek® ALC662 HD Audio
- Ports:
2x USB 2.0 Ports ( 2 Front )
6x USB 3.2 Gen 1 Ports ( 2 Front, 4 Rear )
1x COM Port (RS232/422/485 Rear)
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Memory: 8GB DDR4 2666MHz SODIMM RAM
- Hard Drive: 120GB SSD SATA 6.0Gb/s, 500/320MB/s read/write (or greater)
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: uTX (117x112mm)
- Long Production Cycle
- Long Life: YES
- EOL Date: Q3 2030
- Fanless
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: 7th Gen Core i3-7100U Kaby Lake-U 15W SoC processor
- Chipset
- Chipset: Intel Core i3 SoC
- Memory
- Memory Type: SO DIMM DDR4 2133MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 32GB
- On Board Audio
- Audio Type: Realtek® ALC662 HD Audio
- On Board Video
- Video Chipset: Intel HD Graphics
- Video on IO: DisplayPort + HDMI
- Display Port Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 2
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Intel® i211AT
- Second LAN Chipset: Intel® i219LM
- Wireless LAN: Wireless 802.11 b/g/n
- Drive Interface
- SATA III Ports (6GB): 1
- Expansion Slots
- mini PCIe
- mSATA
- USB and PCIe signals (Internal)
- half and/or full size mini PCIe card: full size
- SIM Card Slot On Motherboard: SIM
- M.2 Slot Specs

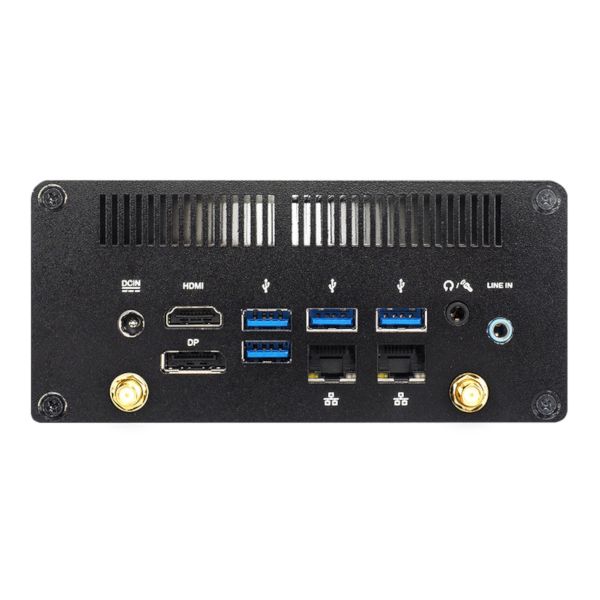

- Rear IO
- USB 3.2 Gen 1 Type A Ports (on IO): 4
- Serial 232/422/485 Ports: 1
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 2
- USB 3.2 Gen 1 Ports (on Headers): 2
- Management Features
- Watch Dog
- TPM Support: 2.0 Module Included
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 IoT Value 2019 LTSC
- SL-Windows 11PRO to 10PRO 64bit
- LINUX Ubuntu Desktop
- Compliance of Component
- CE
- RoHS
- FCC
- Warranty of Component
- Motherboard Warranty: 1 Year
- Other Features
- Other Features:
AC to DC Adapter / DC12V_5A_60W
AC 90~240V input
Chassis Specifications:
- General
- Form Factor: NUC Box
- Front Facing I/O
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Expansion
- Internal 2.5" Bays: 1

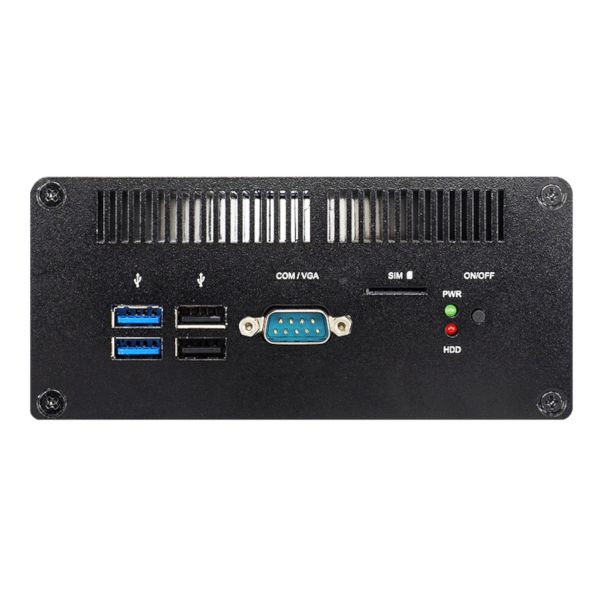

- Front Ports
- USB 2.0 Ports (Front): 2
- USB 3.2 Ports (Front): 2
- Physical
- Depth: 4.60"
- Depth (Inches): 4.6
- Width: 5.67"
- Height: 2.56"
- Shipping Box - Depth: 4.65"
- Shipping Box - Width: 9.85"
- Shipping Box - Height: 11.62"
- Shipping Weight: 7lbs
