SL-EB-LLH410I-S19
Microbox PC - Embedded PC featuring Long Production Cycle Motherboard (Through Q4 2026) with Intel H410 Chipset, 10th Gen Intel Core i7, i5, i3/Pentium/Celeron, 2x 1GbE + 1GbE LAN, 6x Serial, Up to 64GB RAM, 4x USB 2.0 Ports ( 4 Rear ), 2x USB 3.2 Gen 1 Ports ( 2 Rear ), 1x Expansion Slots, Dimensions of Enclosure: 8.30"L x 8"W x 3.50"H, Power Supply Power Adapter Included.
Type:
- Microbox PC
- Dimension: 8.30" x 8" x 3.50"
Motherboard:
- Featuring Intel H410 Chipset and 10th Gen Intel Core i7, i5, i3/Pentium/Celeron processor
- Long Production Cycle Motherboard (Through Q4 2026)
- Low Profile Slots:
1 - PCIe x16 - LAN: 2x Ports (1GbE + 1GbE)
- Video: VGA + DisplayPort + HDMI
- Audio: Realtek® ALC897
- Ports:
4x USB 2.0 Ports ( 4 Rear )
2x USB 3.2 Gen 1 Ports ( 2 Rear )
6x COM Ports (1 RS232 Rear, 4 RS232 Internal Headers, 1 RS232/422/485 Rear)
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)
Also Included:
- Processor: G5905- 3.50GHz Intel Celeron CPU - Dual Core, 4MB Cache, UHD Graphics 610 (58W)
- Memory: 8GB DDR4 2666MHz SODIMM RAM
- Hard Drive: 250GB SSD SATA 6.0Gb/s 560/530MB/s 2.5" - Samsung 870 EVO

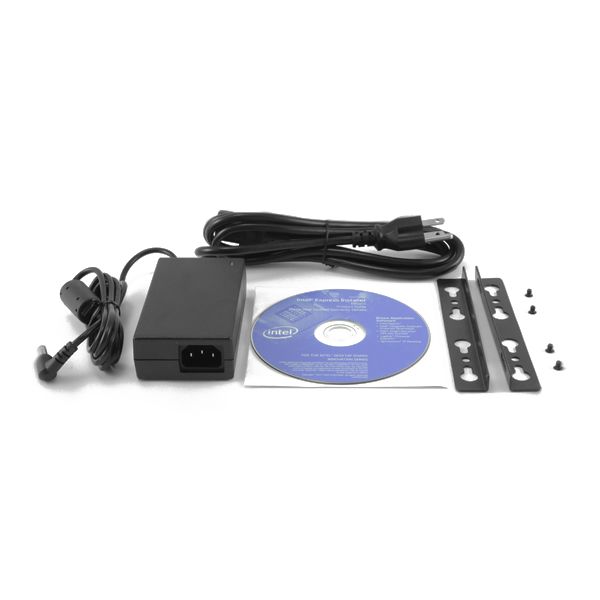

- Power Supply: 160w output, 12v input DC-DC Power Supply - AC Adapter Included
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MiniITX
- Long Life: YES
- EOL Date: Q4 2026
- Supported CPU
- Number of Processors: 1
- Processor Type: 10th Gen Intel Core i7, i5, i3/Pentium/Celeron
- Chipset
- Chipset: Intel H410 Chipset
- Memory
- Memory Type: SO DIMM DDR4 2666MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 64GB
- On Board Audio
- Audio Type: Realtek® ALC897
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: VGA + DisplayPort + HDMI
- VGA Port Out: 1
- Display Port Out: 1
- Embedded DisplayPort Out: 1
- HDMI Out: 1
- LAN
- LAN Ports: 2
- LAN Type: 1GbE + 1GbE
- LAN Chipset: Intel® i211AT
- Second LAN Chipset: Intel® i219LM
- Wireless LAN: No Integrated WLAN
- Drive Interface
- SATA III Ports (6GB): 2
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 1
- Mini PCIe
- mini PCIe
- USB and PCIe signals (Internal)
- half and/or full size mini PCIe card: full size
- M.2 Slot Specs
- 2242 - 22 mm x 42 mm.
- 2280 - 22 mm x 80 mm.

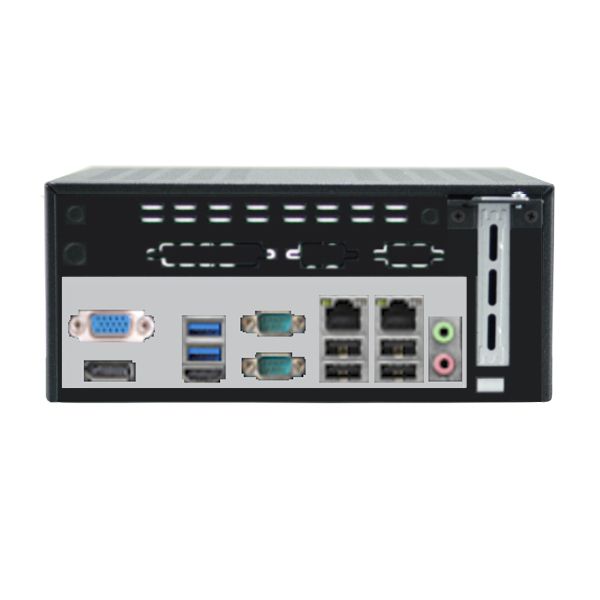

- Rear IO
- USB 2.0 Ports (on IO): 4
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- Serial (Rear IO): 1
- Serial 232/422/485 Ports: 1
- Audio on IO
- Headers
- Serial (via Headers): 4
- FAN Connectors: 2
- TPM Support: TPM via Intel Platform Trust Technology
- Management Features
- Watch Dog
- Environmental
- Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- SL-Windows 11PRO to 10PRO 64bit
- Windows 10 IoT Value 2019 LTSC
- Windows 10 IoT Ent 2019 LTSC
- Windows 10 IoT 2021 LTSC Value
- Windows 10 IoT 2021 LTSC High End
- Windows 11 Home (64 Bit)
- Windows 11 Pro (64 Bit)
- Windows 11 IoT 2024 LTSC Value
- Windows 11 IoT 2024 LTSC High End
- LINUX Ubuntu Desktop
- Other Features
- Other Features:
One PCI-Express x16 slot.
One PCI-Express Mini CardOne M.2 Key B type 2242/2280/3042/3052 includes PCIe x2, PCIe + SATA3.0, PCIe
+ USB 3.2 GEN1 interfacesOne M.2 Key E type 2230 with PCIe x1 and USB2.0.
- Motherboard Warranty: 1 Year
Chassis Specifications:
- General
- Form Factor: Embedded PC
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: Mini ITX
- Expansion
- Low Profile Slots: 1
- Max Card Depth: 7.5""
- Internal 2.5" Bays: 2
- Serial Port Punchouts: 2
- Parallel Port Punchouts: 1
- Cooling System
- Maximum Fan Count: 2
- Physical
- Depth: 8.30"
- Depth (Inches): 8.27
- Width: 8"
- Height: 3.50"
- Shipping Box - Depth: 150mm
- Shipping Box - Width: 380mm
- Shipping Box - Height: 27mm
- Shipping Weight: 13lbs
- Other Features
- Chassis Warranty: 1 Year
- Power
- Built-in Chassis Power Supply: Power Adapter Included
