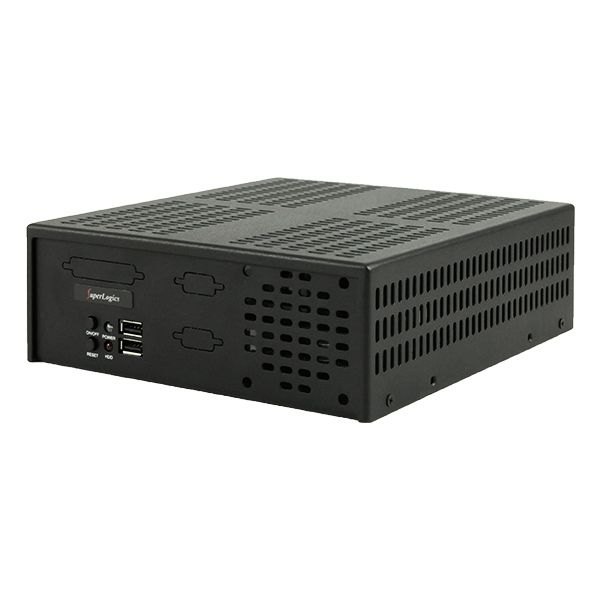

SL-EB-LLN100EM-S17
Fanless Microbox PCLong Production Cycle Motherboard (Through Q1 2026) with Intel Celeron SoC, Intel® Quad-core Processor N100 (up to 3.4 GHz), 2x 1GbE + 1GbE LAN, 6x Serial, Up to 16GB RAM, 3x USB 2.0 Ports ( 1 Front, 2 Rear ), 4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers ), Power Supply AC/DC Power Adapter Included.
Type:
- Fanless Panel PC
- Screen:

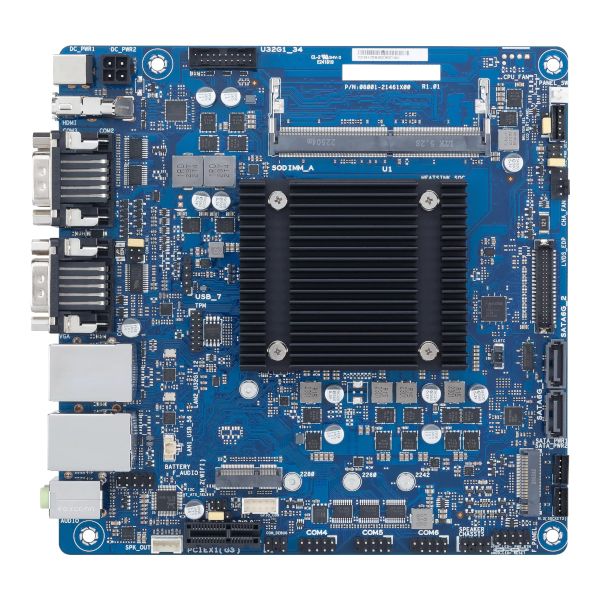

Motherboard:
- Featuring Intel Celeron SoC and Intel® Quad-core Processor N100 (up to 3.4 GHz)
- Long Production Cycle Motherboard (Through Q1 2026)
- No Available Slots
- LAN: 2x Ports (1GbE + 1GbE)
- Video: VGA + HDMI
- Audio: Realtek® ALC897

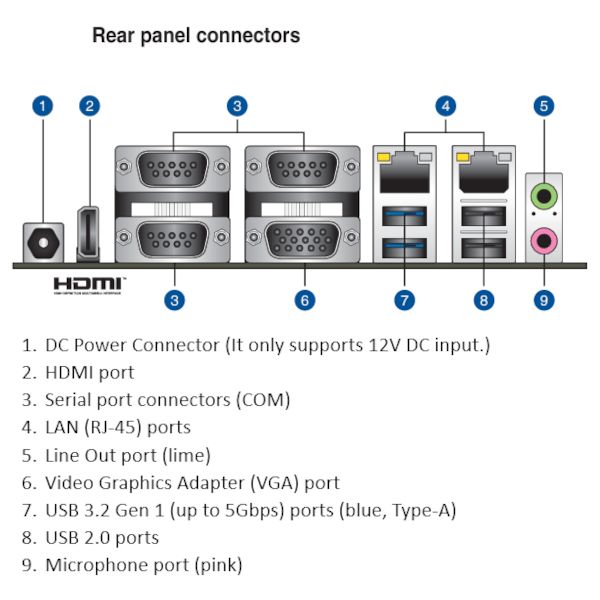

- Ports:
3x USB 2.0 Ports ( 1 Front, 2 Rear )
4x USB 3.2 Gen 1 Ports ( 2 Rear, 2 Internal Headers )
6x COM Ports (2 RS232 Rear, 3 RS232 Internal Headers, 1 RS232/422/485 Rear)
See specifications for more ports - Operating Temperature: 0ºC to 60ºC (32ºF to 140ºF)
Also Included:
- Memory: 8GB DDR4 3200MHz SODIMM RAM
- Hard Drive: 250GB NVMe SSD M.2 3.5GB/2.8GB - NV2

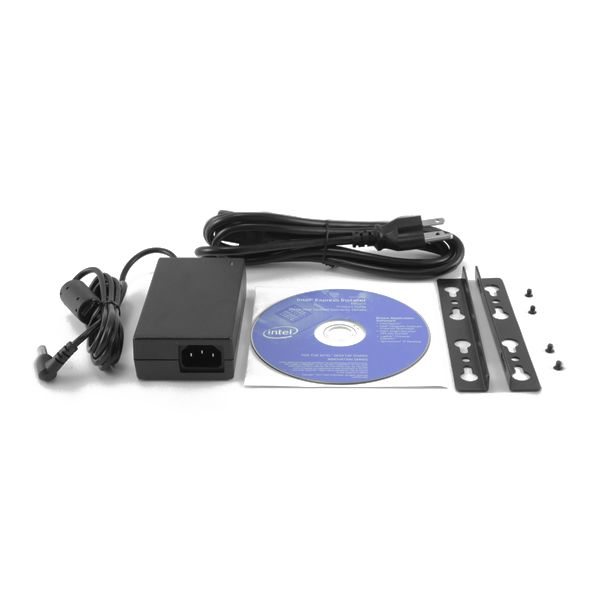

- Power Supply: AC/DC Power Adapter Included
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty

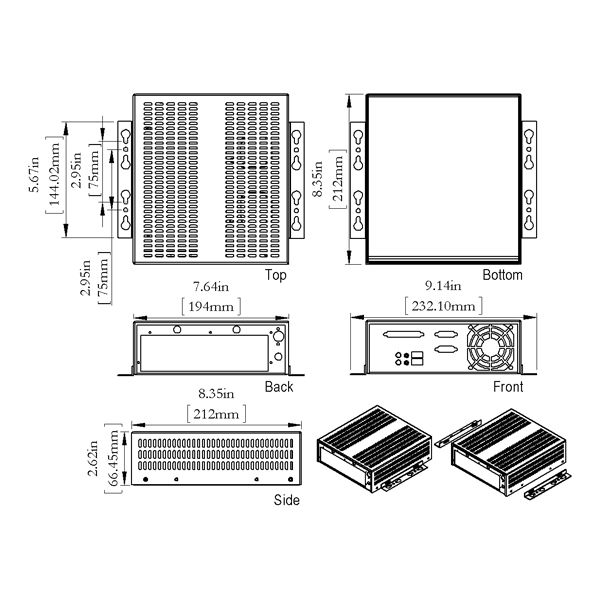

CASE-EBOX-S17v2
