SL-LCD-17A-PCTTOUCH-SUN-WV

Name: SL-LCD-17A-PCTTOUCH-SUN-WV
SKU: SL-LCD-17A-PCTTOUCH-SUN-WV
Price: 895.00 USD

17" TFT, Active Matrix (CCFL) Monitor with Multi-Touch Projected Capacitive Touch Screen - 1280 x 1024 Resolution, 1150 NITS Brightness, IP65 / NEMA4 Front Panel, Black

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Industrial Display

Screen Size (inches): 17"
Touch Type: Multi-Touch Projected Capacitive
Front Panel Rating: IP65 / NEMA4
Aspect Ratio: 5 : 4
Native Display Resolution: 1280 x 1024
Brightness (nits): 1150
Ports: HDMI In, Display Port In
Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately

Related Products

Technical Specifications

Display
Screen Size (inches): 17
Touch Type: Multi-Touch Projected Capacitive
Front Panel Rating: IP65 / NEMA4
Aspect Ratio: 5 : 4
Native Display Resolution: 1280 x 1024
Brightness (nits): 1150
Screen Refresh Rate: 60Hz
Display Area (H): 337.90mm
Display Area (V): 270.30mm
Aspect Ratio: 5 : 4
DisplayColors: 16.7 M
Contrast Ratio: 800:1
Backlight: TFT, Active Matrix (CCFL)
Viewing Angle(U) : 80
Viewing Angle(D) : 80
Viewing Angle(L) : 80
Viewing Angle(R) : 80
Connectivity
HDMI In: 1
Display Port In: 1
Touchscreen Interface USB Port (Front): 1

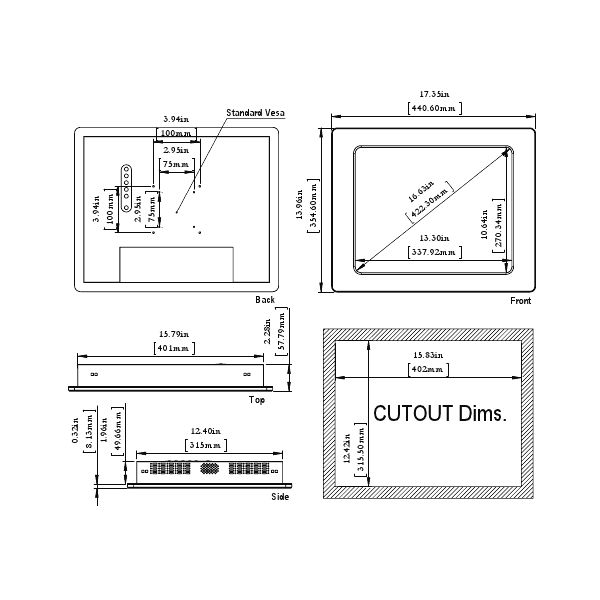

Mounting Options
Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately

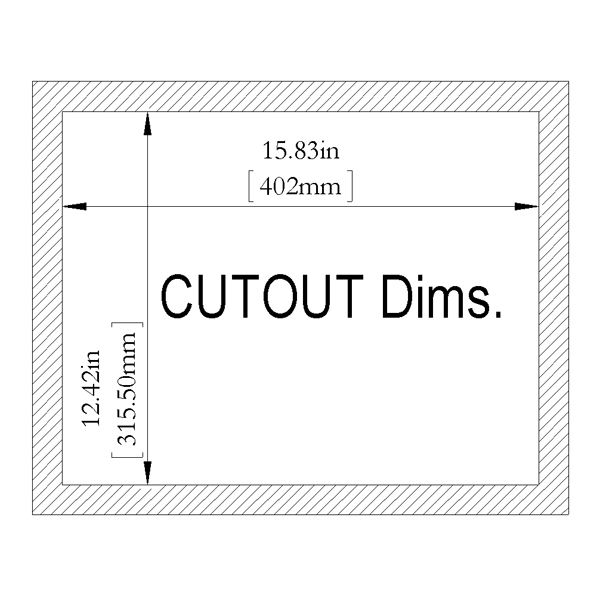

Suggested Cut-Out Dimension (Width):
Suggested Cut-Out Dimension (Height):
Physical
Width:
Height:
Depth:
Depth (Inches): Click Available Downloads Tab
Unboxed Weight: 12lbs
Shipping Weight: 35lbs
Environmental
MTBF: 30000hours
Maximum Operating Temperature: 50C
High Humidity: 90%
Low Humidity: 8%
Storage Temp (High): 60C
Storage Humidity (High): 90%
Storage Humidity (Low): 8%
Power
Power Supply: AC 100~240V/12V DC
Power Consumption (on): 20Watts
Compliance of Component
CE
RoHS
FCC
CCC
Warranty
Warranty: 1 year
Other
Built-in Chassis Power Supply: Wide DC Voltage Input: 9 - 36VDC
Features:
Industrial Display
- Screen Size: 17"
- Touch Type: Multi-Touch Projected Capacitive
- Front Panel Rating: IP65 / NEMA4
- Color: Black
- Native Display Resolution: 1280 x 1024
- Brightness (nits): 1150
- Wide DC Voltage Input: 9 - 36VDC
