SL-PPC-13AWHD-J3455-H-2LAN
13.3" Fanless HMI Panel PC with Multi-Touch Projected Capacitive Touch Screen Long Production Cycle Motherboard (Through Q3 2031) with Intel Celeron SoC, Intel Celeron J3455 Processor (1.5GHz Quad Core, Burst 2.3GHz) Intel® HD Graphics 500, TDP 10W, 2x 1GbE (10/100/1000) LAN, 1x Serial, Up to 8GB RAM, 2x USB 3.2 Gen 1 Ports ( 2 Rear ), 1920 x 1080 resolution, Power Supply Adapter: AC 90~240V / DC12V / 40W.
LCD requires 12VDC power supply (included), Separate Computer input is wide voltage input
Type:
- Fanless Panel PC
- Screen:
- 13.3" Multi-Touch Projected Capacitive, Native Resolution: 1920 x 1080, Front Panel Rating: Not Rated
- Mounting: Suitable for Mounting in Cut-Out
Motherboard:
- Featuring Intel Celeron SoC and Intel Celeron J3455 Processor (1.5GHz Quad Core, Burst 2.3GHz) Intel® HD Graphics 500, TDP 10W
- Long Production Cycle Motherboard (Through Q3 2031)
- LAN: 2x Ports (1GbE (10/100/1000))
- Video: VGA + HDMI
- Audio: Realtek® ALC662 HD Audio
- Ports:
2x USB 3.2 Gen 1 Ports ( 2 Rear )
1x COM Port (RS232/422/485 Rear)
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)

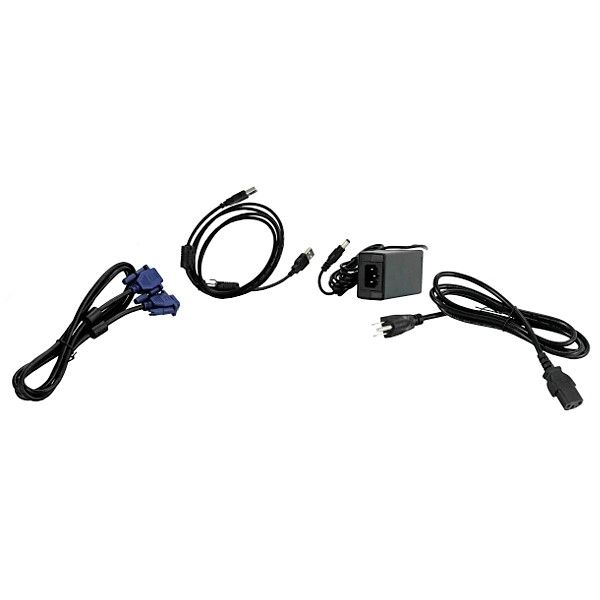

Also Included:
- Memory: 4GB DDR3L 1600MHz SODIMM RAM 1.35V
- Hard Drive: 256GB mSATA SSD SATA 6.0Gb/s, 550/500MB/s read/write (or greater)
- Power Supply: Adapter: AC 90~240V / DC12V / 40W
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: NUC (101x101 mm)
- Long Production Cycle
- Long Life: YES
- EOL Date: Q3 2031
- Fanless
- Supported CPU
- Number of Processors: 1
- Processor Type: Embedded CPUs (ultra-low power, soldered down)
- Embedded CPU: Intel Celeron J3455 Processor (1.5GHz Quad Core, Burst 2.3GHz) Intel® HD Graphics 500, TDP 10W
- Chipset
- Chipset: Intel Celeron SoC
- Memory
- Memory Type: DDR3 1600MHz
- Memory Type: Non-ECC
- DIMMS: 1
- Maximum Memory: 8GB
- On Board Audio
- Audio Type: Realtek® ALC662 HD Audio
- On Board Video
- Video Chipset: Supported by CPU - see Embedded CPU Information
- Video on IO: VGA + HDMI
- VGA Port Out: 1
- HDMI Out: 2
- LAN
- LAN Ports: 2
- LAN Type: 1GbE (10/100/1000)
- LAN Chipset: Realtek® RTL8111H
- Second LAN Chipset: Realtek RTL8111H
- Wireless LAN: No Integrated WLAN
- Expansion Slots
- mini PCIe
- mSATA
- half and/or full size mini PCIe card: full size
- Rear IO
- USB 3.2 Gen 1 Type A Ports (on IO): 2
- Serial 232/422/485 Ports: 1
- Audio on IO
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 IoT Entry 2019 LTSC
- Windows 10 IoT 2021 LTSC Entry
- SL-Windows 11PRO to 10PRO 64bit
- LINUX Ubuntu Desktop
- Compliance of Component
- CE
- RoHS
- FCC
- Warranty of Component
- Motherboard Warranty: 1 Year
Display Specifications
- Display
- Screen Size (inches): 13.3
- Touch Type: Multi-Touch Projected Capacitive
- Aspect Ratio: 16 : 9
- Native Display Resolution: 1920 x 1080
- Brightness (nits): 220
- Screen Refresh Rate: 60Hz
- Display Area (H): 293.76mm
- Display Area (V): 165.24"
- Aspect Ratio: 16 : 9
- DisplayColors: 16.7 M
- Contrast Ratio: 1000:1
- Backlight: LED
- Viewing Angle(U) : 178
- Viewing Angle(D) : 178
- Viewing Angle(L) : 178
- Viewing Angle(R) : 178

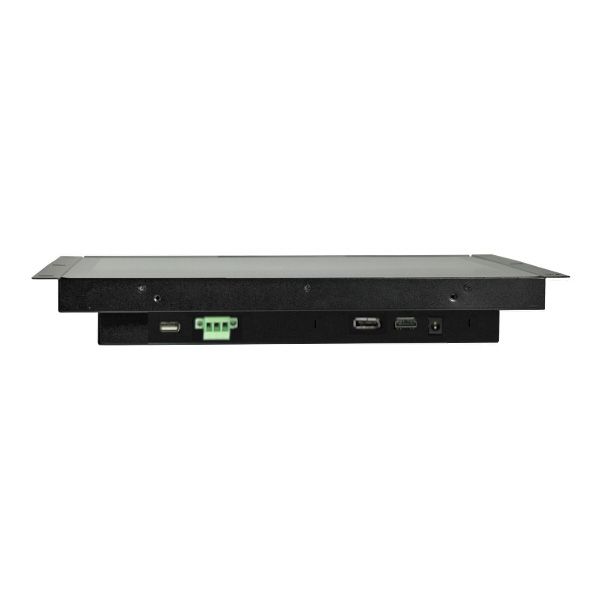

- Connectivity
- HDMI In: 1
- Display Port In: 1
- Touchscreen Interface USB Port (Front): 1

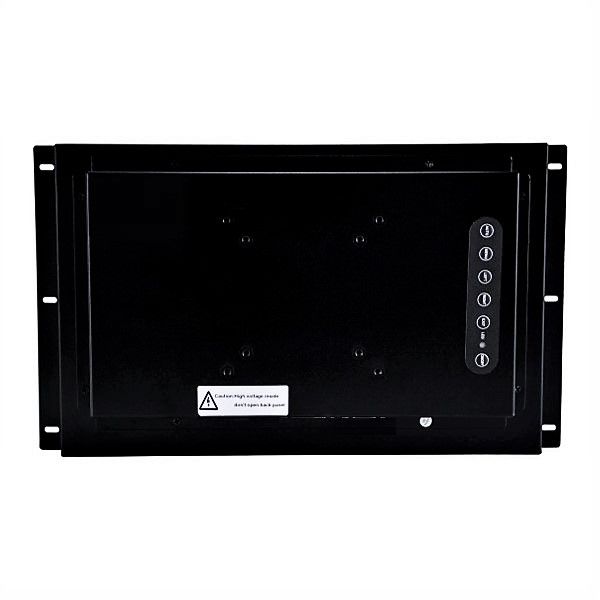

- Mounting Options
- Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Other options sold separately
- Suggested Cut-Out Dimension (Width):
- Suggested Cut-Out Dimension (Height):
- Physical
- Width:
- Height:
- Depth:
- Depth (Inches): Click Available Downloads Tab
- Unboxed Weight: 6lbs
- Shipping Weight: 11lbs
- Environmental
- MTBF: 30000hours
- Maximum Operating Temperature: 50C
- High Humidity: 90%
- Low Humidity: 5%
- Storage Temp (High): 60C
- Storage Temp (Low): -20C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 5%
- Power
- Power Supply: AC 100~240V/12V DC
- Power Consumption (on): 10Watts
- Compliance of Component
- RoHS
- Warranty
- Warranty: 1 year
- Other
- Built-in Chassis Power Supply: 9-36VDC Power Input
- Features:

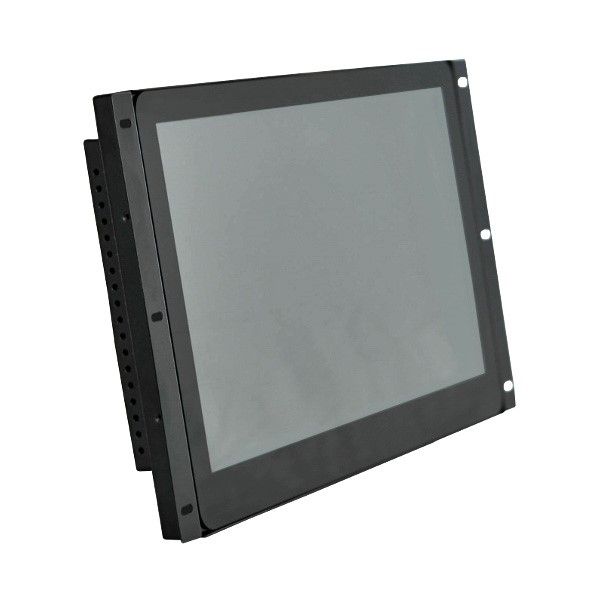

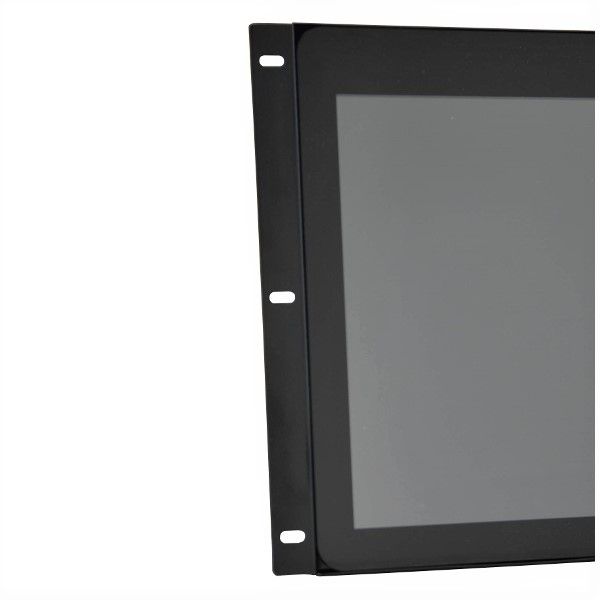

13.3" Open Frame Full HD Touch Widescreen - Mounting ears not removable
Display Specifications
- Display
- Screen Size: 13.3"
- Touch Type: Multi-Touch Projected Capacitive
- Front Panel Rating: Not Rated
- Color: Black
- Native Display Resolution: 1920 x 1080
- Brightness (nits): 220
- Aspect Ratio: 16 : 9
- DisplayColors: 16.7 M
- Contrast Ratio: 1000:1
- Backlight: LED
- 9-36VDC Power Input

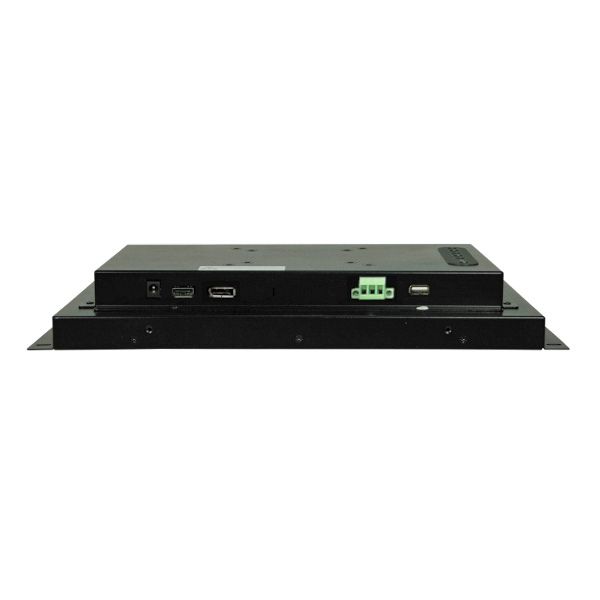

- Connectivity
- DisplayPort In: 1
- HDMI In: 1

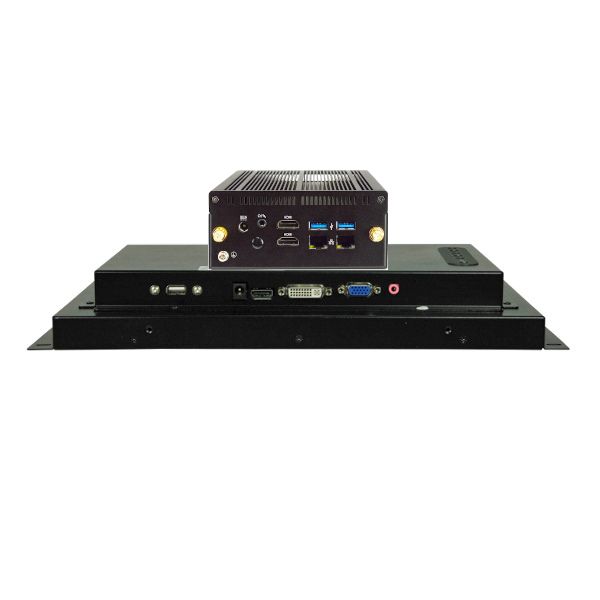

Chassis Specifications:
- General
- Form Factor: NUC Box
- Front Facing I/O
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Expansion
- Antennae Punchout: 2
- Front Ports
- USB 3.2 Ports (Front): 2
- Physical
- Depth: 109.20mm
- Width: 125mm
- Height: 55.50mm
- Shipping Box - Depth: 167mm
- Shipping Box - Width: 158mm
- Shipping Box - Height: 123.60mm
- Shipping Weight: 3lbs
- Power
- Built-in Chassis Power Supply: Adapter: AC 90~240V / DC12V / 40W
