SL-PPC-17A-i3-AZ370I-S17 This item is no longer available.
17" HMI Panel PC with 5-Wire Resistive Touch Screen Intel Z370 Chipset, 8th and 9th Gen Core i7/i5/i3 (LGA1151), 2x GB (10/100/1000) LAN, WIFI,Up to 32GB RAM, 4x USB 2.0 Ports ( 2 Front, 2 Rear ), 8x USB 3.2 Gen 1 Ports ( 6 Rear, 2 Internal Headers ), 1280 x 1024 resolution, Power Supply AC/DC Power Adapter Included.
Type:
- Panel PC
- Screen:
- 17" 5-Wire Resistive, Native Resolution: 1280 x 1024, Front Panel Rating: IP65 / NEMA4
- Mounting: Bezel Mounting Hardware Included, Suitable for Mounting in Cut-Out
Motherboard:
- Featuring Intel Z370 Chipset and 8th and 9th Gen Core i7/i5/i3 (LGA1151) processor
- No Available Slots
- LAN: 2x Ports (GB (10/100/1000))
- WiFi: Integrated Intel® 802.11ac WiFi Module + Bluetooth 4.2 - Removable Under Networking Section
- Video: Dual HDMI + DisplayPort
- Audio: 7.1+2 Channel HD Audio by Realtek ALC892
- Ports:
4x USB 2.0 Ports ( 2 Front, 2 Rear )
8x USB 3.2 Gen 1 Ports ( 6 Rear, 2 Internal Headers )
See specifications for more ports - Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF)
Also Included:
- Processor: i3-8100 - 3.6GHz Intel Quad-Core (4 cores) CPU - 6MB Cache, UHD Graphics 630 (65W) (ERM)
- Memory: 8GB DDR4 2666MHz RAM
- Hard Drive: 250GB NVMe SSD M.2 2.9GB/1.3GB - Samsung 980
- Power Supply: 90w output, 12v input DC-DC Power Supply - AC Adapter Included
- Operating System: Not Included - See options below
- Warranty: One-Year Depot Warranty
MotherBoard Specifications:
- Motherboard Model
- Motherboard Type: MiniITX
- Supported CPU
- Number of Processors: 1
- Processor Type: 8th and 9th Gen Core i7/i5/i3 (LGA1151)
- Chipset
- Chipset: Intel Z370 Chipset
- Memory
- Memory Type: DDR4 2400MHz
- Memory Type: Non-ECC
- DIMMS: 2
- Maximum Memory: 32GB
- On Board Audio
- Audio Type: 7.1+2 Channel HD Audio by Realtek ALC892
- On Board Video
- Video Chipset: Supported by CPU - depends on CPU selected
- Video on IO: Dual HDMI + DisplayPort
- Display Port Out: 1
- HDMI Out: 2
- LAN
- LAN Ports: 2
- LAN Type: GB (10/100/1000)
- LAN Chipset: Intel® i219V
- Second LAN Chipset: Intel® i211AT
- Wireless LAN: Integrated Intel® 802.11ac WiFi Module + Bluetooth 4.2 - Removable Under Networking Section
- Drive Interface
- SATA III Ports (6GB): 6
- RAID
- RAID Type: Software RAID
- RAID Levels Supported on Motherboard: 0, 1, 5, 10
- Expansion Slots
- PCI Express x16 Slots On Motherboard: 1
- M.2 Slot Specs
- Total M.2 NVMe SSD Slots: 1
- M.2 Slot #1 Specs
- M.2 SATA SSD
- PCIe Signal
- 2230 - 22 mm x 30 mm.
- 2242 - 22 mm x 42 mm.
- 2260 - 22 mm x 60 mm.
- 2280 - 22 mm x 80 mm.

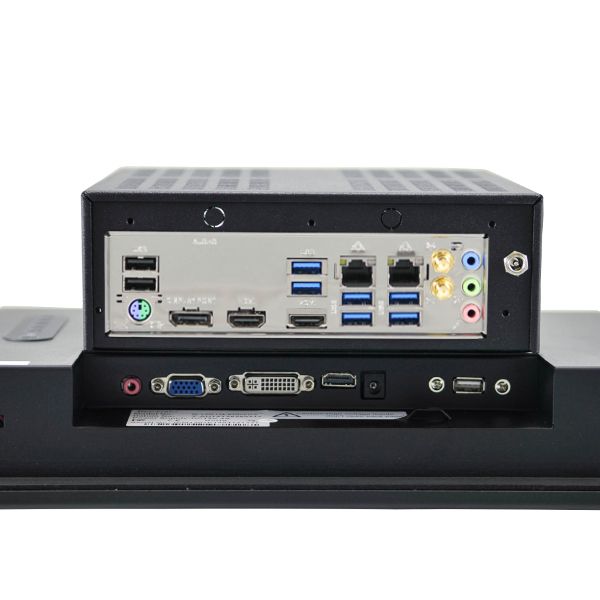

- Rear IO
- PS/2 Combo (Mouse/Keyboard)
- USB 2.0 Ports (on IO): 2
- USB 3.2 Gen 1 Type A Ports (on IO): 6
- Audio on IO
- Headers
- USB 2.0 Ports (on Headers): 2
- USB 3.2 Gen 1 Ports (on Headers): 2
- FAN Connectors: 3
- Audio on Headers
- Chassis Intrusion
- TPM Support: Via 2.0 Header
- Environmental
- Operating Temperature: 0ºC to 50ºC (32ºF to 122ºF )
- High Humidity: 90%
- Low Humidity: 5%
- Operating System Support
- Windows 10 Home (64 Bit)
- Windows 10 Pro (64-Bit)
- Windows 10 Pro WS (64-Bit)
- Windows 10 IoT Value
- Windows 10 IoT Ent
- LINUX Ubuntu Desktop
- LINUX Ubuntu Workstation
- Compliance of Component
- UL
- CE
- RoHS
- FCC
- Other Features
- Other Features:
1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)1 x Ultra M.2 Socket, supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
*If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
**Supports Intel® Optane™ Technology
Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit - Motherboard Warranty: 1 Year
Display Specifications
- Display
- Screen Size (inches): 17
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Aspect Ratio: 4:3
- Native Display Resolution: 1280 x 1024
- Brightness (nits): 250
- Screen Refresh Rate: 60Hz
- Display Area (H): 337.92mm
- Display Area (V): 270.33mm
- Aspect Ratio: 4:3
- DisplayColors: 16.7 M
- Contrast Ratio: 1000:1
- Backlight: LED
- Viewing Angle(U) : 80
- Viewing Angle(D) : 80
- Viewing Angle(L) : 80
- Viewing Angle(R) : 80
- Connectivity
- HDMI In: 1
- Display Port In: 1
- Touchscreen Interface USB Port (Front): 1
- Mounting Options
- Mounting Options: VESA 75mm x 75mm, VESA 100mm x 100mm, Bezel Mounting Hardware Included, Other options sold separately
- Suggested Cut-Out Dimension (Width):
- Suggested Cut-Out Dimension (Height):
- Physical
- Width:
- Height:
- Depth:
- Depth (Inches): Click Available Downloads Tab > Mechanical Drawings.
- Unboxed Weight: 12lbs
- Shipping Weight: 35lbs
- Environmental
- MTBF: 30000hours
- Maximum Operating Temperature: 50C
- High Humidity: 90%
- Low Humidity: 8%
- Storage Temp (High): 60C
- Storage Humidity (High): 90%
- Storage Humidity (Low): 8%
- Power
- Power Supply: AC 100~240V/12V DC
- Power Consumption (on): 13Watts
- Compliance of Component
- CE
- RoHS
- FCC
- CCC
- Warranty
- Warranty: 1 year
- Other
- Built-in Chassis Power Supply: Wide DC Voltage Input: 9 - 36VDC
- Features:
Industrial Display
- Screen Size: 17"
- Touch Type: 5-Wire Resistive
- Front Panel Rating: IP65 / NEMA4
- Native Display Resolution: 1280 x 1024
- Brightness (nits): 250
- Wide DC Voltage Input: 9 - 36VDC
Chassis Specifications:
- General
- Form Factor: Micro PC
- Color: Black
- Material: Metal/Steel
- Material Thickness: 1mm
- Motherboard Compatibility: Mini ITX
- Expansion
- Internal 2.5" Bays: 1
- Serial Port Punchouts: 2
- Parallel Port Punchouts: 1
- Antennae Punchout: 2
- Front Ports
- USB 2.0 Ports (Front): 2
- Cooling System
- Maximum Fan Count: 1
- Physical
- Depth: 8.27"
- Depth (Inches): 8.27
- Width: 7.60"
- Height: 2.60"
- Shipping Box - Depth: 13"
- Shipping Box - Width: 9"
- Shipping Box - Height: 5"
- Shipping Weight: 8lbs
- Other Features
- Chassis Warranty: 1 Year
- Power
- Built-in Chassis Power Supply: AC/DC Power Adapter Included
