SL-VIDEO-PNY-P600-2GB This item is no longer available.

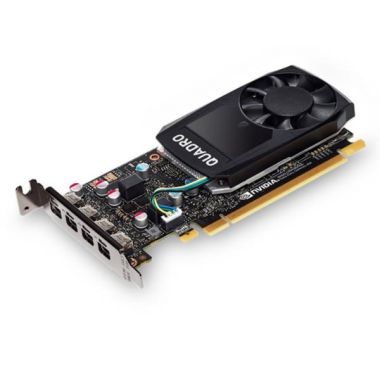

NVIDIA Quadro P600 2GB GDDR5 PCIe 3.0 x16 Workstation Video Card - 4 x Mini DisplayPort 1.4
Key Features
3D GRAPHICS ARCHITECTURE
- Scalable geometry architecture
- Hardware tessellation engine
- NVIDIA GigaThread engine with dual copy engines
- Shader Model 5.1 (OpenGL 4.5 and DirectX 12)
- Up to 32K x 32K texture and render processing
- Transparent multisampling and super sampling
- 16x angle independent anisotropic filtering
- 32-bit per-component floating point texture filtering and blending
- 64x full scene antialiasing (FSAA)
- Decode acceleration for MPEG-2, MPEG-4 Part 2 Advanced Simple Profile, H.264, HEVC, MVC, VC1, DivX (version 3.11 and later), and Flash (10.1 and later)
- Dedicated H.264 and HEVC Encoder
- Blu-ray dual-stream hardware acceleration (supporting HD picture-in-picture playback)
- NVIDIA GPU Boost (automatically improves GPU engine throughput to maximize application performance)
NVIDIA CUDA PARALLEL PROCESSING ARCHITECTURE
- SMM architecture (NVIDIA Pascal streaming multi-processor design that delivers greater processing and efficiency)
- Dynamic Parallelism (GPU dynamically spawns new threads without going back to the CPU)
- API support includes: CUDA C, CUDA C++, DirectCompute 5.0, OpenCL, Java, Python, and Fortran
- 96 KB of RAM (dedicated shared memory per SM)
ADVANCED DISPLAY FEATURES
- Support for any combination of four connected displays
- Four DisplayPort 1.4 outputs supporting resolutions such as 3840 x 2160 at 120Hz and 5120 x 2880 at 60Hz
- HDR support over DisplayPort 1.4 (SMPTE 2084/2086, BT. 2020) (4K at 60 Hz 10b/12b HEVC Decode, 4K at 60 Hz 10b HEVC Encode)
- HDCP 2.2 support over DisplayPort, DVI, and HDMI connectors
- 12-bit internal display pipeline (hardware support for 12-bit scanout on supported panels, applications, and connection)
- NVIDIA 3D Vision technology, 3D DLP, Interleaved, and other 3D stereo format support
- Full OpenGL quad buffered stereo support
- Underscan/overscan compensation and hardware scaling
- NVIDIA NVIEW multi-display technology
- Support for NVIDIA MOSAIC
DISPLAYPORT AND HDMI DIGITAL AUDIO
- Support for the following audio modes: Dolby Digital (AC3), DTS 5.1, Multi-channel (7.1) LPCM, Dolby Digital Plus (DD+), and MPEG-2/MPEG-4 AAC
- Data rates of 44.1 KHz, 48 KHz, 88.2 KHz, 96 KHz, 176 KHz, and 192 KHz
- Word sizes of 16-bit, 20-bit, and 24-bit
SPECIFICATIONS AND SOLUTIONS TAB
| CUDA Cores | 384 |
| Peak Single Precision FP32 Performance | 1.195 TFLOPS |
| GPU Memory | 2 GB GDDR5 |
| Memory Interface | 128-bit |
| Memory Bandwidth | 64 GB/s |
| System Interface | PCI Express 3.0 x16 |
| Maximum Power Consumption | 40 W |
| Energy Star Enabling | Yes |
| Thermal Solution | Ultra-quiet active fansink |
| Form Factor | 2.713” H x 5.70” L, Single Slot |
| Display Connectors | mDP 1.4 (4) |
| DisplayPort with Audio | Yes |
| DVI-D Single-Link Connector | Via optional adapters |
| HDMI Support | Via optional adapters |
| VGA Support | Via optional adapters |
| Number of Displays Supported | 4 |
| Maximum DP 1.4 Resolution | HDR 5120 x 2880 at 60Hz (30-bit color) |
| 5K Display Support | HDR 5120 x 2880 at 60Hz (30-bit color) |
| 4K Display Support | HDR 4096 x 2160 at 60Hz or 3840 x 2160 at 60Hz |
| Maximum DVI-D DL Resolution | 2560 x 1600 at 60Hz via 3rd party adapter |
| Maximum DVI-D SL Resolution | 1920 x 1200 at 60Hz via optional adapter |
| HDCP Support | Yes |
| Graphics APIs | Shader Model 5.1, OpenGL 4.5, DirectX 12.0, Vulkan 1.0 |
| Compute APIs | CUDA, DirectCompute, OpenCL |
| NVIEW | Yes |
| NVIDIA MOSAIC | Yes (Windows 10, 8.1, 8, 7, and Linux) |
