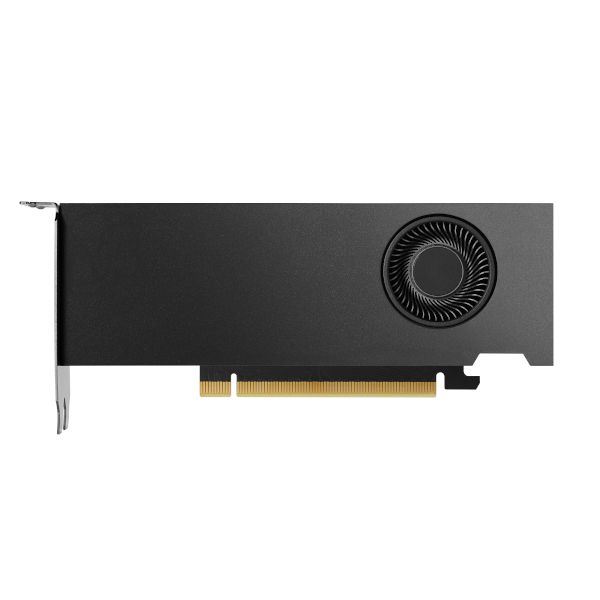

SL-VIDEO-PNY-RTX4000-ADA-LP
NVIDIA Quadro RTX 4000 Ada 20GB GDDR6 with ECC, PCIe 4.0 x16 - Support Low Profile
NVIDIA Ada Lovelace Architecture
CUDA Cores
Third Generation RT Cores
Fourth Generation Tensor Cores
PCIe Gen 4
Higher Speed GDDR6 Memory
Error Correcting Code (ECC) on Graphics Memory
Fifth Generation NVDEC Engine
Eighth Generation NVENC Engine
Graphics Preemption
Compute Preemption
Architecture - NVIDIA Ada Lovelace Architecture
Process Size - 4nm NVIDIA Custom Process | TSMC
Die Size - 294.5 mm2
Transistors - 35.8 Billion
CUDA Cores - 6144
Tensor Cores - 192 | Gen 4
RT Cores - 48 | Gen 3
FP32 Performance1 - 19.2 TFLOPS
Tensor Performance1 - 306.8 TFLOPS2
RT Core Performance1 - 44.3 TFLOPS
GPU Memory - 20 GB GDDR6 ECC
Memory Interface - 160-bit
Memory Bandwidth - 320 GB/s

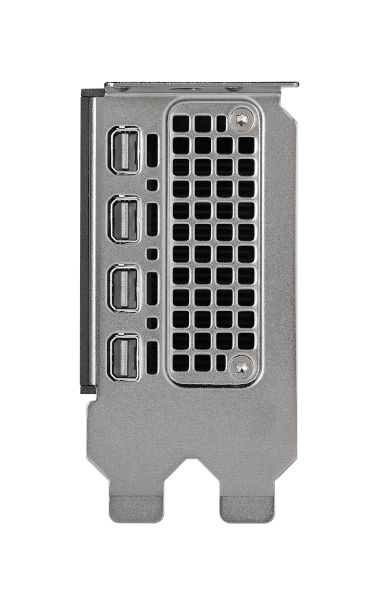

Display Connectors - mDP 1.4a (4)3
Graphics Bus - PCI Express 4.0 x16
Form Factor - 2.7” H x 6.6”L | Low Profile Dual Slot
Thermal Solution - Active Fansink
AR/MR/VR/XR Capable - Yes
NVIDIA 3D Vision and 3D Vision Pro - Support via Optional 3-pin mini-DIN
Frame Lock - Compatible with NVIDIA Quadro Sync II
Maximum Power Consumption - 70W | No Auxiliary Power Required
NVENC | NVDEC - 2x | 2x | Includes AV1 encode and Decode
